Festo 18200 Valve Terminals With 8 Valves
New
In stock2 unitsReady to ship
Valve Terminals With 8 Valves
The FESTO CPV-10-VI is a valve terminal system with 8 electromagnetically actuated piston spool valves. It provides high performance with a 400 l/m flow rate, 24 VDC operation, and a wide range of pneumatic connections for industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

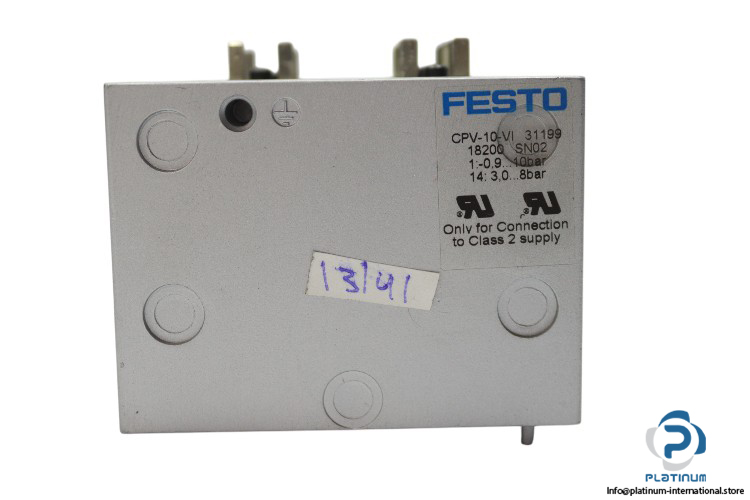

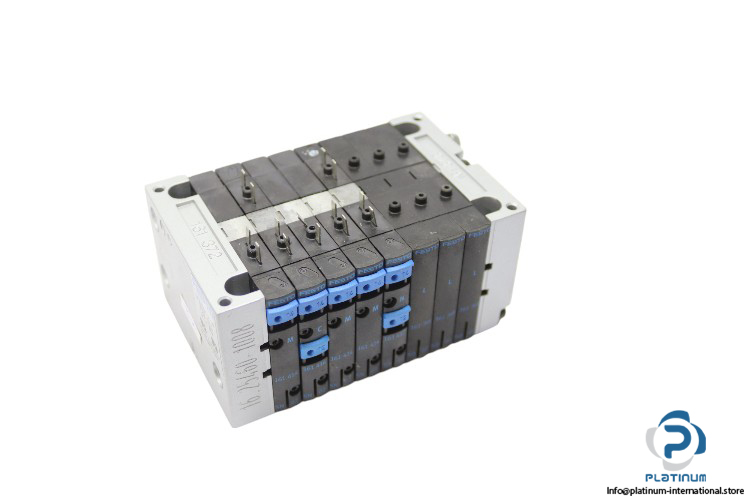

FESTO CPV-10-VI Valve Terminals With 8 Valves
The FESTO CPV-10-VI is a high-performance valve terminal system equipped with 8 electromagnetically actuated piston spool valves for precise control in industrial automation systems. It is designed to handle multiple valve functions with different air solenoid valve models, ensuring efficient air distribution and optimized performance in pneumatic systems.
Manufacturer: FESTO
Type: Valve Terminals With 8 Valves
Model: CPV-10-VI
Part No.: 18200
Technical Data:
- Design: Electromagnetically Actuated Piston Spool Valve

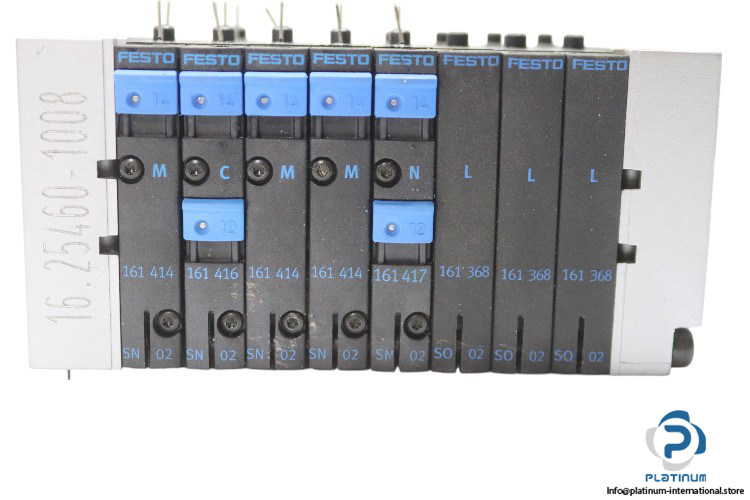

- Valve Functions:
- 3x Air Solenoid Valve (FESTO 161368)
- 1x Air Solenoid Valve (FESTO 161416)
- 3x Air Solenoid Valve (FESTO 161414)
- 1x Air Solenoid Valve (FESTO 161417)
- Width: 10 mm
- Nominal Flow Rate without Fitting: 400 l/m
- Pneumatic Connections:
- Supply ports (1/11): G1/8
- Exhaust ports (3/5): G3/8
- Working ports (2/4): M7
- Pilot air supply ports (12/14): M5
- Pilot Exhaust Air Ports (82/84): M5
- Operating Pressure:
- Port (1): -0.9 / . 10 bar
- Port (2): 3 / . 8 bar
- Ambient Temperature: -5 / . +50 °C
- Operating Voltage: 24 VDC
