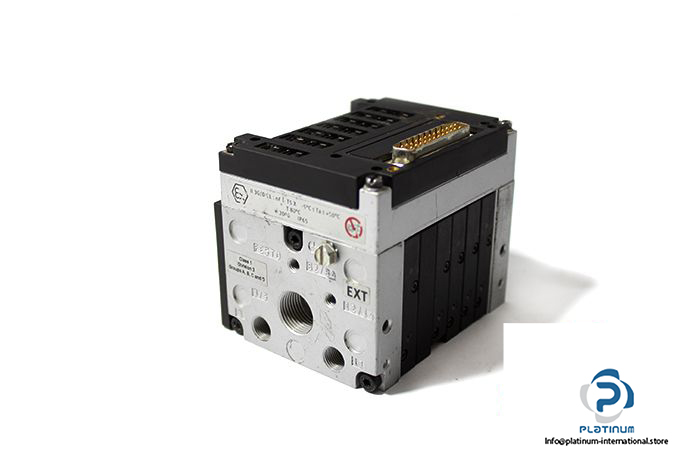

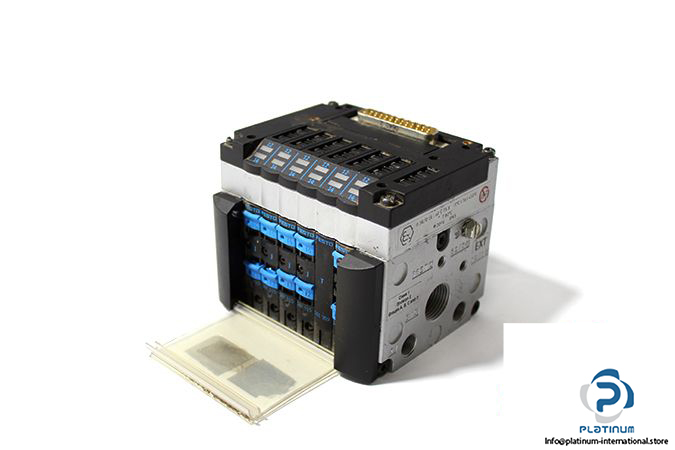

Festo 18200 Valve Terminals With 6 Valves

Name: FESTO 18200 VALVE TERMINALS WITH 6 VALVES
SKU: 972460
Availability: LimitedAvailability

festo-18200-valve-terminals-with-6-valves-5

festo-18200-valve-terminals-with-6-valves-3

festo-18200-valve-terminals-with-6-valves-2

festo-18200-valve-terminals-with-6-valves-4

festo-18200-valve-terminals-with-6-valves-1-2

Used

Available on request

SKU

972460

Category

Pneumatic Valves

Condition

Used

6 CPV functions Pneumatic Terminals Valve valves

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FESTO

Type: Valve Terminals with 6 Valves

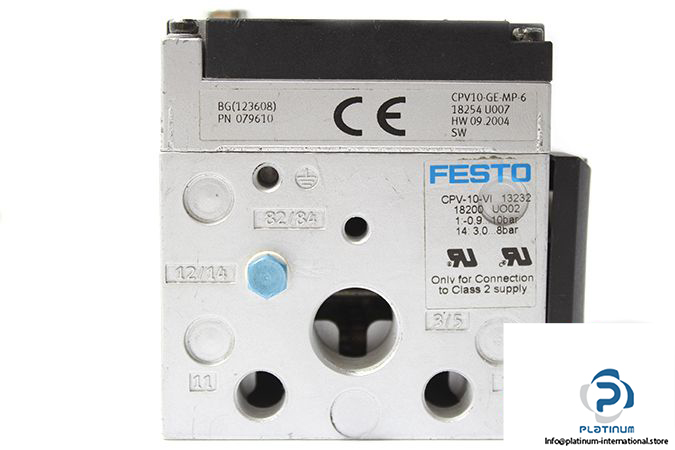

Model: CPV-10-VI

Part No.: 18200

Design: Electromagnetically Actuated Piston Spool Valve

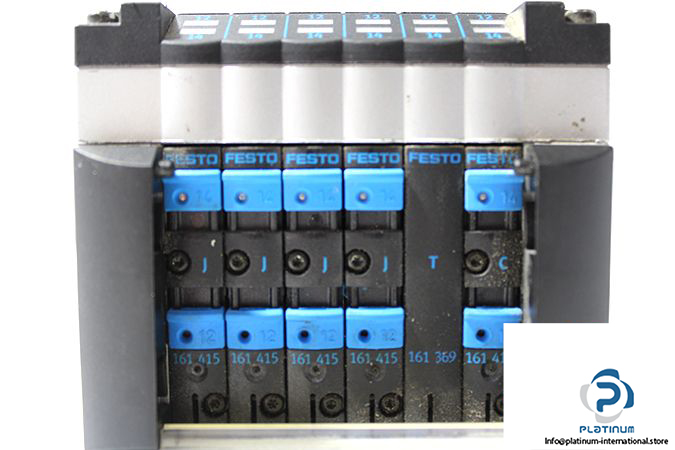

Valve functions:

4x 5/2 Air solenoid valve (FESTO 161415)

1x Separator plate (FESTO 161369)

1x 3/2 Air solenoid valve (FESTO 161416)

Width: 10 mm

Nominal Flow Rate without Fitting: 400 l/m

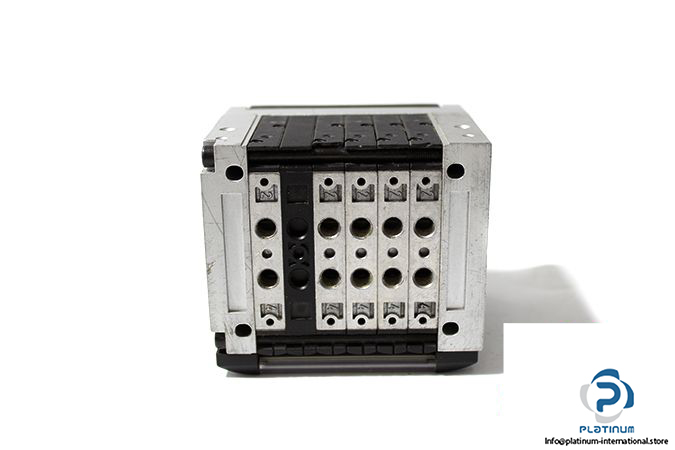

Pneumatic Connections:

Supply ports (1/11): G1/8

Exhaust ports (3/5): G3/8

Working ports (2/4): M7

Pilot air supply ports (12/14): M5

Pilot Exhaust Air Ports (82/84): M5

Operating Pressure:

Port (1): -0.9 …. 10 bar

Port (2): 3 …. 8 bar

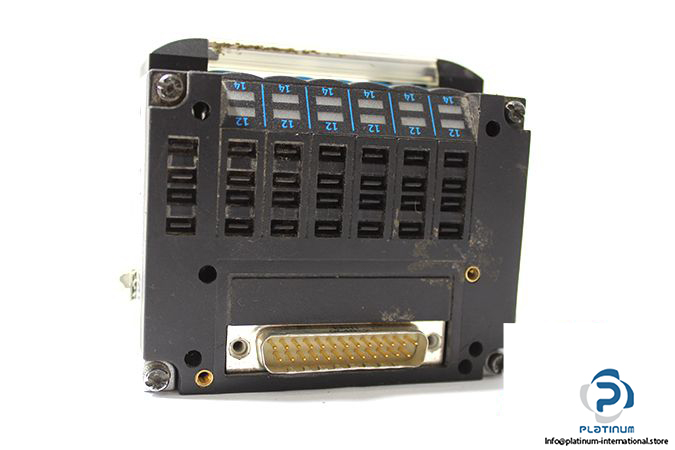

Electrical Connection: 25 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating Voltage: 24 VDC

Weight: 0.70 kg
