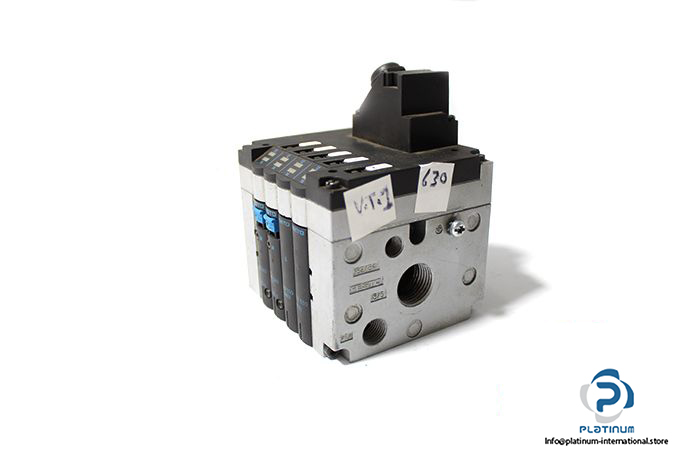

Festo 18210 Valve Terminals With 4 Valves
Used
Available on request
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: FESTO
Type: Valve Terminals With 4 Valves

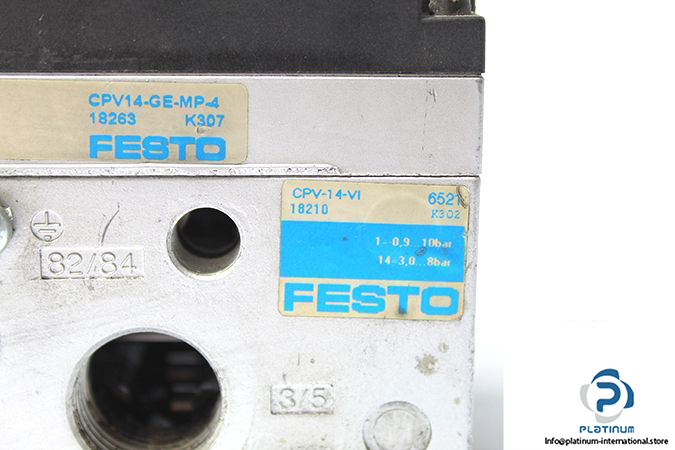

Model: CPV-14-VI
Part No.: 18210
Design: Electromagnetically Actuated Piston Spool Valve

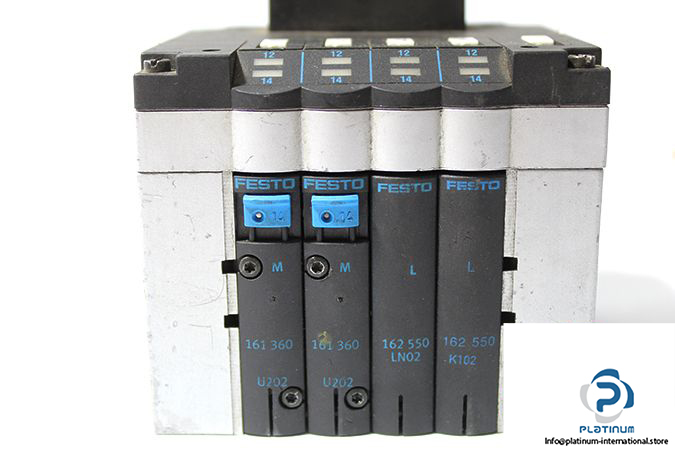

Valve functions:
2x 5/2 Air solenoid valve (FESTO 161360)
2x Separator plate (FESTO 162550)
Width: 14 mm
Nominal Flow Rate without Fitting: 800 l/m
Pneumatic Connections:
Supply ports (1/11): G1/4
Exhaust port (3/5): G1/2

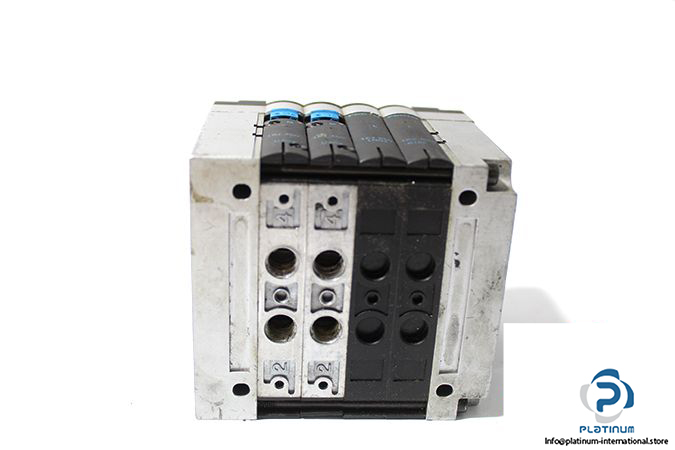

Working ports (2/4): G1/8
Pilot air supply ports (12/14): M7
Pilot Exhaust Air Ports (82/84): M7
Operating pressure:
Port (1): -0.9 …. 10 bar
Port (14): 3 …. 8 bar

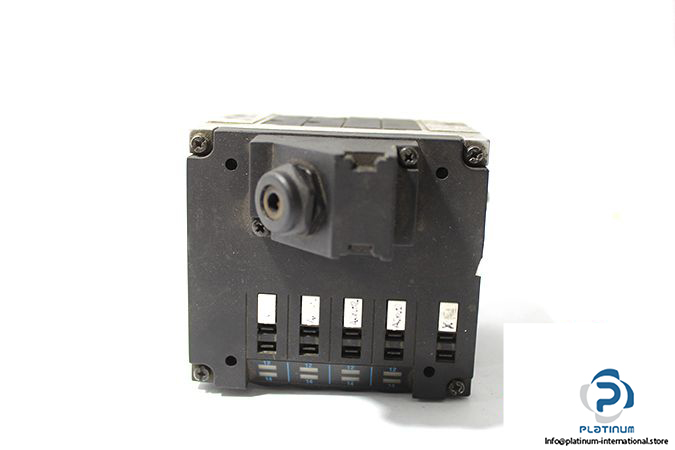

Electrical connection: 9 pin-plug
Ambient Temperature: -5 …. +50 °C
Operating voltage: 24 VDC
Weight: 0.82 kg
