Festo 18210 Valve Terminals With 6 Valves
Used
Available on request
Valve Terminal
FESTO CPV14-VI valve terminal with 6 integrated solenoid valves, 24 VDC operation, and 800 l/m flow rate, designed for compact and efficient pneumatic automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

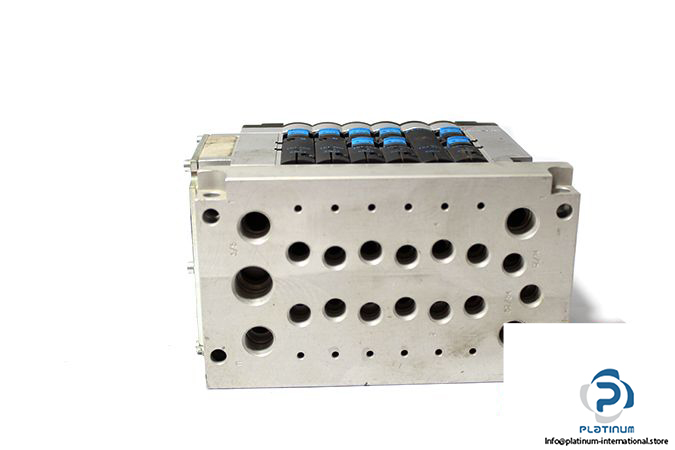

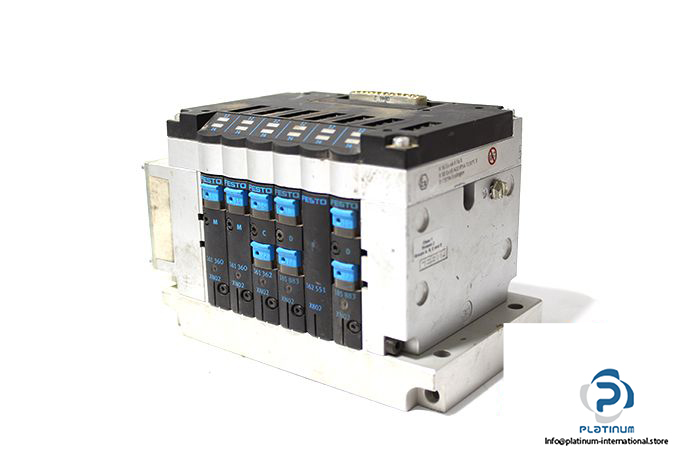

FESTO CPV14-VI Valve Terminal
The FESTO CPV14-VI is a compact valve terminal system equipped with multiple integrated solenoid valves, designed for efficient pneumatic control in industrial automation applications. It features electromagnetically actuated piston spool valves and supports flexible configuration for various control functions.
Manufacturer: FESTO
Type: Valve Terminals With 6 Valves
Model: CPV14-VI
Part No.: 18210
Design: Electromagnetically Actuated Piston Spool Valve

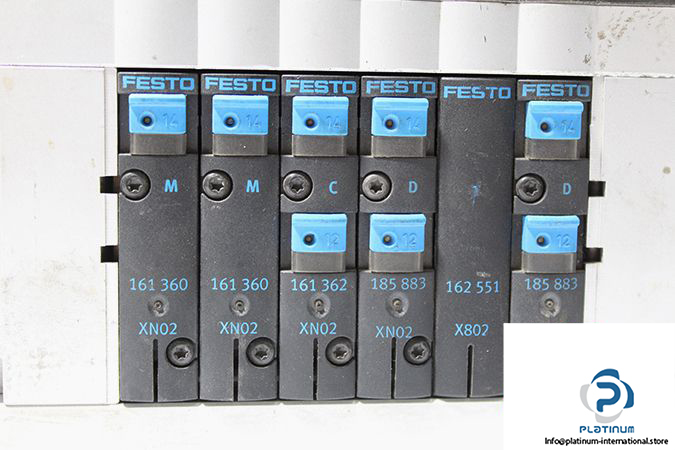

Valve Functions:
2x 5/2 Air Solenoid Valve (FESTO 161360)
1x Separator Plate (FESTO 162551)
1x 3/2 Air Solenoid Valve (FESTO 161362)
2x 2/2 Air Solenoid Valve (FESTO 185883)
Pneumatic Connections:
Operating Pressure:
| Width | 14 mm |
| Nominal Flow Rate Without Fitting | 800 l/m |
| Supply Ports (1/11) | G1/4 |
| Exhaust Port (3/5) | G3/8 |
| Working Ports (2/4) | G1/8 |
| Pilot Air Supply Ports (12/14) | 1/8 |
| Pilot Exhaust Air Ports (82/84) | 1/8 |

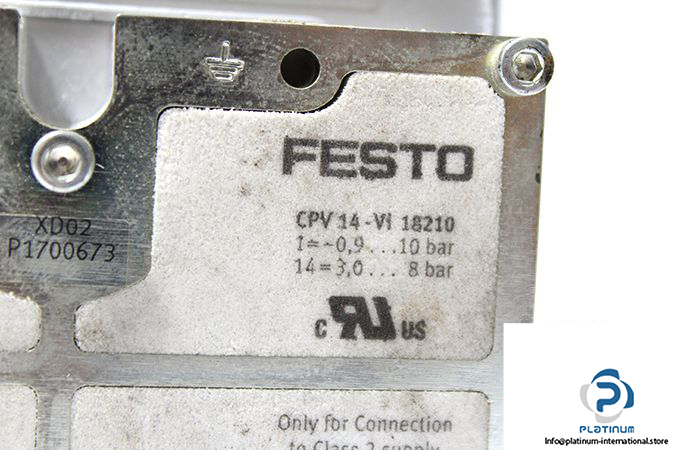

| Port (1) | -0.9 / . 10 bar |
| Port (14) | 3 / . 8 bar |
| Electrical Connection | 25 Pin-Plug |
| Operating Voltage | 24 VDC |
| Ambient Temperature | -5 / . +50 °C |
