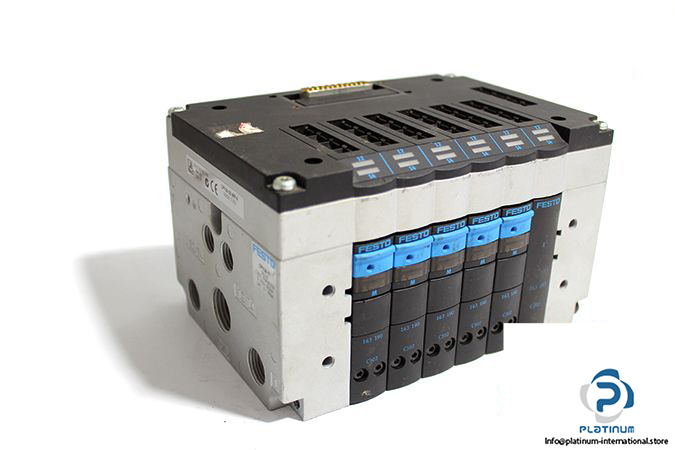

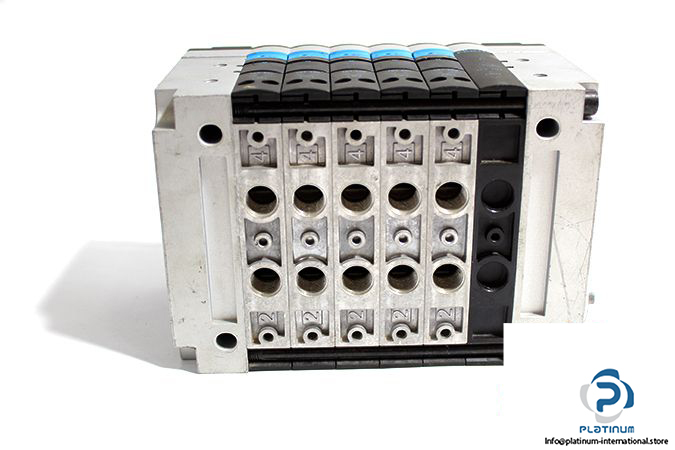

Festo 18220 Valve Terminals With 6 Valves

Name: FESTO 18220 VALVE TERMINALS WITH 6 VALVES
SKU: 973146
Availability: LimitedAvailability

festo-18220-valve-terminals-with-6-valvesfesto-18220-valve-terminals-with-6-valves

festo-18220-valve-terminals-with-6-valves-4-2

festo-18220-valve-terminals-with-6-valves-2-2

festo-18220-valve-terminals-with-6-valves-3-2

festo-18220-valve-terminals-with-6-valves-1-2

New

Available on request

SKU

973146

Category

Pneumatic Valves

Condition

New

6 CPV functions Pneumatic Terminals Valve valves

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FESTO

Type: Valve Terminals With 6 Valves

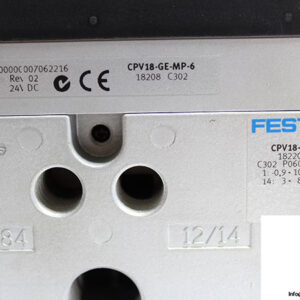

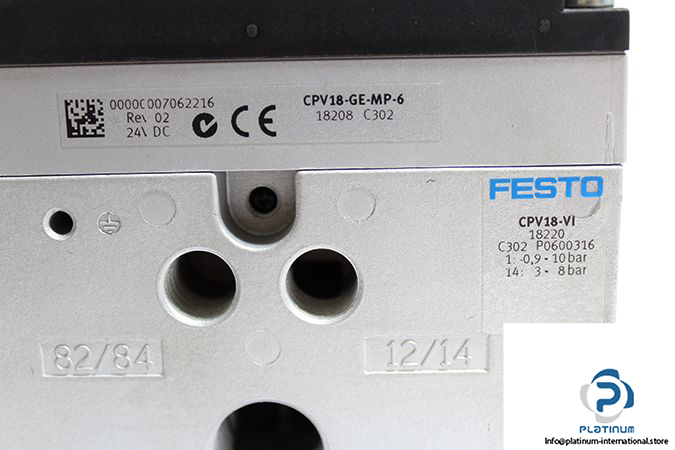

Model: CPV18-VI

Part No.: 18220

Design: Electromagnetically Actuated Piston Spool Valve

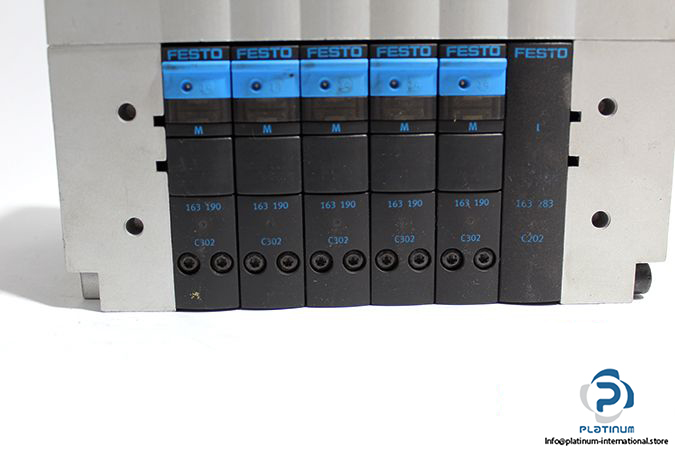

Valve functions:

5x 5/2 Air solenoid valve (FESTO 163190)

1x Blanking plate (FESTO 163283)

Width: 18 mm

Nominal Flow Rate without Fitting: 1600 l/m

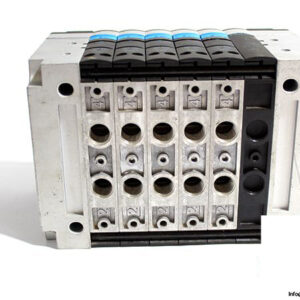

Pneumatic Connections:

Supply ports (1/11): G3/8

Exhaust port (3/5): G1/2

Working ports (2/4): G1/8

Pilot air supply ports (12/14): G1/4

Pilot Exhaust Air Port (82/84): G1/4

Operating pressure:

Port (1): -0.9 …. 10 bar

Port (14): 3 …. 8 bar

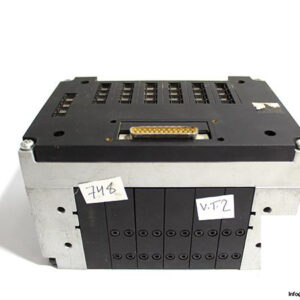

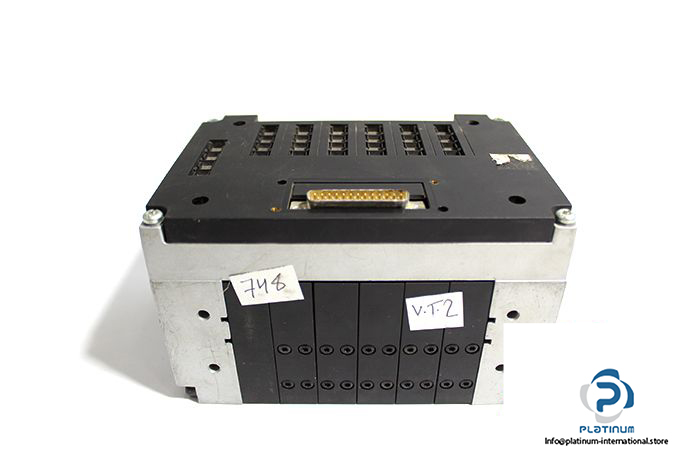

Electrical connection: 25 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 24 VDC

Weight: 2.6 kg
