Festo 185732 Service Unit Combination
New
In stock1 unitReady to ship
SERVICE UNIT COMBINATION
FESTO LFR-1/8-D-MINI-KC-A service unit with filter regulator, shut-off valve, and pressure gauge for compressed air systems, includes HE-D-MINI and LFR-D-MINI-A attachments.AirCompressedFestofilterHE-D-MiniLFR-1/8-D-MINI-KC-ALFR-D-Mini-AMiniOffPneumaticPreparationregulatorServiceShutSizeUnitValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

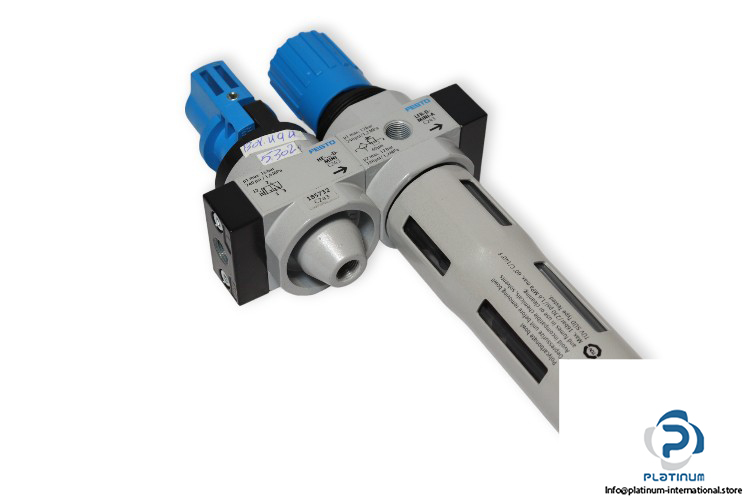

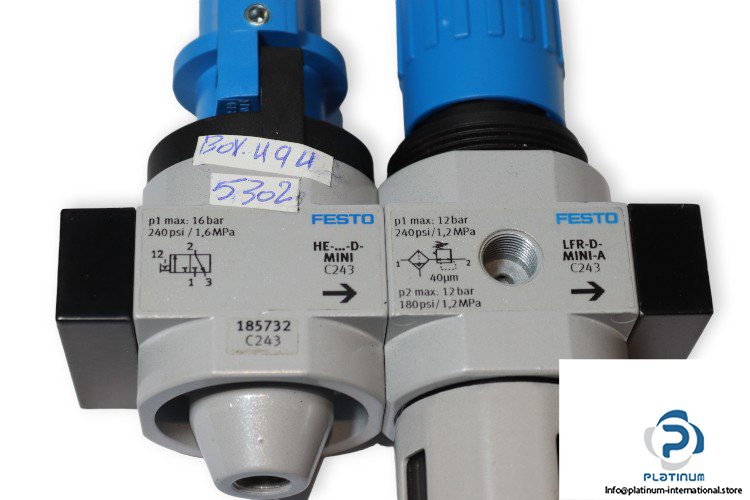

FESTO LFR-1/8-D-MINI-KC-A SERVICE UNIT COMBINATION
The FESTO LFR-1/8-D-MINI-KC-A is a compact service unit combination designed for efficient compressed air treatment in pneumatic systems. This unit integrates shut-off valve, filter regulator, and pressure gauge to deliver precise pressure control and automatic condensate drainage.
Manufacturer: FESTO
Type: Service Unit Combination
Model: LFR-1/8-D-MINI-KC-A
Part No.: 185732
| Size | MINI |
| Media | Compressed Air |
| Structural Design | Shut Off Valve, Filter Regulator with Pressure Gauge |
| Actuator Lock | Rotary Knob with Detent |
| Pressure Range | 0.25 / 12 bar |
| Standard Nominal Flow Rate | 750 l/min |
| Grade of Filtration | 40 micron |
| Connection | G1/8 |
| Condensate Drain | Fully Automatic |
| Condensate Volume Max. | 22 ml |
| Attachment | FESTO HE-D-MINI SHUT OFF VALVE |
| Size | MINI |
| Fluid | Compressed Air |
| Design | Piston Gate Valve |
| Function | 3/2 Double Solenoid |
| Type of Actuation | Manually |
| Operating Pressure | 0 / 16 bar |
| Pneumatic Connection | G1/8 |
| Material | Die-Cast Aluminium |
| Ambient Temperature | -10 / 60 °C |
| Attachment | FESTO LFR-D-MINI-A BASIC VALVE |
| Size | MINI |
| Operation Pressure Max. | 12 bar |
| Filtration Grade | 40 micron |
