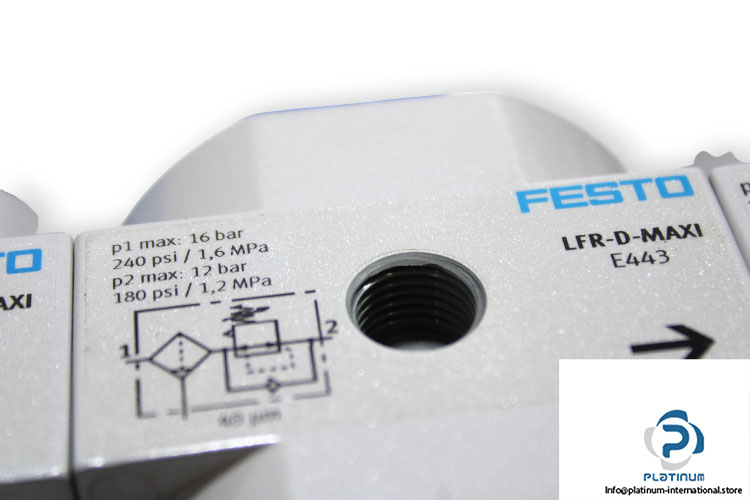

Festo 186049 AIR Preparation Unit

Manufacturer: FESTO

Type: Air preparation unit

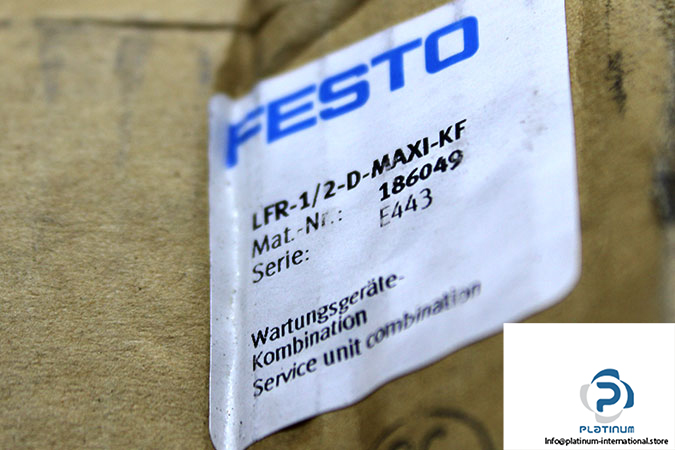

Model: LFR-1/2-D-MAXI-KF

Part No.: 186049



Size: Maxi

Actuator lock: Rotary knob with detent

Mounting position: Vertical +/- 5°

Grade of filtration: 40 µm

Condensate drain: Manually rotating

Max. condensate volume: 80 ml

Bowl guard: Metal bowl guard

Pressure gauge: with pressure gauge

Operating pressure: 1 bar … 16 bar

Standard nominal flow rate: 8000 l/min

Operating medium: Compressed air

Ambient temperature: -10 °C … 60 °C

Pneumatic connection 1: G1/2

Pneumatic connection 2: G1/2

Housing material: Die-cast zinc
