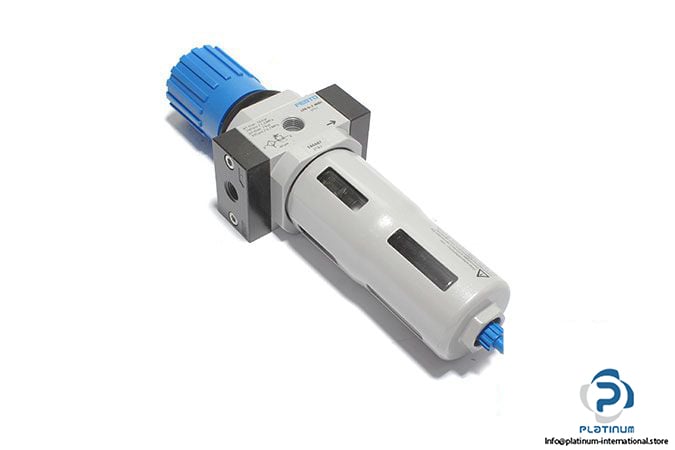

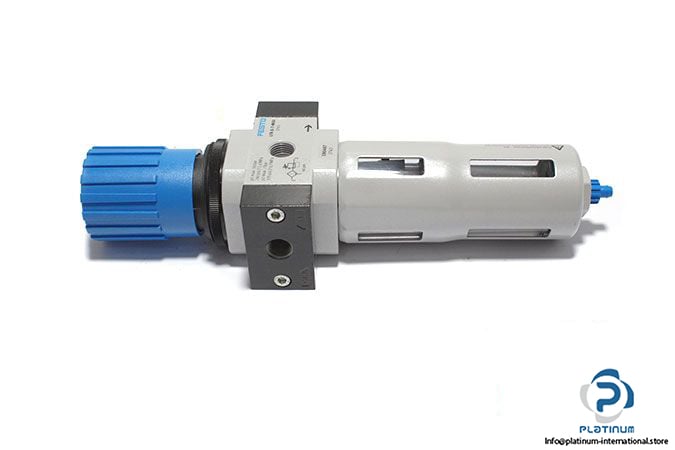

Festo 186487 Filter Regulator

Manufacturer: FESTO

Type: Filter Regulator

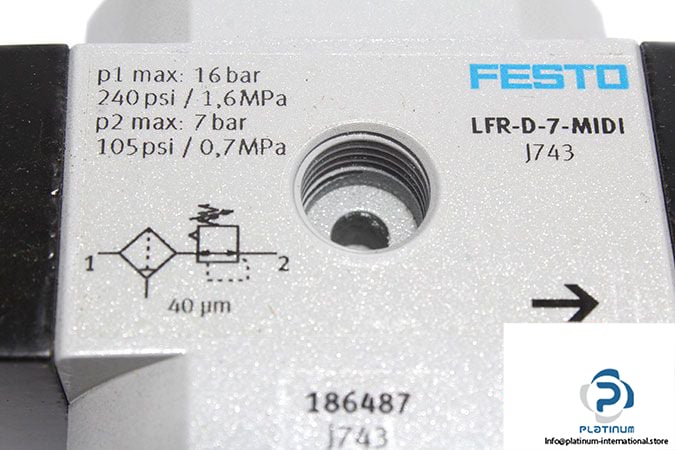

Model: LFR-D-7-MIDI

Part No.: 186487

Size: Midi

Materials

Body: die-cast zinc Z410

Grade of filtration: 40 µm

Condensate drain: Manually rotating

Max. condensate volume: 43 ml

Operating pressure: 1 bar … 16 bar

Pressure regulation range: 0.5 bar … 7 bar

Standard nominal flow rate: 2100 l/min

Media: Compressed air, neutral gases

Pneumatic connection 1: G1/4

Pneumatic connection 2: G1/4

Temperature: -10°C … 60°C

Weight: 900 g
