Festo 187334 A972 Proportional Pressure Control Valve
Used
In stock1 unitReady to ship
511,11$
PROPORTIONAL PRESSURE REGULATOR
FESTO MPPES-3-1/4-10-420 regulator with MAGNET-SCHULTZ solenoid coil enables precise pneumatic pressure control up to 10 bar with IP65 protection.coilControlFestoG1/4IP65Magnet-SchultzMPPES-3-1/4-10-420NG35PneumaticPressureProportionalregulatorsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

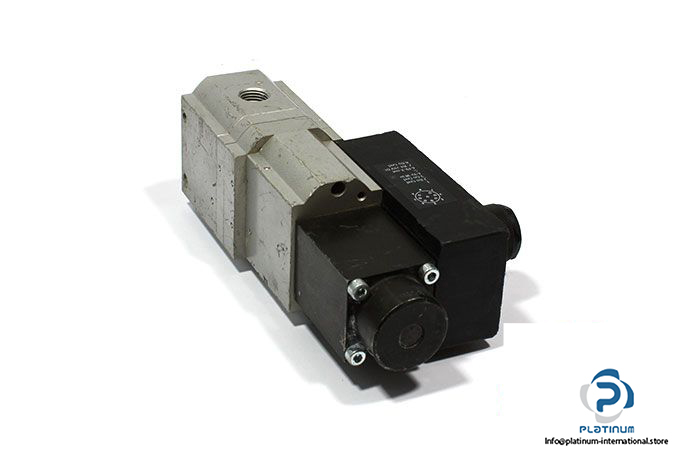

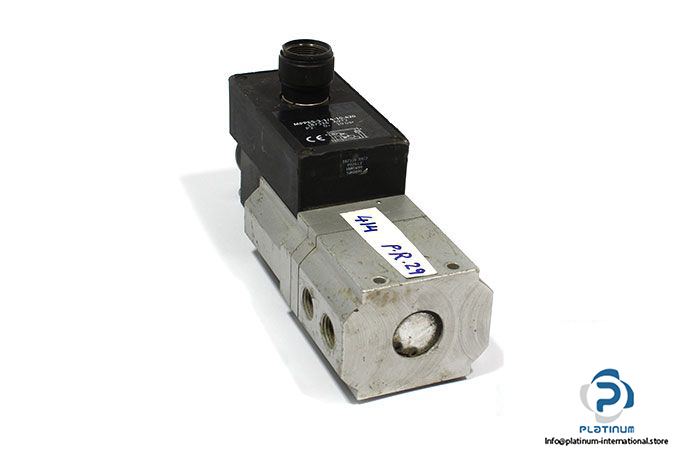

FESTO MPPES-3-1/4-10-420 PROPORTIONAL PRESSURE REGULATOR WITH SOLENOID COIL
The FESTO MPPES-3-1/4-10-420 is a high-performance proportional pressure regulator designed for accurate pneumatic pressure control. Featuring pilot-controlled piston valve design and paired with a MAGNET-SCHULTZ proportional solenoid coil, it ensures stable and precise regulation across a wide pressure range.
Manufacturer: FESTO
Type: Proportional Pressure Regulator

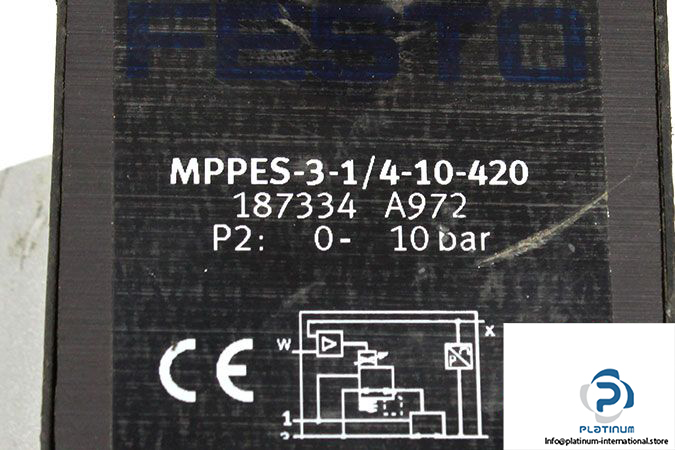

Model: MPPES-3-1/4-10-420
Part No.: 187334
Solenoid Coil Technical Information
| Structural Design | Pilot-Controlled Piston Control Valve |
| Valve Function | 3-Way Proportional Pressure Control Valve Closed |
| Actuation Type | Electrically |
| Operating Pressure | 12 bar |
| Pressure Regulation Range | 0 / 10 bar |
| Operating Voltage | 24 V DC |

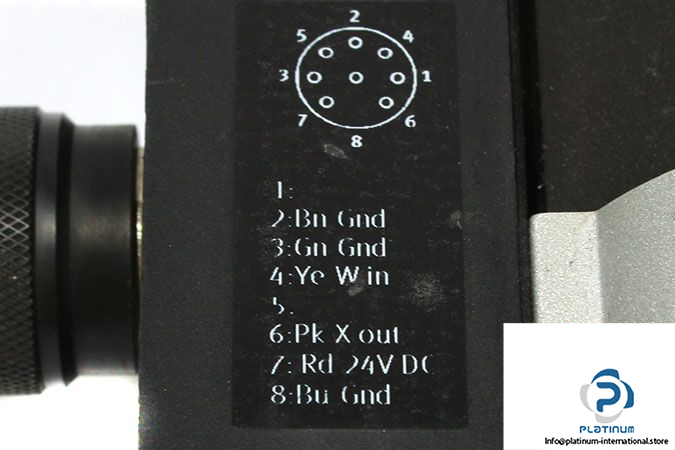

| Electrical Connection | 8-Pin M16x0.75 Plug |
| Pneumatic Connection | G1/4 |
| Housing Material | Wrought Aluminum Alloy |
| Diaphragm Material | NBR |
| Mechanical Protection Class | IP65 |
| Ambient Temperature | 0 / 50°C |

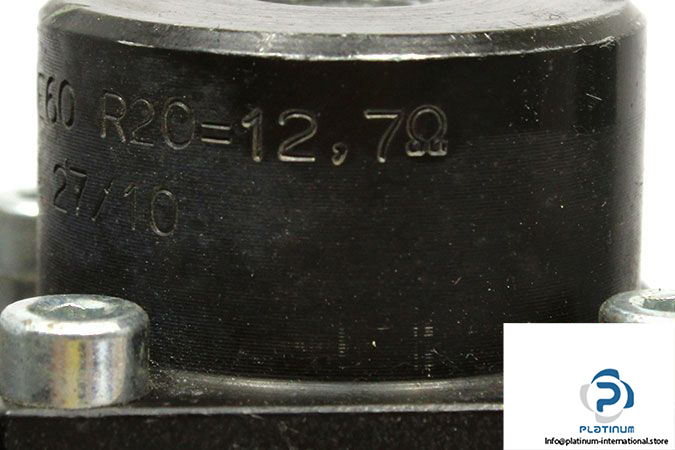

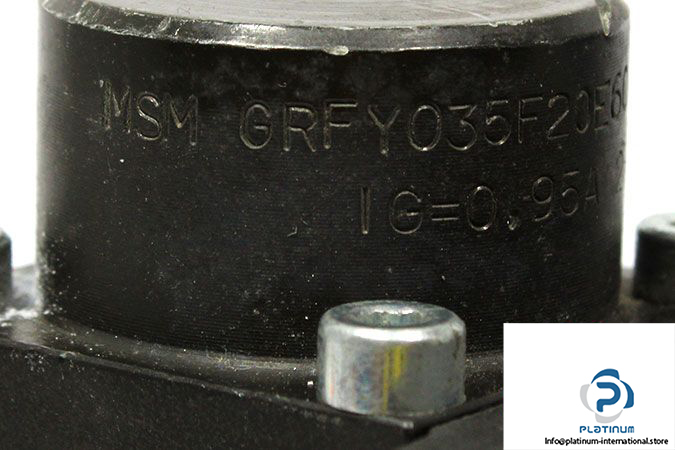

| Attachment | MAGNET-SCHULTZ Proportional Solenoid Coil |
| Size | NG 35 |
| Supply Voltage | 18 V DC |

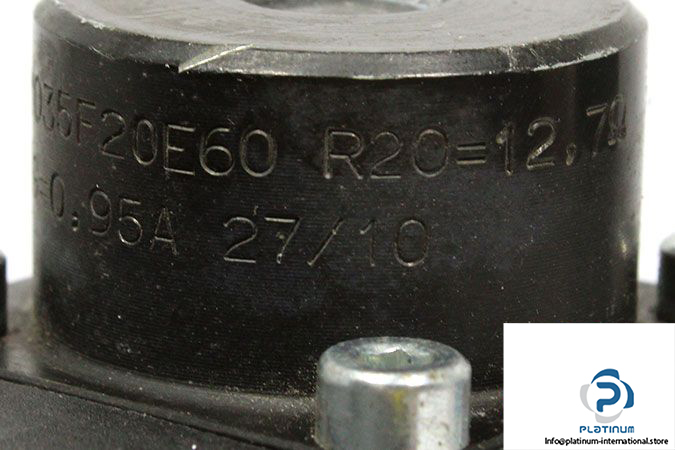

| Rated Current Max. | 0.95 A |
