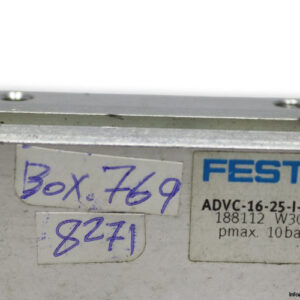

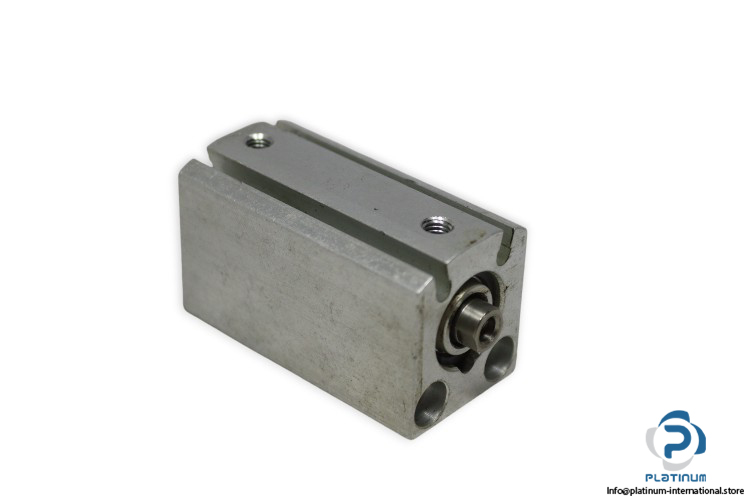

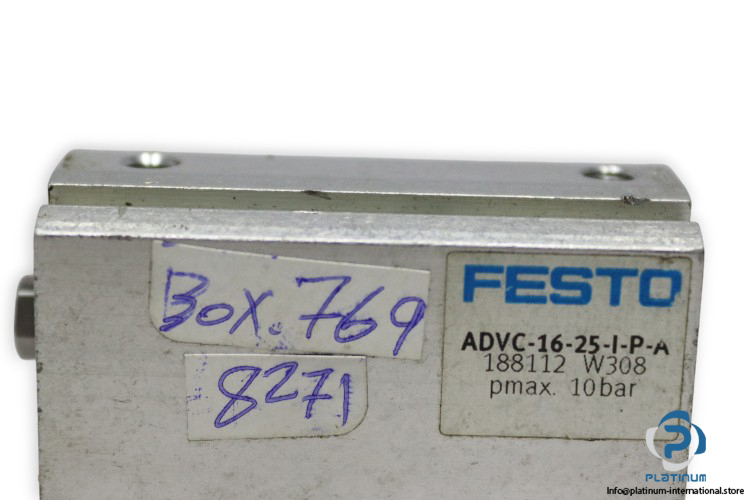

Festo 188112 Short-Stroke Cylinder

Manufacturer: FESTO
Type: Short-stroke cylinder
Model: ADVC-16-25-I-P-A
Part No.: 188 112

Stroke Length: 25 mm
Piston Diameter: 16 mm
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Pneumatic Connection: 5 mm
Theoretical force at 6 bar, retracting: 90 N
Theoretical force at 6 bar, advancing: 121 N
Moving mass: 23 g
Housing material: Wrought aluminum alloy
Temperature: -20 … 80 °C
