Festo 188576 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
The FESTO DSEU-25-80-P-A round cylinder with 80 mm stroke and 25 mm piston diameter offers reliable double acting performance, 1.5 to 10 bar operating pressure, and aluminum construction for industrial automation use.2580ActingActuatorAluminumAutomationComponentCylinderDoubleDSEU-25-80-P-AFestoIndustrialmmPistonPneumaticRoundStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

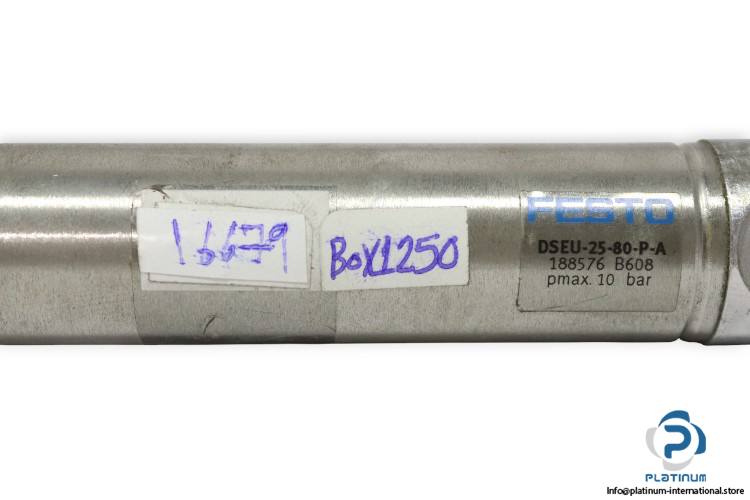

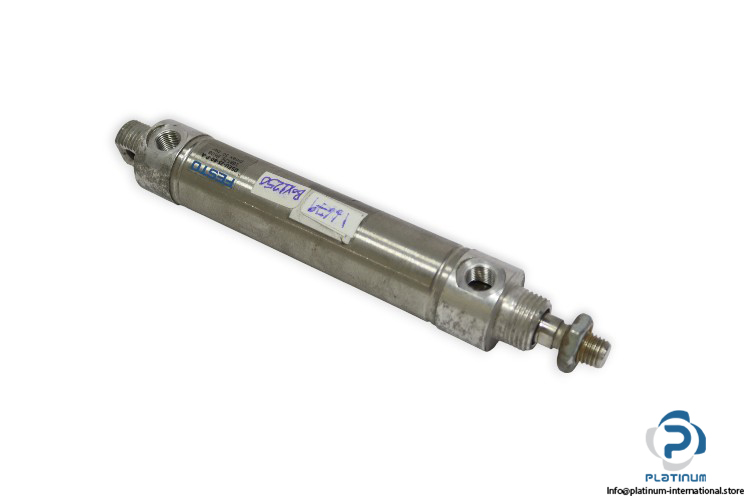

FESTO DSEU-25-80-P-A Round Cylinder
The FESTO DSEU-25-80-P-A Round Cylinder is a high-quality pneumatic actuator engineered for efficient linear motion control. Built from durable aluminum materials, it ensures reliable performance and precision in industrial automation applications.
Manufacturer: FESTO
Type: Round Cylinder
Model: DSEU-25-80-P-A
Part Number: 188 576
| Stroke | 80 mm |
| Piston Diameter | 25 mm |
| Cushioning | Flexible cushioning rings or plates at both ends |
| Assembly Position | Any |
| Design Structure | Piston, Piston rod, Cylinder barrel |
| Position Detection | For proximity sensor |
| Variants | Single ended piston rod |
| Operating Pressure | 1.5 to 10 bar |
| Mode of Operation | Double acting |
| Operating Medium | Dried compressed air, lubricated or unlubricated |
| Corrosion Resistance Classification | CRC 1 |
| Ambient Temperature | 0 to 80 degree Celsius |
| Theoretical Force at 6 bar, Return Stroke | 247 N |
| Theoretical Force at 6 bar, Advance Stroke | 295 N |
| Port Size | G1 by 8 |
| Material Information for Cover | Wrought Aluminium Alloy |
