Festo 188578 Round Cylinder
New
In stock1 unitReady to ship
Round Cylinder
The Festo DSEU-25-125-P-A round cylinder features a 25 mm bore and 125 mm stroke, offering smooth performance with flexible cushioning at both ends. Designed for compressed air systems, it operates in the range of 0 to 10 bar and suits both lubricated and unlubricated applications.12525ActingActuatorAirboreCompressedCushioningCylinderDoubleDSEU-25-125-P-AFestoFlexibleIndustrialmmPneumaticRoundStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

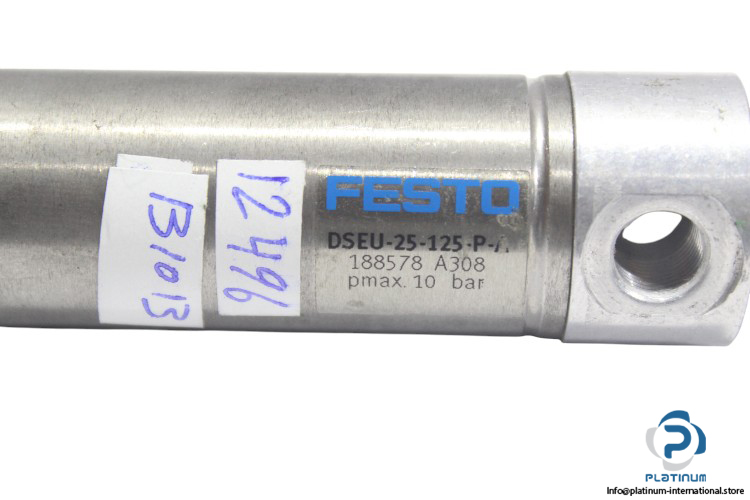

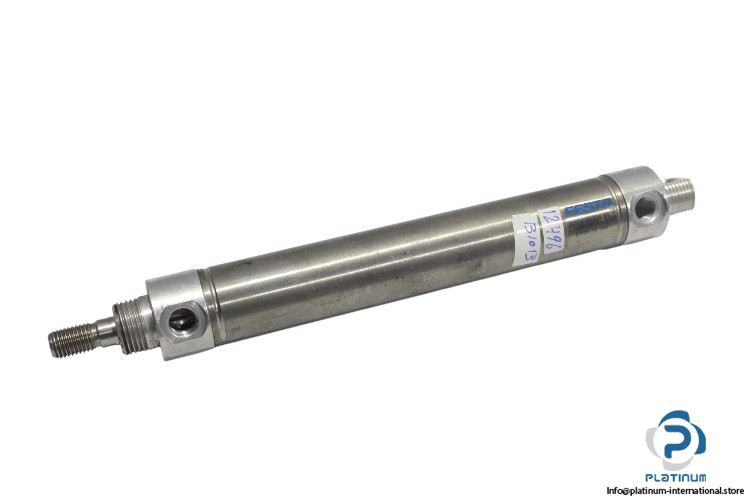

Festo DSEU-25-125-P-A “ Round Cylinder
The Festo DSEU-25-125-P-A round cylinder offers precise, reliable linear motion with a 25 mm bore and 125 mm stroke. Designed for high-performance applications, it features flexible cushioning rings at both ends for smooth operation in demanding environments. Built with durable materials, this cylinder supports both lubricated and unlubricated compressed air systems.
Manufacturer: Festo
Type: Round Cylinder
Model: DSEU-25-125-P-A
Part No.: 188578
| Bore Diameter | 25 mm |
| Stroke | 125 mm |
| Cushioning | Flexible cushioning rings/plates at both ends |
| Operating Medium | Dried compressed air, lubricated or unlubricated |
| Pneumatic Connection | G1/8 |
| Variants | Single-ended piston rod |
| Mode of Operation | Double acting |
| Operating Pressure | Max. 10 bar |
| Shape | Circular |
| Ambient Temperature | 0 to 80 °C |
| Materials for Cover | Wrought Aluminum alloy |
| Materials for Seals | TPE-U(PU) |
| Materials for Housing | High alloy steel, non-corrosive |
| Materials for Piston Rod | High alloy steel, non-corrosive |
