Festo 188593 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
The FESTO DSEU-40-25-P-A is a double-acting round cylinder with a 25 mm stroke and 40 mm piston diameter, providing precise and efficient pneumatic motion for industrial automation systems.2540ActingActuatorAutomationComponentsCylinderDoubleDseuDSEU-40-25-P-AFestoG1/4IndustrialmmPistonPneumaticPortRoundSeriesStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

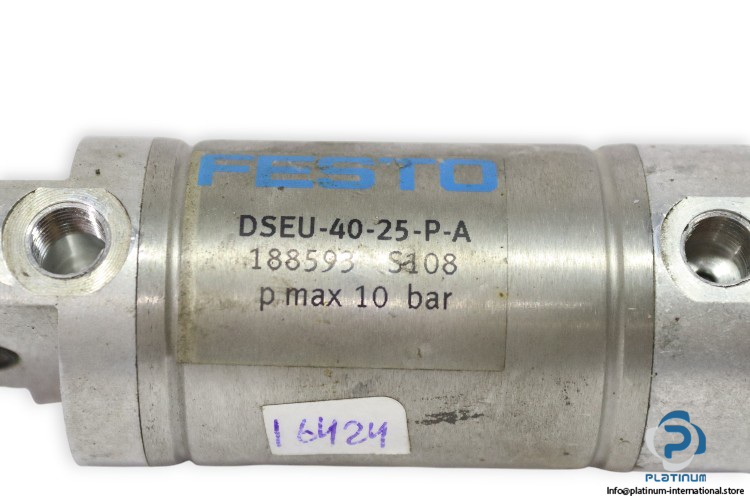

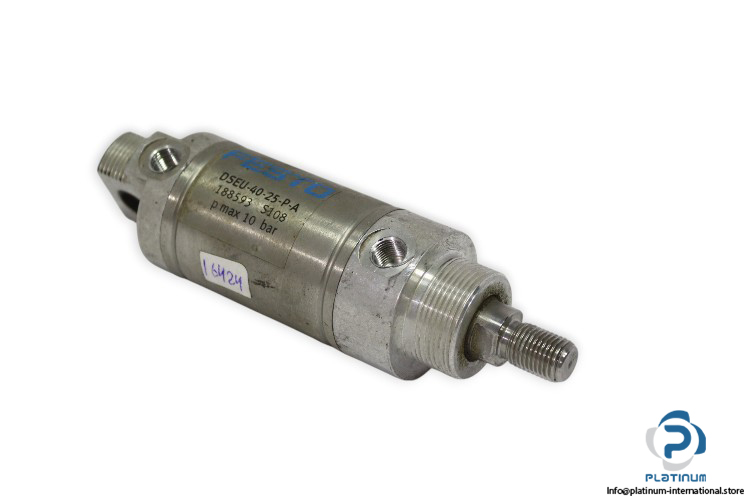

FESTO DSEU-40-25-P-A Round Cylinder
The FESTO DSEU-40-25-P-A Round Cylinder is a compact and efficient pneumatic actuator designed for precise linear motion. With a 25 mm stroke and 40 mm piston diameter, it ensures reliable performance in a wide range of industrial automation applications.
Manufacturer: FESTO
Type: Round Cylinder
Model: DSEU-40-25-P-A
Part No.: 188593
| Stroke | 25 mm |
| Piston Diameter | 40 mm |
| Cushioning | Flexible cushioning rings or plates at both ends |
| Assembly Position | Any |
| Design Structure | Piston, Piston rod, Cylinder barrel |
| Position Detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating Pressure | 1.5 to 10 bar |
| Mode of Operation | Double acting |
| Operating Medium | Dried compressed air, lubricated or unlubricated |
| Corrosion Resistance Classification (CRC) | 1 |
| Ambient Temperature | 0 to 80 °C |
| Theoretical Force at 6 bar (Return Stroke) | 633 N |
| Theoretical Force at 6 bar (Advance Stroke) | 754 N |
| Port Size | G1/4 |
| Material Information for Cover | Wrought Aluminium Alloy |
| Material Information for Seals | TPE-U (PU) |
| Material Information for Housing | High Alloy Steel, Non-Corrosive |
