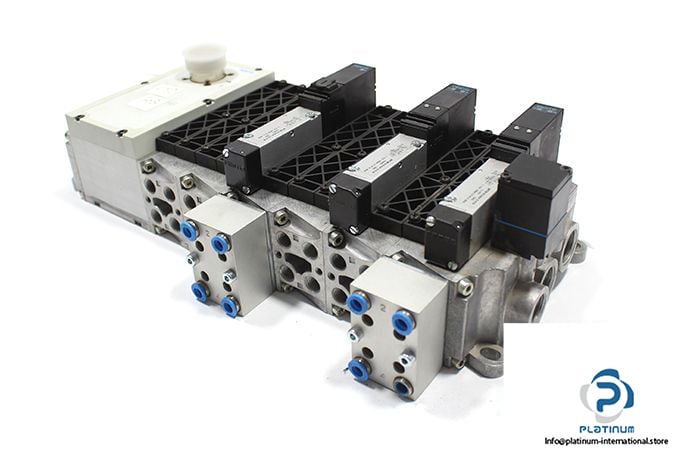

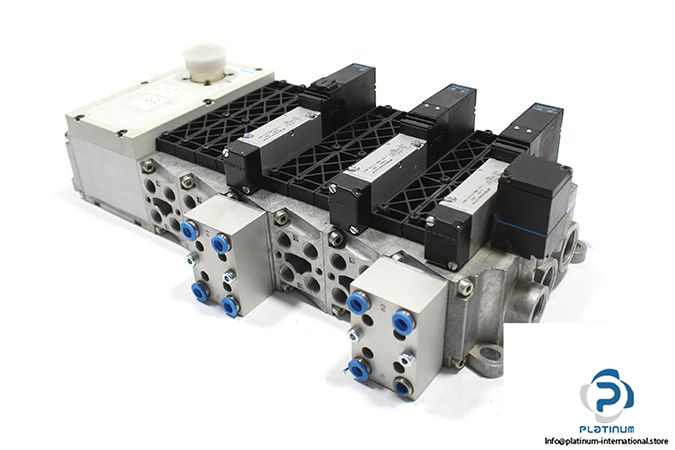

Festo 18970 Valve Terminals

Manufacturer: FESTO

Type: Valve Terminals

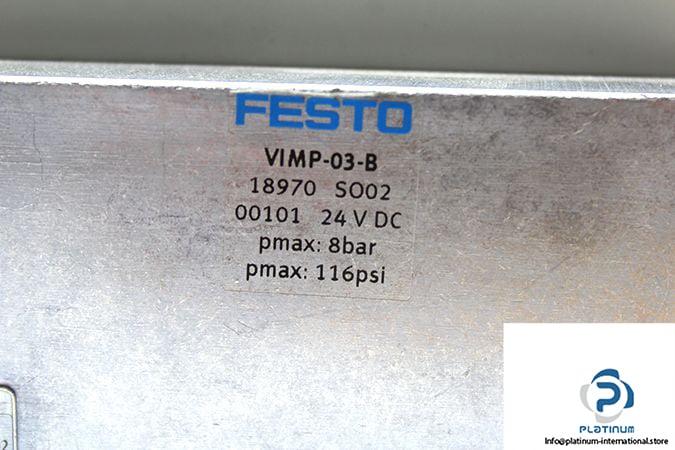

Model: VIMP-03-B

Part No.: 18970

Design: Electromagnetically Actuated Piston Spool Valve

Valve functions:

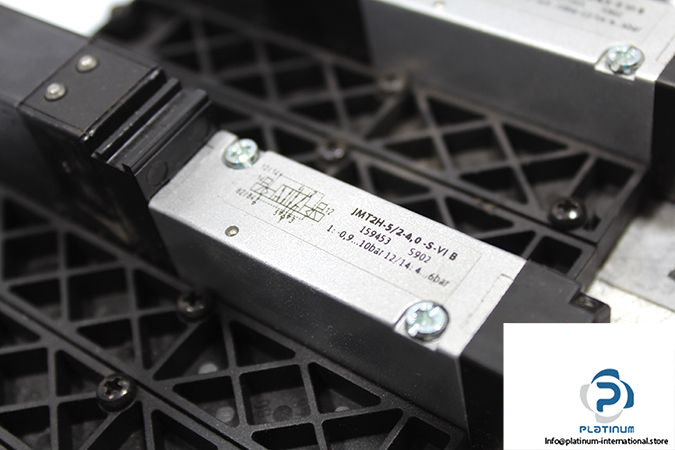

2x 5/2 solenoid valve (FESTO 159453)

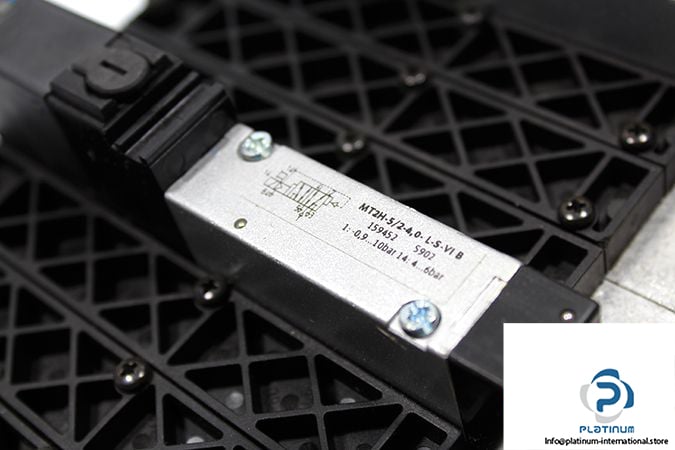

1x 5/2 solenoid valve (FESTO 159452)

4x Manifold block (FESTO 18652)

2x Manifold block (FESTO 18653)

2x One-way flow control valve (FESTO 164947)

Pneumatic Connections:

Supply port (1): G3/8

Exhaust port (3/5): G1/2

Working ports (2/4): G1/8 and 6 mm

Pilot Exhaust Air Port (82/84): G1/8

Operating pressure:

Port (1): 0 …. 8 bar

Electrical Connection: 26 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 24 VDC

Weight: 3.60 kg
