Festo 1908290 ISO Cylinder
New
In stock1 unitReady to ship

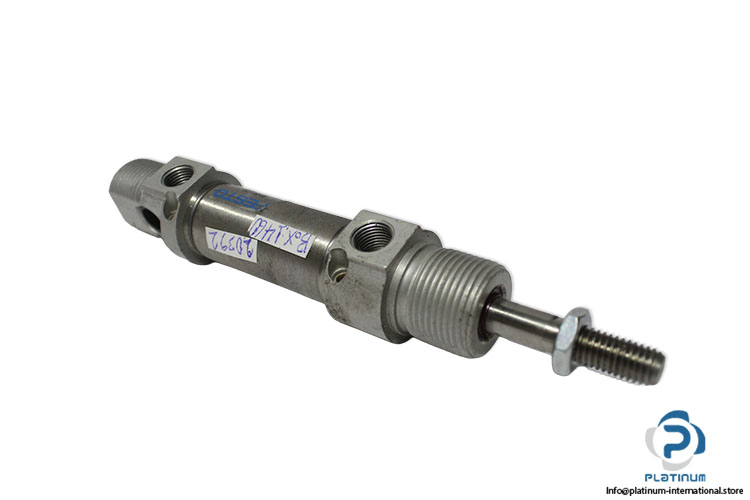

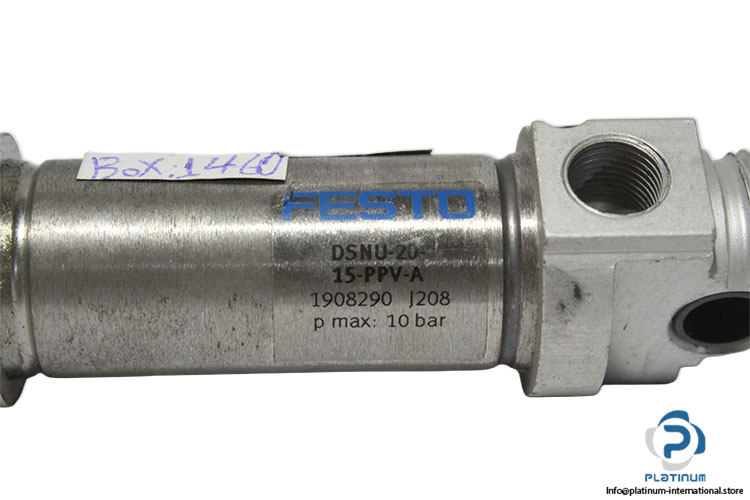

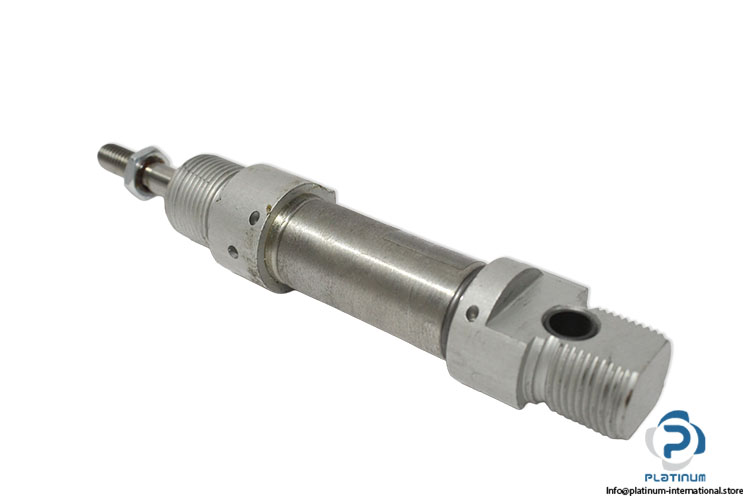

ISO Cylinder Festo DSNU-20-15-PPV-A is a double-acting ISO pneumatic cylinder with 20 mm bore, 15 mm stroke, adjustable cushioning, stainless steel construction, and 10 bar operating pressure for precision automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 1908290 |
| Code | J208 |
| Series | DSNU |
| Fluid | Compressed Air |
| Stroke | 15 mm |
| Bore Size | 20 mm |
| Piston Rod Diameter | 8 mm |
| Operating Mode | Double acting, Single rod |
| Cushion Type | Pneumatic cushioning, adjustable at both ends |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Mounting type | Any |
| Shape | Circular |
| Operating pressure | max. 1.0 MPa /10 bar |
| Position sensing | For proximity sensor |
| Piston rod thread | M8 |
| Port size | G1/8 |
| Material cover | Wrought aluminum alloy Plain anodized |
| Material Seals | NBR |
| Material Piston Rod | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel |
| Ambient temperature | -20 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097384 |
| Weight | 0,15 |
