Festo 1908326 ISO Cylinder
New
In stock1 unitReady to ship
ISO Cylinder
FESTO DSNU-25-70-PPS-A ISO Cylinder is a high-performance pneumatic cylinder featuring a 25 mm diameter, 70 mm stroke, and robust stainless steel construction. This double-acting cylinder offers precise operation with self-adjusting pneumatic end-position cushioning, ideal for demanding industrial applications.2570ActingCushioningCylinderdiameterDoubleHigh-AlloyIndustrialmmPneumaticSelf-AdjustingstainlessSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

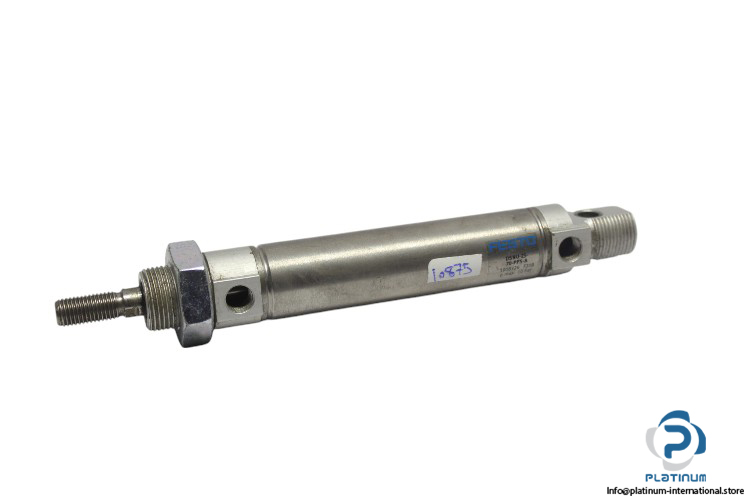

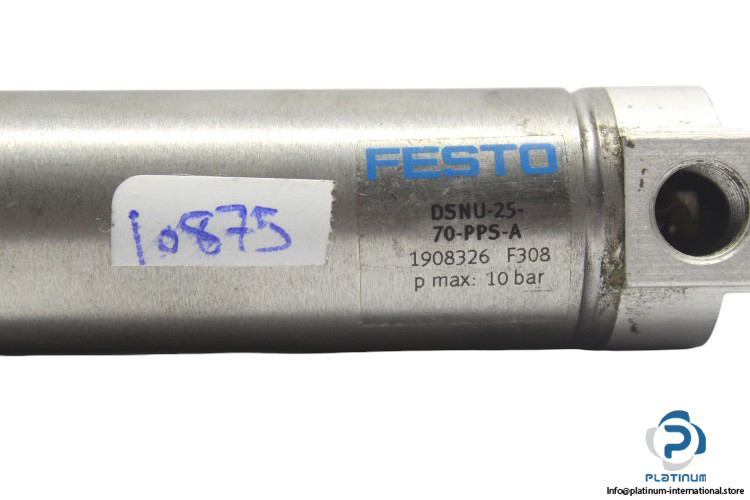

FESTO DSNU-25-70-PPS-A ISO Cylinder
The FESTO DSNU-25-70-PPS-A ISO Cylinder is a robust and reliable pneumatic cylinder designed for precision and efficiency in industrial applications. With a high-alloy stainless steel construction, this double-acting cylinder provides superior performance under high-pressure conditions, offering self-adjusting pneumatic end-position cushioning for smooth and controlled operations.
- Manufacturer: FESTO
- Type: ISO Cylinder
- Model: DSNU-25-70-PPS-A
- Part No.: 1908326
Technical Specifications
- Cylinder Diameter: 25 mm
- Stroke: 70 mm
- Piston Rod Thread: M10x1.25
- Max Pressure: 10 bar
- Cushioning: Self-adjusting pneumatic end-position cushioning
- Variants: Piston rod at one end
- Mode of Operation: Double acting
- Material of Cylinder Barrel: High-alloy stainless steel
- Ambient Temperature: -20 to 80 °C
- Port Size: G1/8
