Festo 19137 Double Solenoid Valve
Used
In stock1 unitReady to ship
DOUBLE SOLENOID VALVE WITH COIL
FESTO JMVH-5-1/4-S-B double solenoid valve with bistable 5/2 function and MSV-3 coil, ideal for high-flow industrial pneumatic applications.5/2AirAluminiumBistablecoilControldie-castDoubleFestoflowHighIndustrialJMVH-5-1/4-S-BMSV-3PneumaticsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

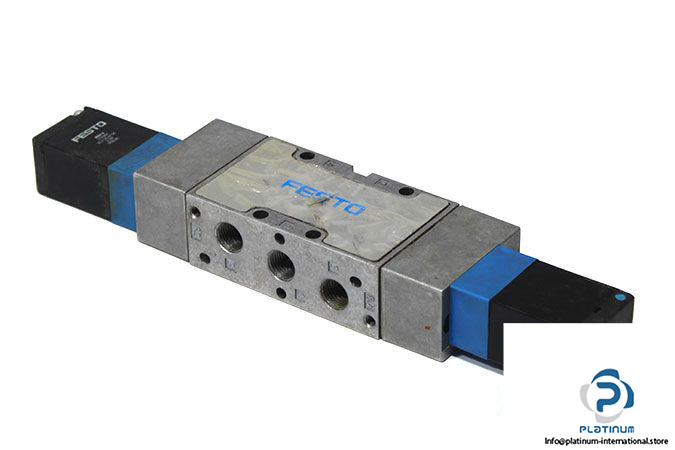

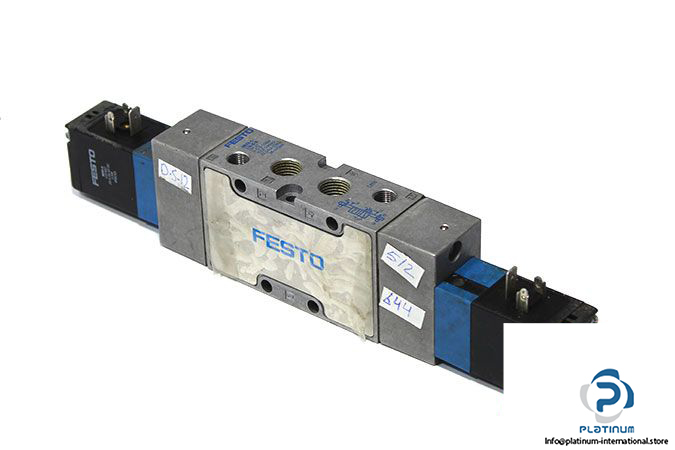

FESTO JMVH-5-1/4-S-B DOUBLE SOLENOID VALVE WITH SOLENOID COIL
The FESTO JMVH-5-1/4-S-B is a high-performance double solenoid valve designed for precise control of compressed air in industrial automation systems. Engineered with a robust piston gate valve design and bistable 5/2 function, it provides excellent switching reliability. This valve includes the FESTO MSV-3 solenoid coil for optimal actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve

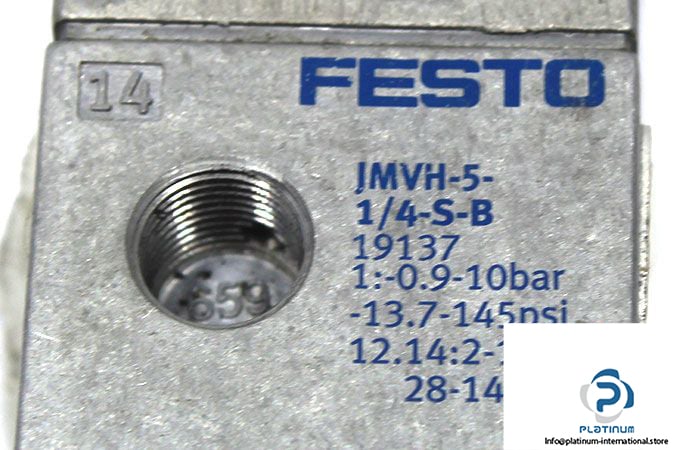

Model: JMVH-5-1/4-S-B
Part No.: 19137
Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |

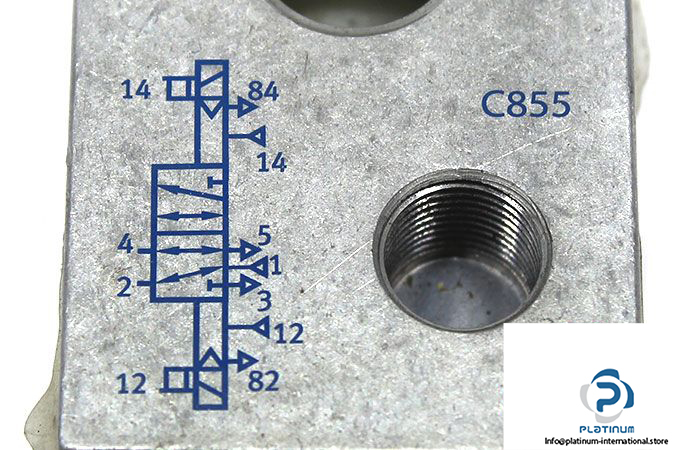

| Function | 5/2 bistable |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 / 10 bar |
| Pilot Pressure | 3 ... 10 bar |
| Nominal Flow Rate | 1600 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminium |
| Ambient Temperature | -5 / 50 °C |

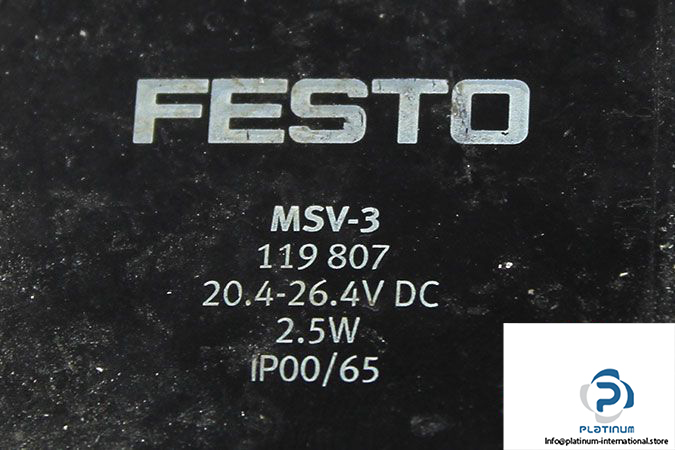

| Attachment | FESTO MSV-3 SOLENOID COIL |
| Part No. | 119807 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
