Festo 19219 ISO Cylinder
New
In stock2 unitsReady to ship
ISO Cylinder
FESTO DSNU-25-25-P-A ISO Cylinder is a compact and durable pneumatic actuator designed for precision applications. Featuring a 25 mm piston diameter, 25 mm stroke, and high-alloy stainless steel construction, it ensures reliable operation in industrial environments.25ActingActuatorCylinderdiameterDoubleFestoHigh-AlloyIndustrialISOLinearmmMotionPistonPneumaticstainlessStandardSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

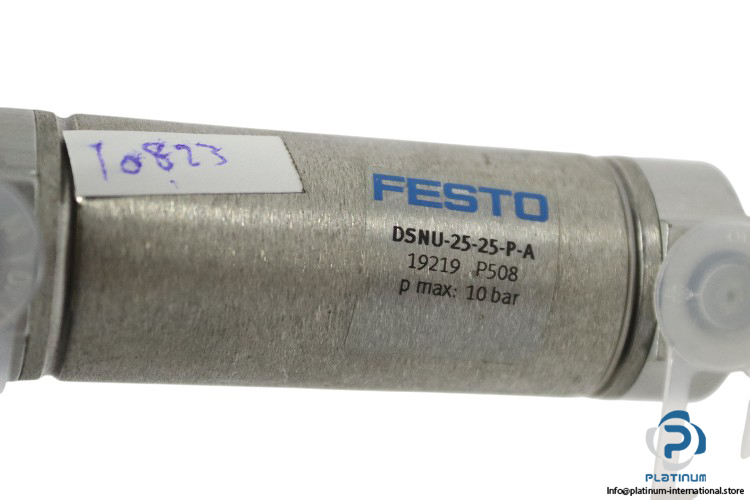

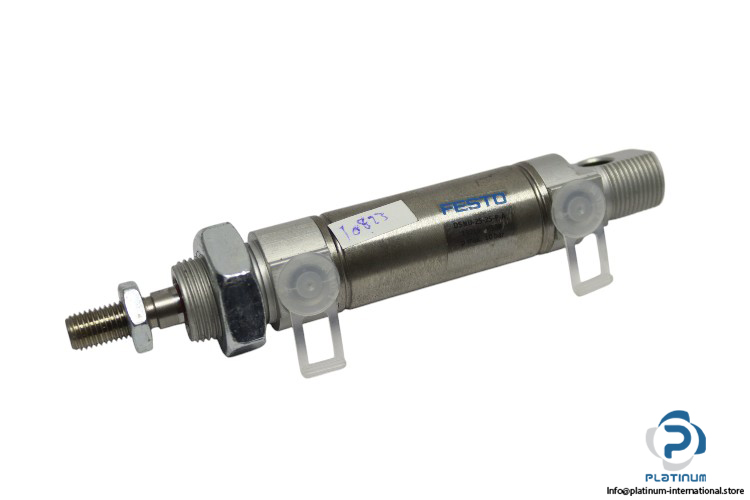

FESTO DSNU-25-25-P-A ISO Cylinder
The FESTO DSNU-25-25-P-A ISO Cylinder is a high-performance pneumatic actuator designed for precision and efficiency in industrial applications. With a 25 mm piston diameter, 25 mm stroke, and double-acting operation, it delivers reliable motion control. Constructed with a high-alloy stainless steel cylinder barrel, this ISO-compliant cylinder ensures durability and resistance to harsh environments.
- Manufacturer: FESTO
- Type: ISO Cylinder
- Model: DSNU-25-25-P-A
- Part No.: 19219
Technical Specifications
- Piston Diameter: 25 mm
- Stroke: 25 mm
- Piston Rod Thread: M10x1.25
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensor
- Variants: Piston rod at one end
- Operating Pressure: 1 bar – 10 bar
- Ambient Temperature: -20 °C to 80 °C
- Mode of Operation: Double acting
- Material of Cylinder Barrel: High-alloy stainless steel
- Port Size: G1/8
