Festo 19238 ISO Cylinder
Used
In stock10 unitsReady to ship
Festo DSNU-20-80-PPV-A ISO Cylinder “ Double-acting pneumatic cylinder with 20 mm piston, 80 mm stroke, and G1/8 port. Features stainless steel construction and adjustable end cushioning.
2080ActingActuatorAdjustableAirCushioningCylinderDoubleDSNU-20-80-PPV-AFestoG1/8IndustrialISOmmPistonPneumaticPortstainlessSteelStroke
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

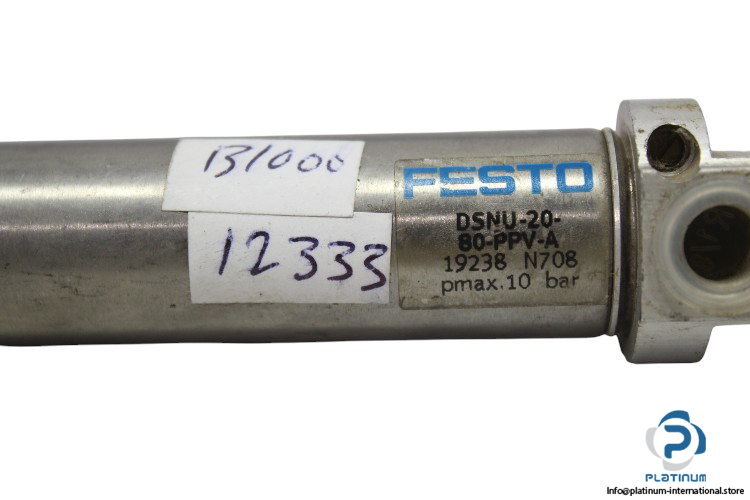

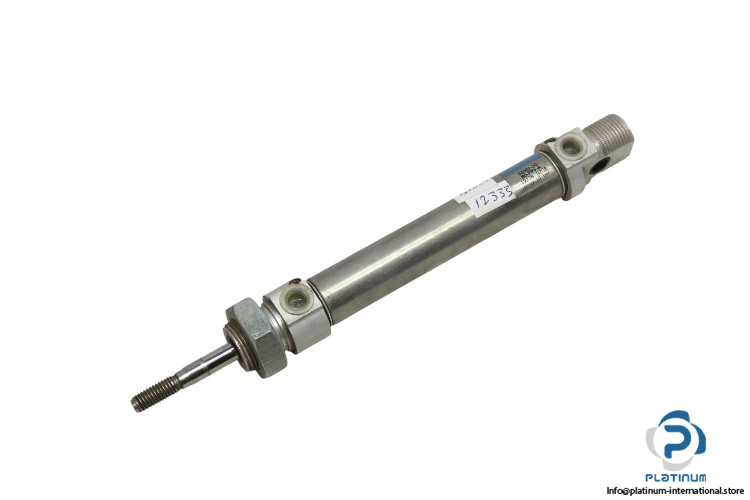

Festo DSNU-20-80-PPV-A ISO Cylinder “ Part No. 19238
The Festo DSNU-20-80-PPV-A is a high-precision ISO-standard pneumatic cylinder designed for efficient and reliable motion control. It features double-acting operation, adjustable pneumatic cushioning at both ends, and high-performance materials suited for demanding industrial applications.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-20-80-PPV-A
Part No.: 19238
| Media | Compressed Air |
| Piston Diameter | 20 mm |
| Stroke | 80 mm |
| Pneumatic Connection | G1/8 |
| Operation Mode | Double Acting |
| Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
| Piston Rod Thread | Male |
| Shape | Circular |
| Operating Pressure | Max. 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Material “ Cover | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Housing | High-Alloy Stainless Steel |
| Material “ Piston Rod | High-Alloy Stainless Steel |
