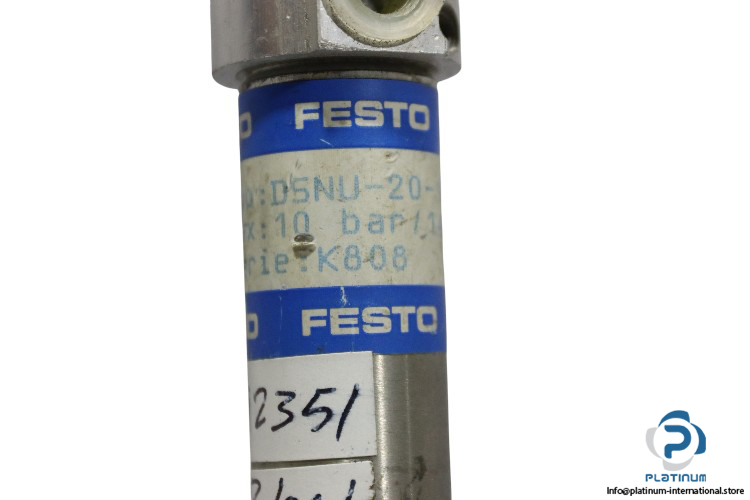

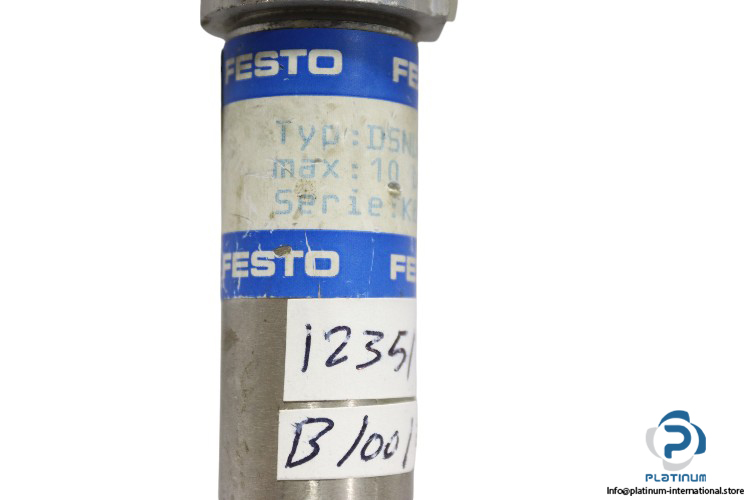

Festo 19239 ISO Cylinder
Used
In stock2 unitsReady to ship
Festo DSNU-20-100-PPV-A ISO Cylinder “ Double-acting pneumatic cylinder with 20 mm piston and 100 mm stroke. Built with high-alloy stainless steel and G1/8 port for precise industrial automation.
10020ActingActuatorAdjustableAirCompressedCushioningCylinderDoubleDSNU-20-100-PPV-AFestoG1/8IndustrialISOmmPistonPneumaticPneumaticsPortstainlessSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Festo DSNU-20-100-PPV-A ISO Cylinder “ Part No. 19239
The Festo DSNU-20-100-PPV-A is a compact ISO-standard pneumatic cylinder engineered for precise and efficient motion in automation systems. With a 100 mm stroke and 20 mm piston diameter, this cylinder supports double-acting operation and features adjustable cushioning at both ends for smooth performance.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-20-100-PPV-A
Part No.: 19239
| Media | Compressed Air |
| Piston Diameter | 20 mm |
| Stroke | 100 mm |
| Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
| Pneumatic Connection | G1/8 |
| Operation Mode | Double Acting |
| Piston Rod Thread | Male |
| Shape | Circular |
| Operating Pressure | Max. 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Material “ Cover | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cylinder Barrel | High-Alloy Stainless Steel |
