Festo 19247 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Festo DSNU-25-80PPV-A is a double-acting ISO cylinder with 25 mm bore and 80 mm stroke. Built from stainless steel with adjustable pneumatic cushioning, it delivers precise, reliable performance for compressed air systems.2580ActingActuatorAdjustableboreCushioningCylinderDoubleDSNU-25-80PPV-AFestoISOmmPneumaticstainlessSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

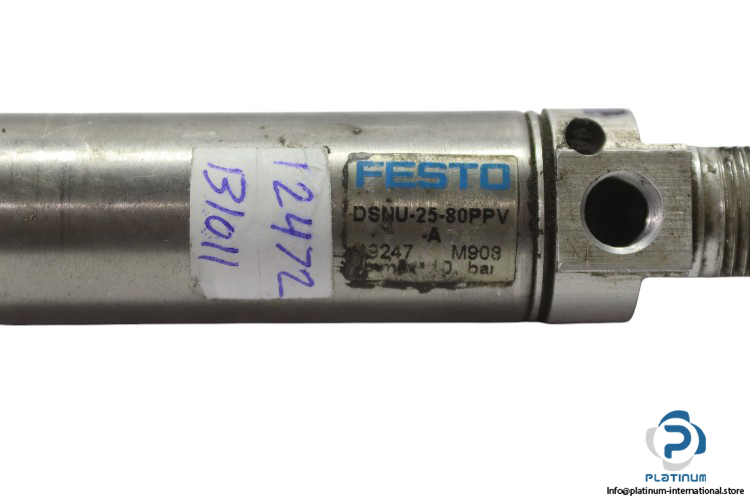

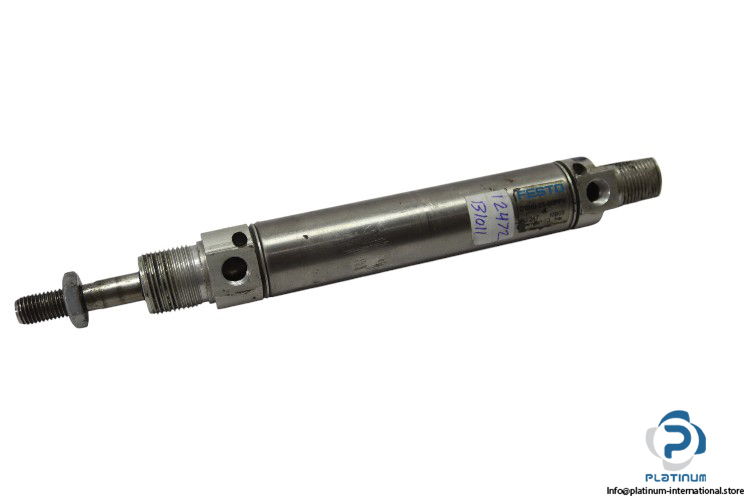

Festo DSNU-25-80PPV-A “ ISO Cylinder
The Festo DSNU-25-80PPV-A is a robust ISO-compliant pneumatic cylinder designed for double-acting motion with high-performance durability. It features adjustable cushioning on both ends and a high-strength stainless steel piston rod, suitable for various industrial automation systems.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-80PPV-A
Part No.: 19247
| Bore Diameter | 25 mm |
| Stroke | 80 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Variants | Piston rod at one end |
| Operating Medium | Compressed air |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double-acting |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Max. Operating Pressure | 10 bar |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR |
| Material Piston Rod | High-alloy stainless steel |
| Material Cylinder Barrel | High-alloy stainless steel |
