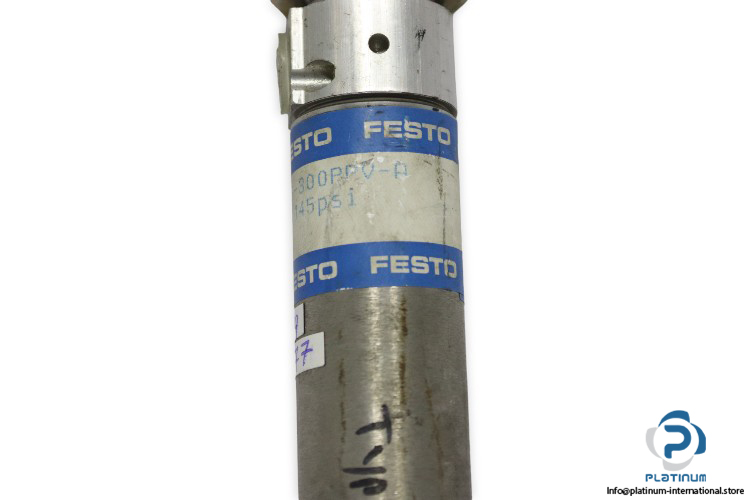

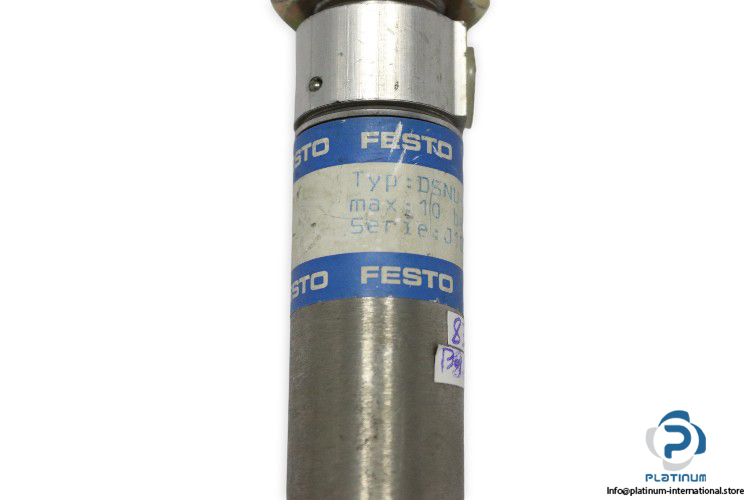

Festo 19253 ISO Cylinder

Manufacturer: FESTO
Type: ISO cylinder
Model: DSNU-25-300PPV-A
Part No.: 19253

Stroke Length: 300 mm
Piston Diameter: 25 mm
Piston rod thread: M10x1.25
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Pneumatic cushioning, adjustable at both ends
Position Sensing: For proximity sensing
Variant: Piston rod at one end
Pneumatic Connection: G1/8
Temperature: -20 … 80 °C
Material of cylinder barrel: High-alloy stainless steel
