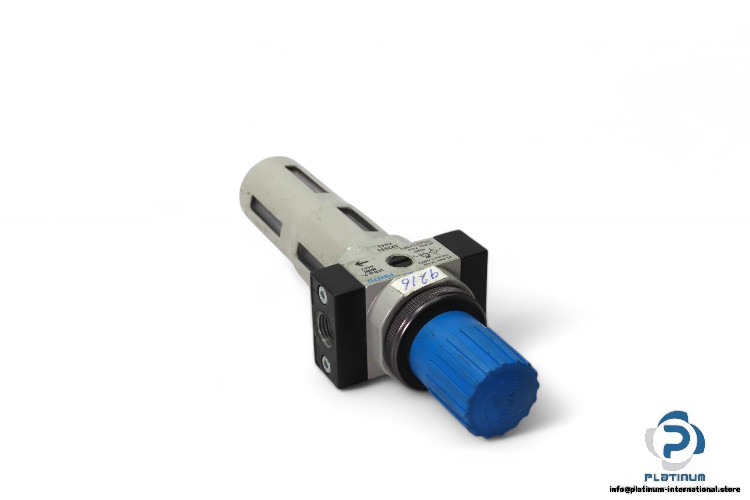

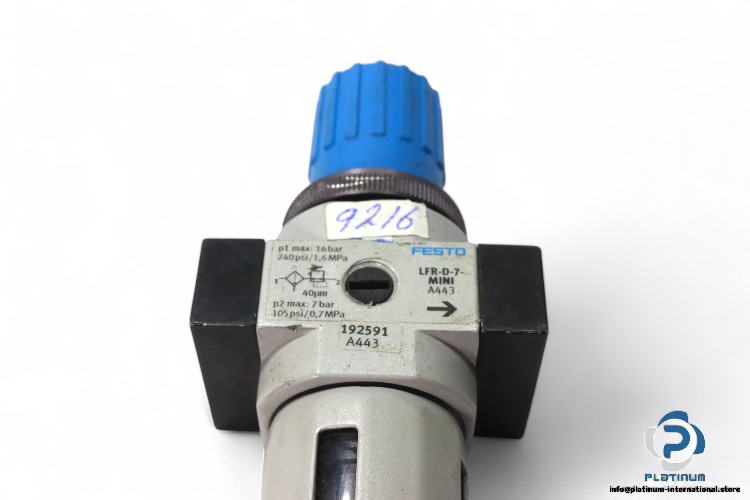

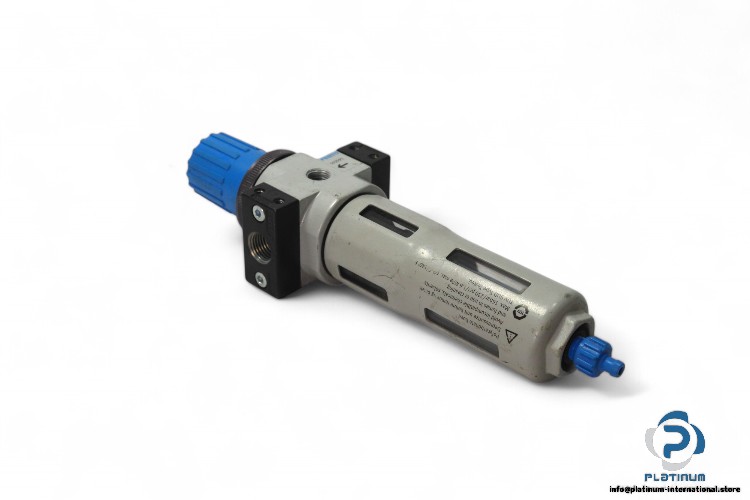

Festo 192591 Filter Regulator
Used
In stock1 unitReady to ship
FESTO Filter Regulator LFR-D-7-MINI, 40 microns filtration, 1,500 l/min flow, and 0.5 to 7 bar pressure regulation range, designed for compressed air applications with die-cast zinc material and G 1/4 port size.
407AirbarCompresseddie-castFestofilterfiltrationmicronsPneumaticPressureRegulationregulatorSystemZinc
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO Filter Regulator
The FESTO Filter Regulator Model LFR-D-7-MINI is designed for compressed air applications, combining filtration and pressure regulation in one unit. With a filtration grade of 40 microns and a pressure regulation range of 0.5 to 7 bar, it provides stable air pressure and protects sensitive components. The filter regulator is compact and efficient, suitable for a wide range of pneumatic systems.
🔧 Technical Specifications:
- Manufacturer: FESTO
- Type: Filter Regulator
- Model: LFR-D-7-MINI
- Part No.: 192591
- Series: D
- Size: MINI
- Fluid: Compressed Air
- Filtration Grade: 40 microns
- P1 Max.: 16 bar / 240 PSI / 1.6 MPa
- P2 Max.: 7 bar / 105 PSI / 0.7 MPa
- Nominal Flow Rate: 1,500 l/min
- Pressure Regulation Range: 0.5 to 7 bar
- Ambient and Fluid Temperature: -10 to 60 °C
- Port Size: G 1/4
- Material: Die-Cast Zinc
