Festo 19271 ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
The Festo ESNU-25-50-P-A is a single-acting pneumatic ISO cylinder with 25 mm bore and 50 mm stroke. Designed with durable materials and elastic cushioning, it’s ideal for efficient spring-return operations in industrial systems.25ActingAirboreCylinderESNU-25-50-P-AFestoG1/8IndustrialISOmmPneumaticReturnSinglespringstainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

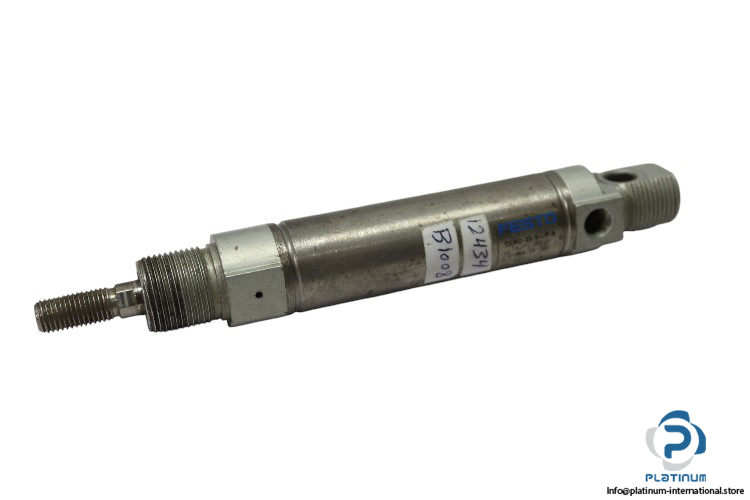

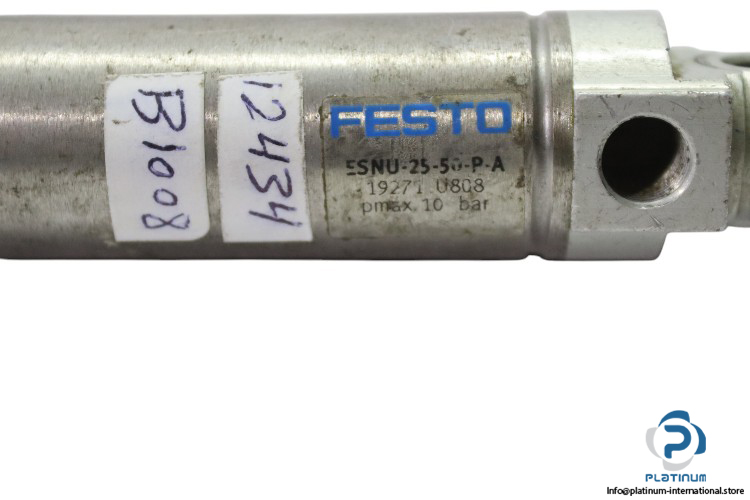

Festo ESNU-25-50-P-A “ ISO Cylinder
The Festo ESNU-25-50-P-A is a high-quality ISO-compliant pneumatic cylinder designed for single-acting operation with spring return. Engineered with premium materials such as high-alloy stainless steel and NBR seals, it provides excellent durability, smooth performance, and reliability in compressed air systems.
Manufacturer: Festo
Type: ISO Cylinder
Model: ESNU-25-50-P-A
Part No.: 19271
| Bore Diameter | 25 mm |
| Stroke | 50 mm |
| Pneumatic Connection | G1/8 |
| Variants | Piston rod at one end |
| Mode of Operation | Single-acting with spring return |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Material “ Cover | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cylinder Barrel | High-Alloy Stainless Steel |
