Festo 193992 32X90 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
Festo DSNU-32-90-PPV double-acting round cylinder with 90 mm stroke and 32 mm piston diameter. Built from stainless steel and aluminum alloy for long-lasting pneumatic performance.90mmActingActuatorCylinderDoubleDsnuDSNU-32-90-PPVFestoHighIndustrialPistonPneumaticPressureRODRoundSeriesstainlessSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

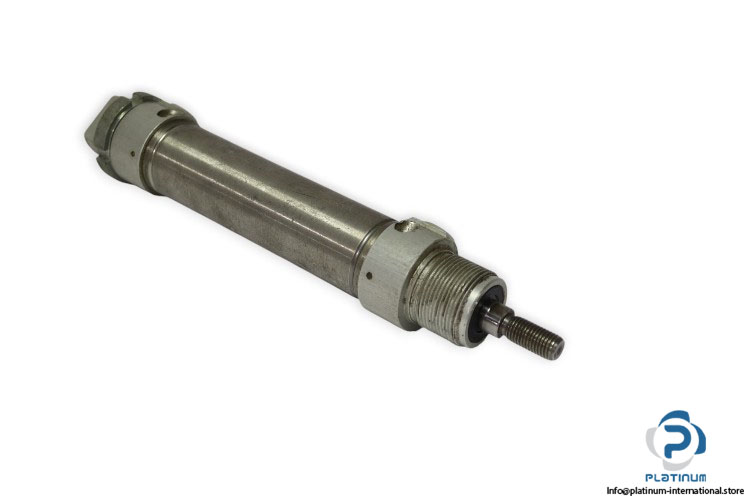

Festo DSNU-32-90-PPV Round Cylinder
The Festo DSNU-32-90-PPV is a high-performance round cylinder designed for industrial pneumatic applications. With a robust double-acting piston, stainless steel construction, and precision stroke length, it ensures durability and reliable operation under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder / Piston Rod Cylinder

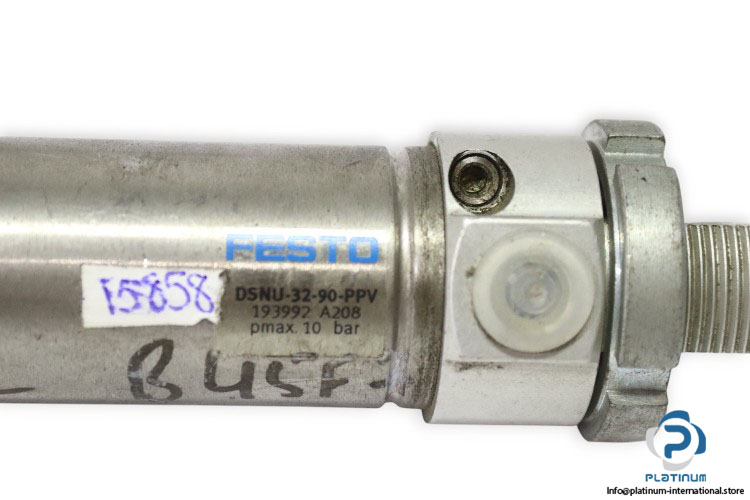

Model: DSNU-32-90-PPV
Part No.: 193992
Ref. Code: A208
Series: DSNU
| Stroke Length | 90 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | 12 mm |
| Pneumatic Connection | G1/8 |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Action | Double-acting |
| Material Cover | Wrought Aluminum Alloy |
| Material Seals | NBR, TPE-U (PU) |
| Material Piston Rod | High-Alloy Stainless Steel |
| Material Cylinder Barrel | High-Alloy Stainless Steel |
| Ambient Temperature | -20 to 120 °C |
