Festo 196024 32X100 Round Cylinder
Used
In stock7 unitsReady to ship
Round Cylinder
The Festo DSNU-32-100-PPV-A is a double-acting round cylinder with 100 mm stroke and 32 mm piston diameter. Built with stainless steel barrel and adjustable cushioning, it ensures long-lasting precision in pneumatic automation.100mm19602432mmActingActuatorCylinderDoubleDSNU-32-100-PPV-AFestoIndustrialPistonPneumaticRoundstainlessSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

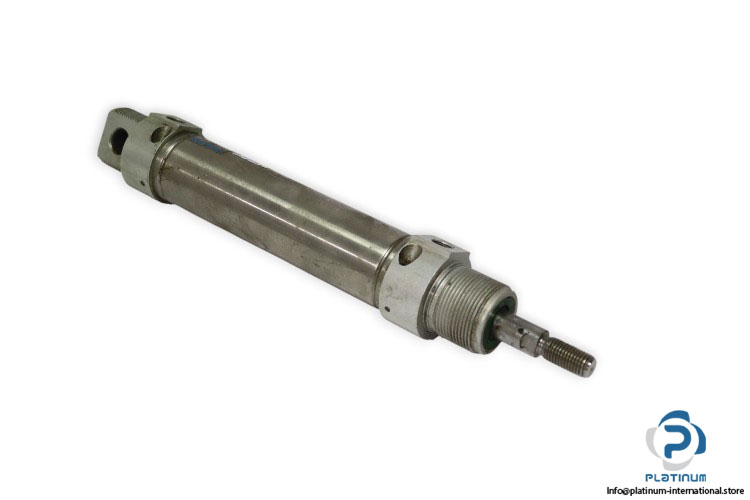

Festo DSNU-32-100-PPV-A Round Cylinder
The Festo DSNU-32-100-PPV-A is a high-performance pneumatic round cylinder designed for precision motion in industrial automation systems. With durable stainless steel construction, double-acting piston, and adjustable pneumatic cushioning, it ensures reliable and smooth operation even under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder

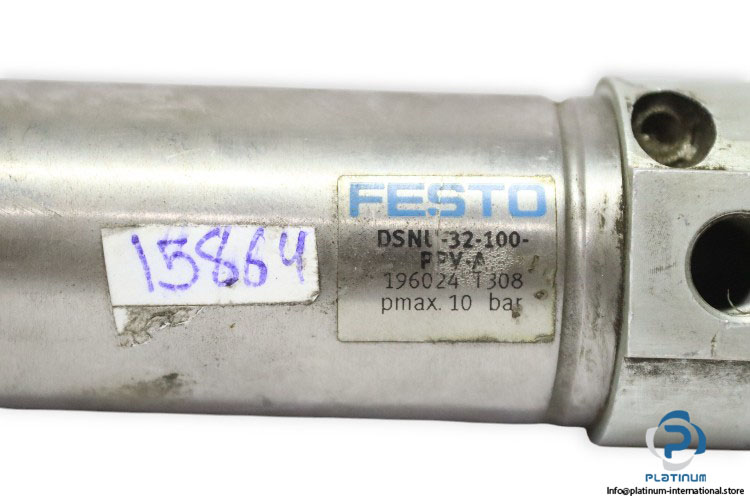

Model: DSNU-32-100-PPV-A
Part No.: 196024
Ref. Code: T308
Series: DSNU
| Stroke Length | 100 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | M10x1.25 |
| Pneumatic Connection | G1/8 |
| Operating Medium | Compressed Air |
| Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Action | Double-Acting |
| Material Cover | Wrought Aluminum Alloy |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-Alloy Steel |
| Material Cylinder Barrel | High-Alloy Stainless Steel |
| Ambient Temperature | -20 to 80 °C |
