Festo 196938 Double Solenoid Valve
New
In stock1 unitReady to ship
DOUBLE SOLENOID VALVE
FESTO CPE14-M1BH-5/3GS-1/8 valve with 5/2-way function and MSZE-3-24DC coil ensures efficient air control and IP65-protected operation for industrial use.1/85/2-WayAircoilCompressedControlCPE14-M1BH-5/3GS-1/8DoubleFestoGIP65MSZE-3-24DCPneumaticsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

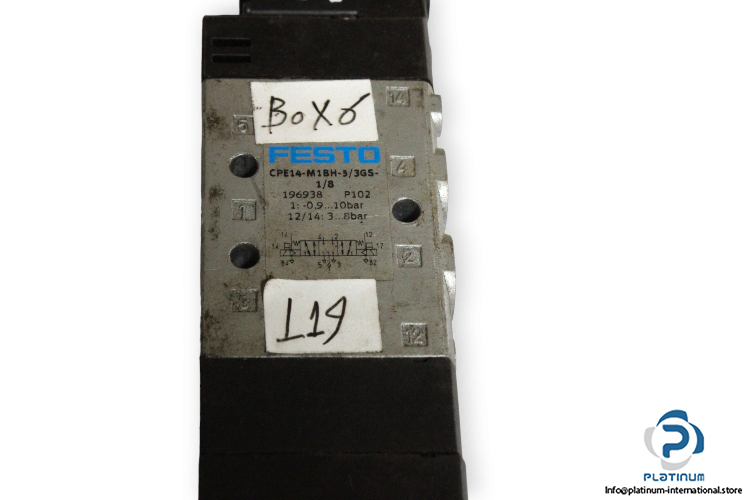

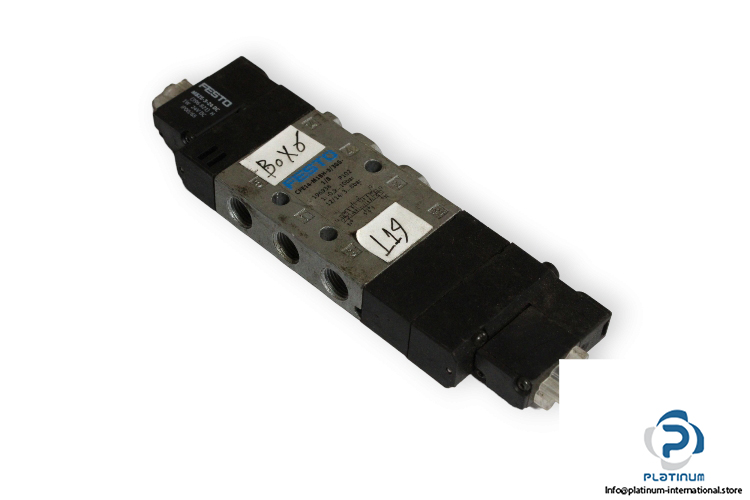

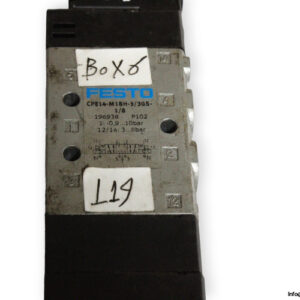

FESTO CPE14-M1BH-5/3GS-1/8 DOUBLE SOLENOID VALVE WITH COIL
The FESTO CPE14-M1BH-5/3GS-1/8 is a high-performance 5/2-way double solenoid valve designed for precise control of compressed air systems. With reliable electrical actuation and a compact die-cast aluminum body, it™s ideal for industrial automation applications. The valve comes fitted with the FESTO MSZE-3-24DC solenoid coil for secure operation.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE14-M1BH-5/3GS-1/8
Part No.: 196938
Coil Technical Information
| Fluid | Compressed Air |
| Function | 5/2-way Valve |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 8 bar |
| Nominal Flow Rate | 750 l/min |
| Pneumatic Connection | G 1/8, Threaded |
| Material | Die-Cast Aluminum |
| Ambient Temperature | -10 / 50 °C |

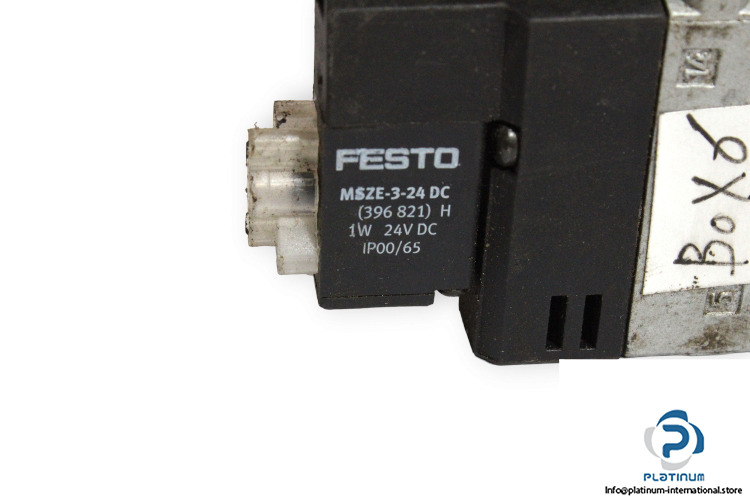

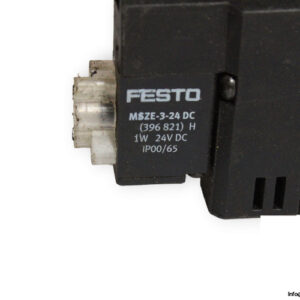

| Attachment | FESTO MSZE-3-24DC Solenoid Coil |
| Part No. | 396821 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1 W |
| Protection Class | IP65 |
