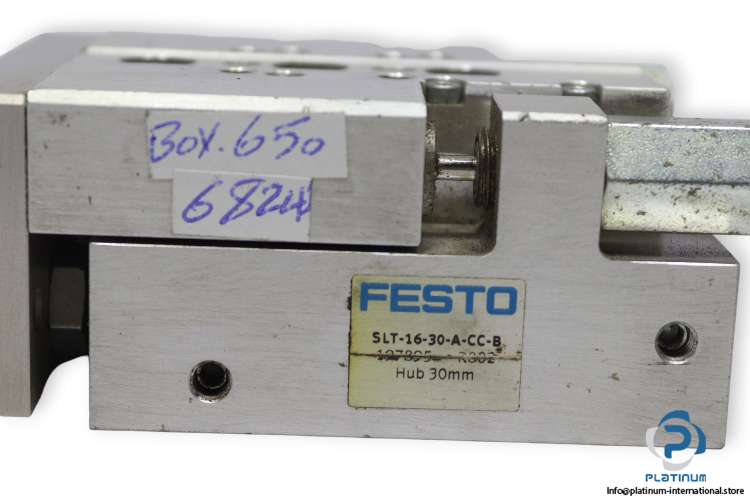

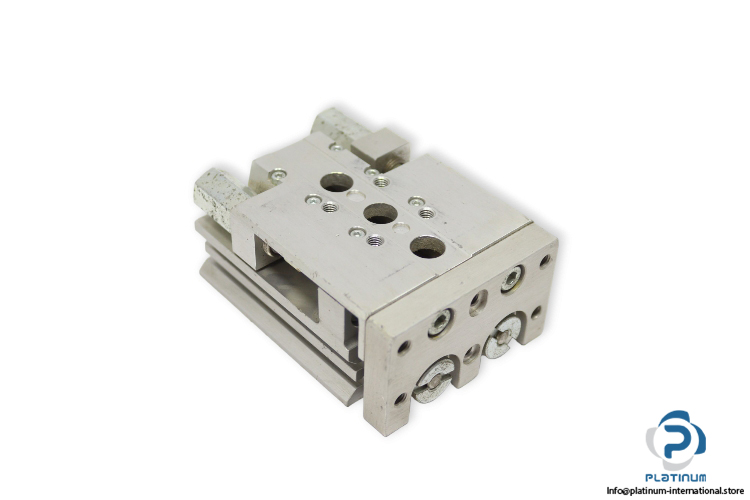

Festo 197895 Mini Slide

Manufacturer: FESTO
Type: Mini slide
Model: SLT-16-30-A-CC-B
Part no.: 197895

Stroke: 30 mm
Adjustable end-position range/length: 5 mm
Piston diameter: 16 mm
Position detection: For proximity sensor
Operating pressure: 1 … 10 bar
Repetition accuracy: 0.02 mm
Max. torque Mx: 4.2 Nm
Max. torque My: 4.2 Nm
Max. torque Mz: 3 Nm
Theoretical force at 6 bar, return stroke: 207 N
Theoretical force at 6 bar, advance stroke: 242 N
Pneumatic connection: M5
Material housing: Wrought Aluminium alloy
Material piston rod: High alloy steel, non-corrosive
