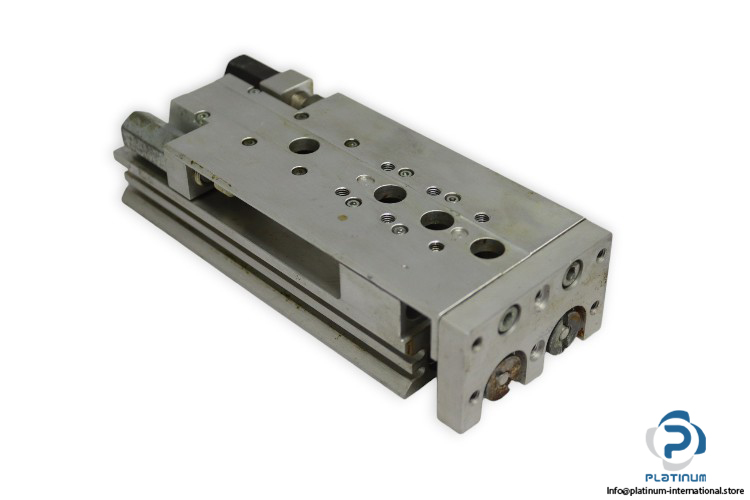

Festo 197898 Mini Slide

Manufacturer: FESTO
Type: Mini slide

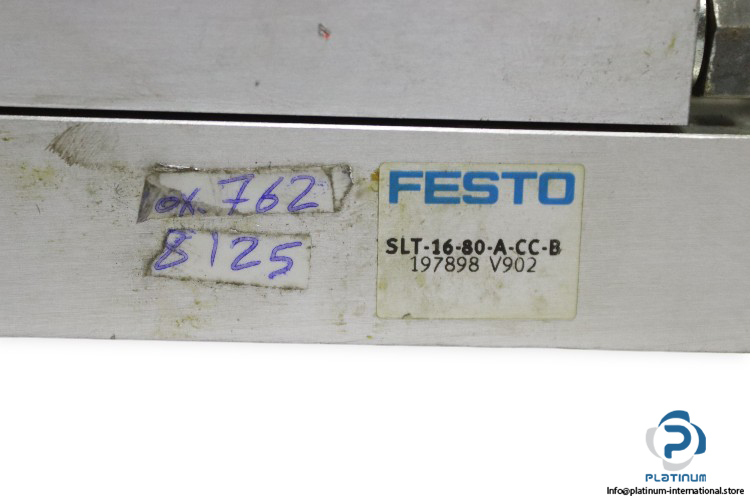

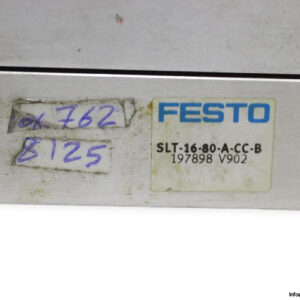

Model: SLT-16-80-A-CC-B
Part No.: 197898

Stroke: 80 mm
Adjustable end-position range/length: 5 mm
Piston diameter: 16 mm
Cushioning: Shock absorber at both ends
Guide: Ball bearing cage guide
Position detection: For proximity sensor
Operating pressure: 1 … 10 bar
Mode of operation: double-acting
Operating medium: Compressed air
Ambient temperature: -20 … 60 °C
Impact energy in end positions: 2 Nm
Max. force Fy: 520 N
Max. force Fz: 520 N
Max. torque Mx: 6 Nm
Max. torque My: 6 Nm
Max. torque Mz: 2.8 Nm
Theoretical force at 6 bar, return stroke: 207 N
Theoretical force at 6 bar, advance stroke: 242 N
Pneumatic connection: M5
