Festo 2481 40X200 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
Festo DGS-40-200-PPV round cylinder with 200 mm stroke and 40 mm piston diameter. Double-acting design with adjustable pneumatic cushioning, built from durable high-alloy steel and aluminum components.200248140ActingActuatorAdjustableCushioningCylinderDGS-40-200-PPVDoubleFestoIndustrialmmPistonPneumaticRoundStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

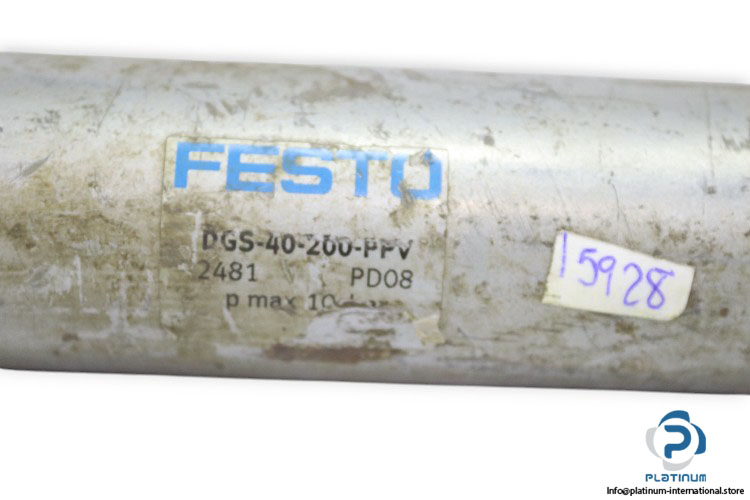

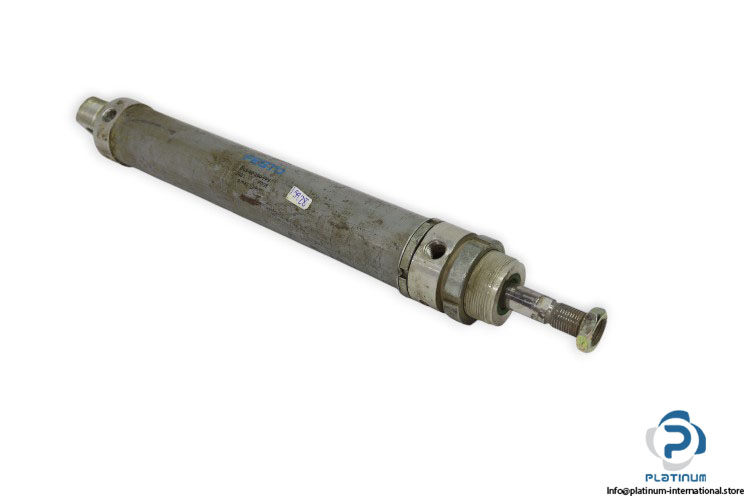

Festo DGS-40-200-PPV Round Cylinder
The Festo DGS-40-200-PPV is a robust round cylinder designed for precision and durability in pneumatic automation systems. With a 200 mm stroke and 40 mm piston diameter, it ensures reliable performance in double-acting operations, equipped with adjustable pneumatic cushioning for smooth motion control.
Manufacturer: Festo
Type: Round Cylinder
Model: DGS-40-200-PPV
Part No.: 2481
Series: DGS
Ref. Code: PD08
| Stroke Length | 200 mm |
| Piston Diameter | 40 mm |
| Piston Rod Thread | 12 mm, Male |
| Pneumatic Connection | G1/4 |
| Operating Medium | Compressed air |
| Cushioning | Pneumatic cushioning, adjustable at both ends (PPV) |
| Variants | Single-ended piston rod |
| Mode of Operation | Double-acting |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Rod Direction | One Side |
| Ambient Temperature | -20 to 80 °C |
| Materials (Cover) | Wrought Aluminum Alloy |
| Materials (Seals) | TPE-U(PU), NBR |
| Materials (Housing) | High Alloy Steel, Non-Corrosive |
| Materials (Piston Rod) | High Alloy Steel |
