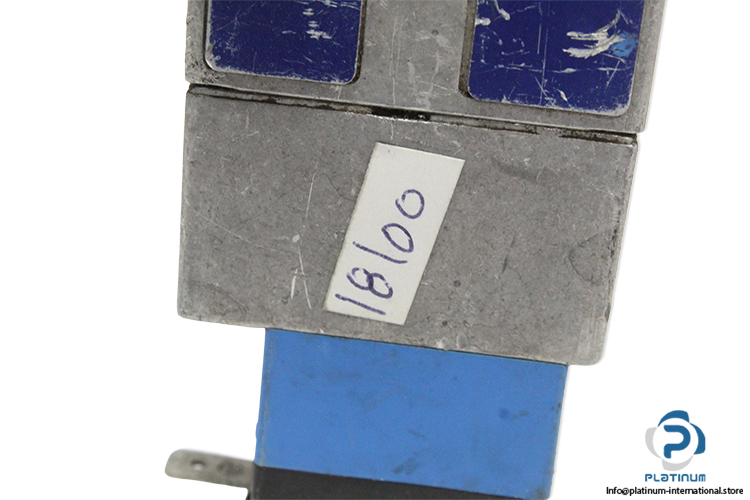

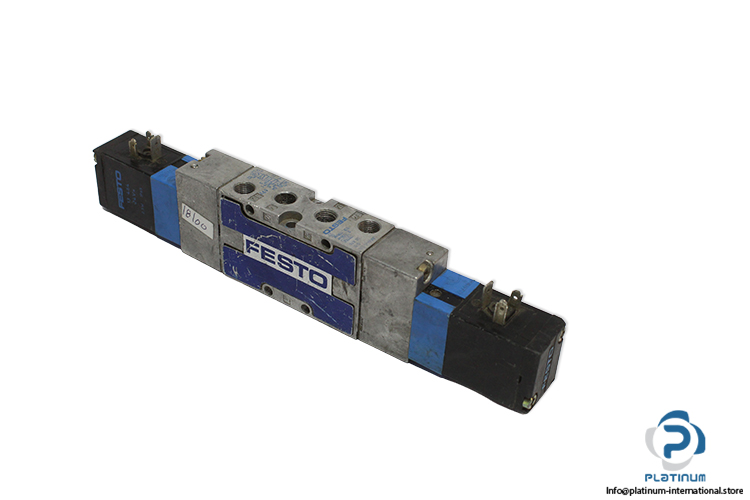

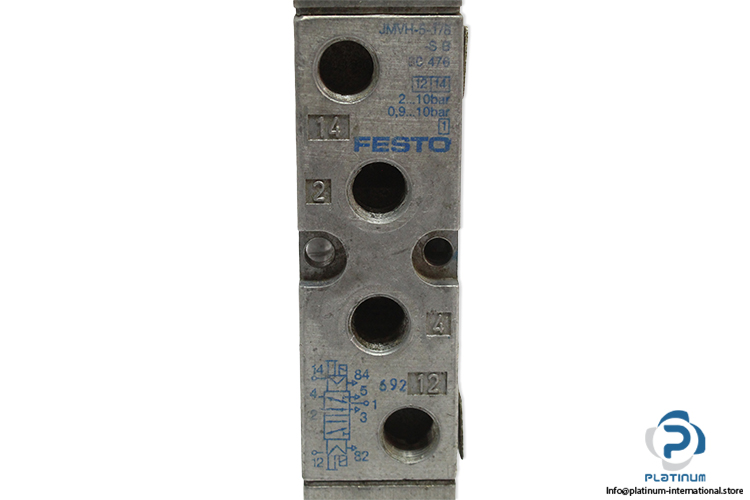

Festo 30476 Solenoid Valve
Used
In stock1 unitReady to ship
66,66$
Solenoid Valve
FESTO JMVH-5-1/8 S-B 5/2 bistable solenoid valve with G1/8 pneumatic ports, piston gate valve design, 1000 l/min flow rate and 24V DC solenoid coil for pneumatic automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO JMVH-5-1/8 S-B Solenoid Valve
The FESTO JMVH-5-1/8 S-B is an electrically actuated 5/2 bistable solenoid valve designed for pneumatic automation systems. Built with a piston gate valve design and die-cast aluminium housing, this valve provides reliable switching performance and efficient air flow control in industrial applications.
Manufacturer: FESTO
Type: Solenoid Valve
Model: JMVH-5-1/8 S-B
Part No.: 30476
| Valve Function | 5/2 Bistable |
| Type Of Actuation | Electric |
| Construction Width | 26 mm |
| Standard Nominal Flow Rate (DIN 1343) | 1000 l/min |
| Pneumatic Working Port | G1/8 |
| Operating Pressure | -0.9 bar...10 bar |
| Design | Piston Gate Valve |
| Nominal Size | 8 mm |
| Sealing Principle | Soft |
| Mounting Position | Optional |
| Manual Override | Non-detenting |
| Type Of Piloting | Pilot Actuated |
| Pilot Air Supply | External |
| Flow Direction | Reversible |
| Lap | Overlap |
| Pilot Pressure | 2 bar...10 bar |
| Max. Switching Frequency | 3 Hz |
| Switching Time Reversal | 18 ms |
| Ambient Temperature | -5 °C...50 °C |
| Housing Material | Die-cast Aluminium |
| Attached With | FESTO 13464 Solenoid Coil |
| Operating Voltage | 24 V DC |
| Power | 2.5 W |
| Protection Class | IP65 |
