Festo 32299 ISO Cylinder
Used
In stock2 unitsReady to ship
ISO Cylinder
Festo DSN-25-500-P pneumatic ISO cylinder with 25 mm bore, 500 mm stroke, and double-acting operation. Built from non-corrosive high-alloy steel for reliable performance up to 10 bar.25mm500mmActingAirAlloyAutomationboreCylinderDoubleDSN-25-500-PFestoHighIndustrialISOPneumaticStandardSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

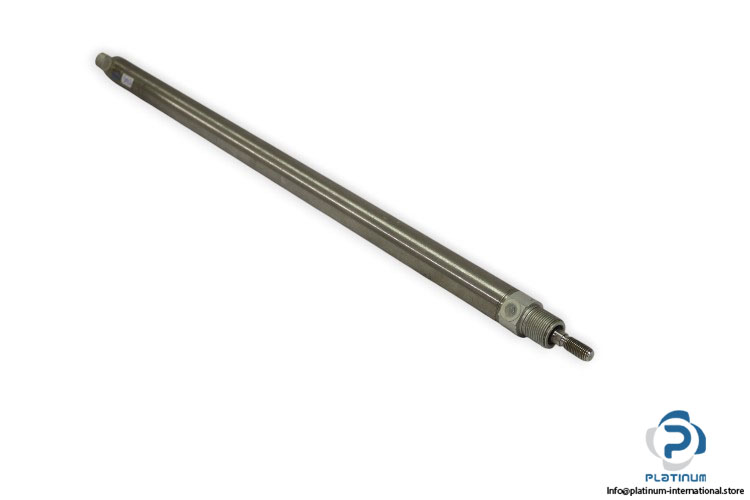

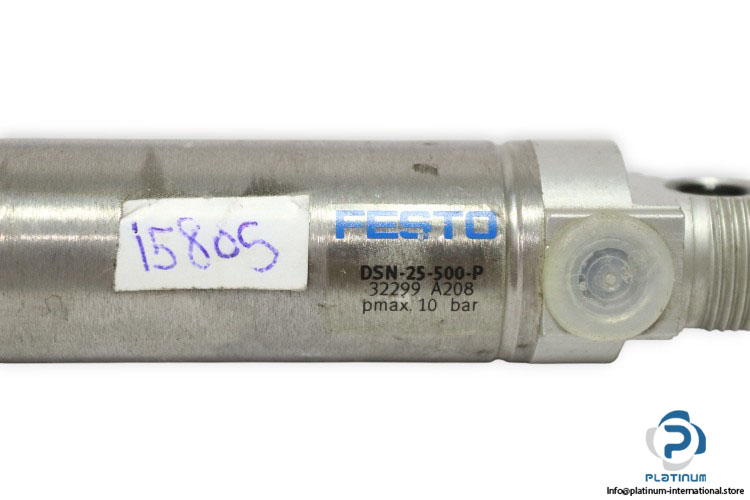

Festo DSN-25-500-P ISO Cylinder
The Festo DSN-25-500-P is a precision-engineered ISO pneumatic cylinder designed for reliable performance in demanding industrial automation systems. Featuring a long 500 mm stroke, durable construction, and flexible cushioning, it ensures smooth and efficient operation under high-pressure conditions.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSN-25-500-P
Part No.: 32299
Ref. Code: A208
| Bore Diameter | 25 mm |
| Stroke Length | 500 mm |
| Rod Diameter | 10 mm |
| Operating Medium | Compressed Air |
| Cushioning | Flexible Cushioning Rings/Plates at Both Ends |
| Pneumatic Connection | G1/8 |
| Variants | Single-Ended Piston Rod |
| Mode of Operation | Double Acting |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Max. Operating Pressure | 10 bar |
| Materials “ Cover | Wrought Aluminum Alloy |
| Materials “ Seals | NBR |
| Materials “ Piston Rod | High Alloy Steel, Non-Corrosive |
| Materials “ Cylinder Barrel | High Alloy Steel, Non-Corrosive |
