Festo 32785 Linear Unit
Used
In stock1 unitReady to ship
Linear Unit
The Festo SLM-32-420-KF-A Linear Unit offers precise pneumatic motion control with a 420 mm stroke length, 32 mm piston diameter, and 7 bar max operating pressure. It features double-acting operation and elastic cushioning for smooth, reliable performance.ActingActuatorBallbearingconnectionControlCushioningDoubleFestoG1/8GuideLinearMotionPneumaticRecirculatingSeriesSLMUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

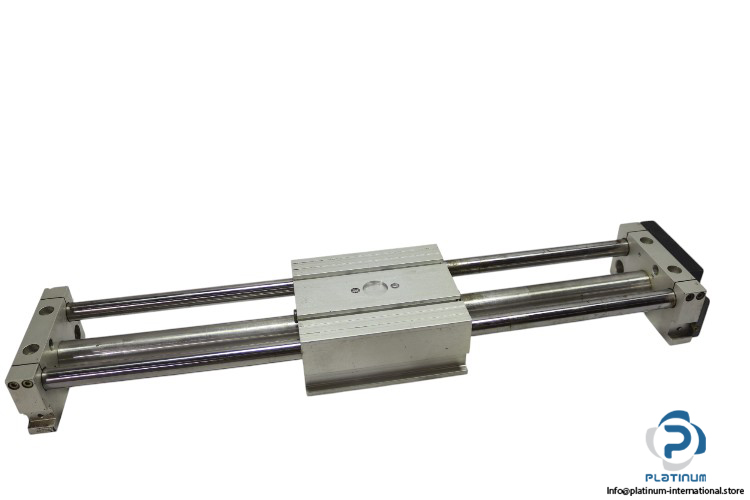

Festo SLM-32-420-KF-A Linear Unit
The Festo SLM-32-420-KF-A Linear Unit is designed for precise motion control in pneumatic applications. With a stroke length of 420 mm and a piston diameter of 32 mm, this unit offers efficient performance under a max operating pressure of 7 bar. It features a double-acting mode, elastic cushioning rings at both ends, and a recirculating ball bearing guide for smooth and reliable operation.
Manufacturer: FESTO
Type: Linear Unit

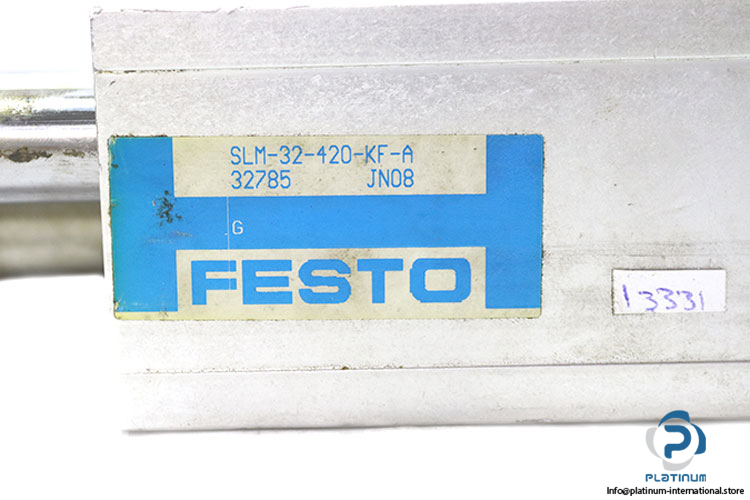

Model: SLM-32-420-KF-A
Part No.: 32785
Technical Data:
- Stroke Length: 420 mm
- Piston Diameter: 32 mm
- Max. Operating Pressure: 7 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Guide: Recirculating ball bearing guide
- Position Sensing: For proximity sensing
- Variant: Standard design, Hollow guide rod
- Housing Material: Aluminum
- Pneumatic Connection: G1/8
- Ambient Temperature: -20 … 60 °C
