On/Off Valve
FESTO 3/2-way normally closed on/off valve with slide operating principle, bistable control, and flow rates up to 950 l/min, suitable for pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

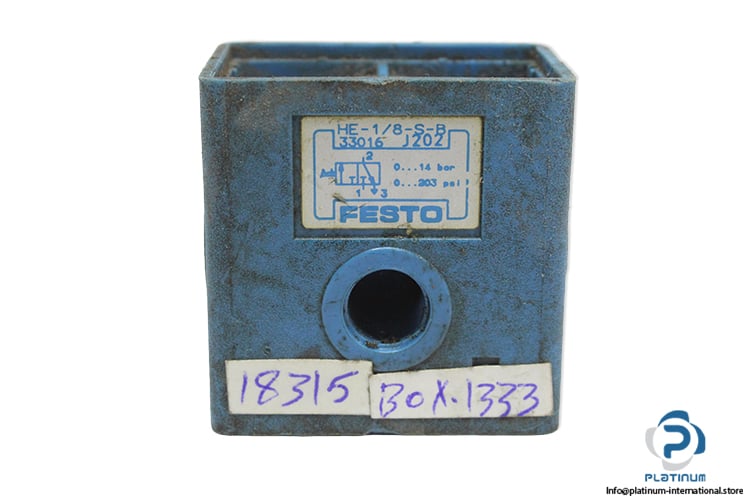

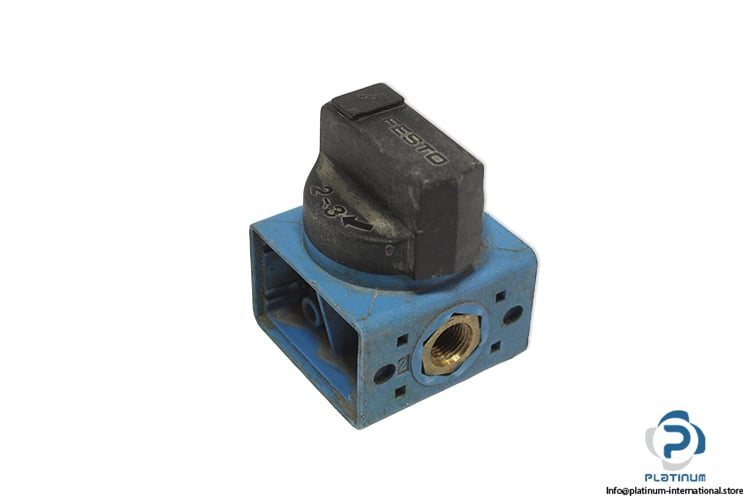

FESTO HE-1/8-S-B On/Off Valve
The FESTO HE-1/8-S-B is a compact and reliable 3/2-way on/off valve designed for pneumatic control systems. It operates with a slide mechanism and bistable control, ensuring consistent switching performance in industrial applications.
Manufacturer: FESTO
Type: On/Off Valve
Model: HE-1/8-S-B
Part No.: 33016
| Switching Function | 3/2-way valve, normally closed |
| Switching Function Short Code | 3/2 |
| Direction Of Flow Reversible | No |
| Operating Principle | Slide |
| Shape Of Function Component | Sub-base |
| With Exhaust Flow Control | No |
| Type Of Regulation | Direct |
| Control Type | Bistable |
| Type Of Mounting | Screw + Line |
| Installation Position | Any |
| Nominal Size | 7.2 mm |
| Operating Pressure Min. | 1 bar |
| Operating Pressure Max. | 14 bar |
| Minimum Ambient Temperature | -10 °C |
| Maximum Ambient Temperature | 60 °C |
| Actuation/Reset | Lever, detenting |
| Standard Nominal Flow Rate 1 - 2 | 950 l/min |
| Standard Nominal Flow Rate 2 - 3 | 370 l/min |
| Medium | Compressed air, filtered 50 µm (may be lubricated) |
