Festo 33969 Vacuum Security Valve
New
In stock16 unitsReady to ship
Vacuum Security Valve
The Festo ISV-1/8 vacuum security valve offers reliable pressure management with a wide range of applications, featuring a 2 l/min suction rate and durable aluminum alloy housing.AirAlloyAluminumCompressedControlEjectorFestoG1/8IndustrialPneumaticPressurePulseSecurityvacuumValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

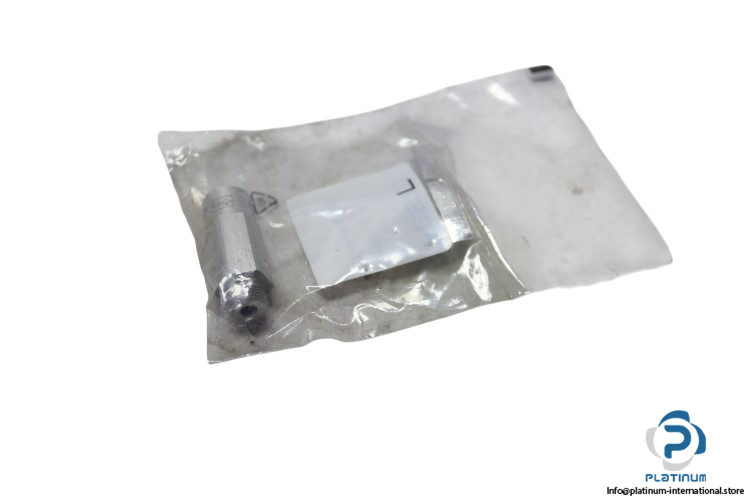

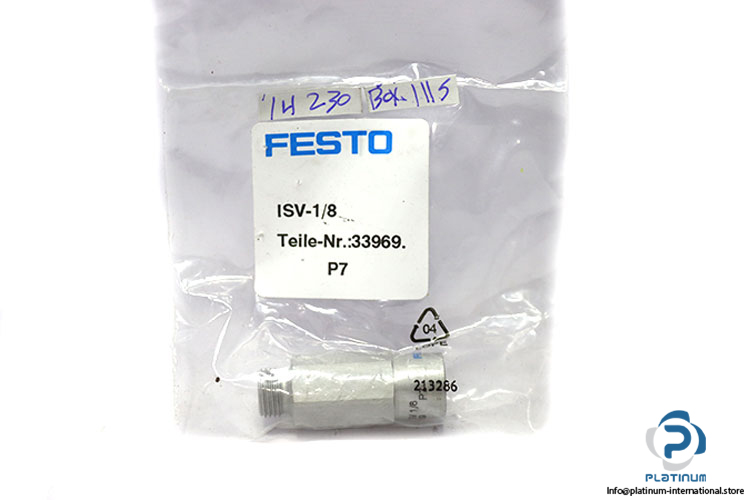

Festo ISV-1/8 Vacuum Security Valve
The Festo ISV-1/8 vacuum security valve provides reliable protection in pneumatic systems. It is designed to manage operating pressures from -0.95 bar to 0 bar, ensuring optimal safety and performance. Constructed from high-quality wrought aluminum alloy, it is suitable for a wide range of applications with flexible mounting options.
Manufacturer: FESTO
Type: Vacuum Security Valve
Model: ISV-1/8
MRN: 33969
Technical Data:
- Size: G1/8
- Ejector Pulse Suitability: 8 MPa
- Ejector Pulse Suitability: 8 bar
- Mounting Position: Any
- Operating Pressure: -0.95 bar to 0 bar
- Required Suction Rate at -0.5 bar: 2 l/min
- Operating Medium: Compressed air
- Ambient Temperature: -10 °C to 60 °C
- Type of Mounting: Screw-in
- Pneumatic Connection: G1/8
- Housing Material: Wrought aluminum alloy
