Festo 33973 ISO Cylinder
New
In stock2 unitsReady to ship
ISO Cylinder
The FESTO DSNU-16-25-PPV-A is a double-acting ISO cylinder with a 25 mm stroke and 16 mm piston diameter, offering adjustable cushioning and robust stainless steel construction for industrial automation.10ActingActuatorAdjustableAutomationbarCushioningCylinderDoubleDSNU-16DSNU-16-25-PPV-AFestoIndustrialISOPneumaticPneumaticsSeriesstainlessSteel
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

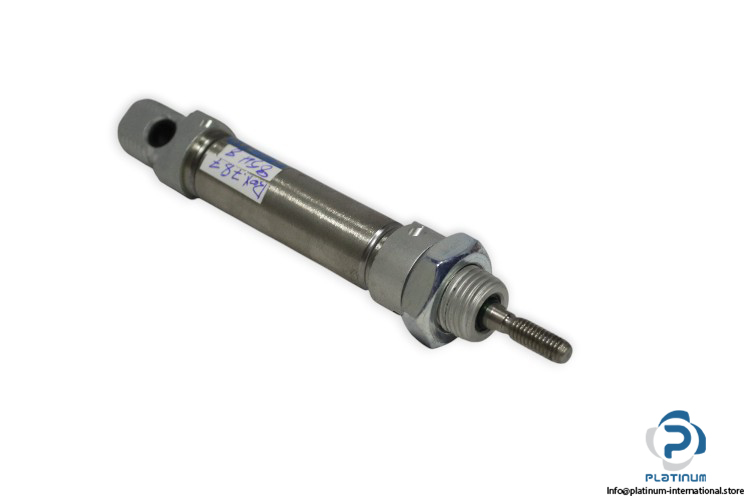

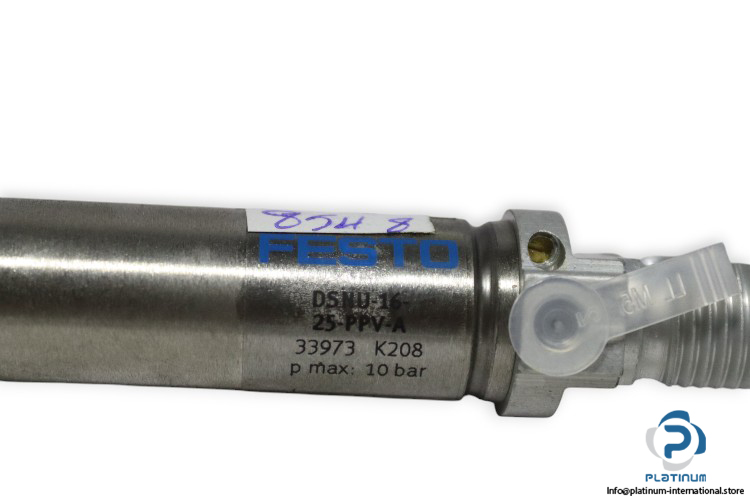

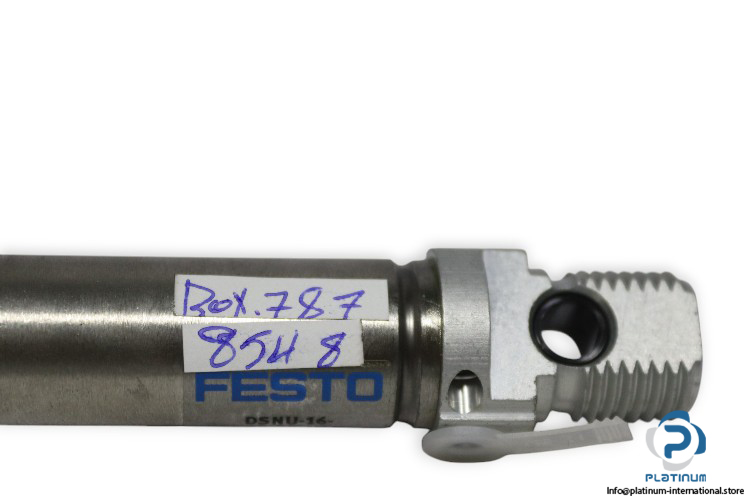

FESTO DSNU-16-25-PPV-A ISO Cylinder
The FESTO DSNU-16-25-PPV-A ISO Cylinder is a compact and durable pneumatic actuator designed for reliable linear motion and high performance in industrial automation applications. It provides smooth operation, adjustable cushioning, and precision stroke control for demanding environments.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DSNU-16-25-PPV-A
Part No.: 33973
| Stroke Length | 25 mm |
| Piston Diameter | 16 mm |
| Piston Rod Thread | M6 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston Rod End | External thread |
| Position Sensing | For proximity sensor |
| Variants | Piston rod at one end |
| Max. Operating Pressure | 10 bar |
| Mode of Operation | Double acting |
| Pneumatic Connection | 5 mm |
| Temperature | -20 / 80 °C |
| Material of Cylinder Barrel | High-alloy stainless steel |
