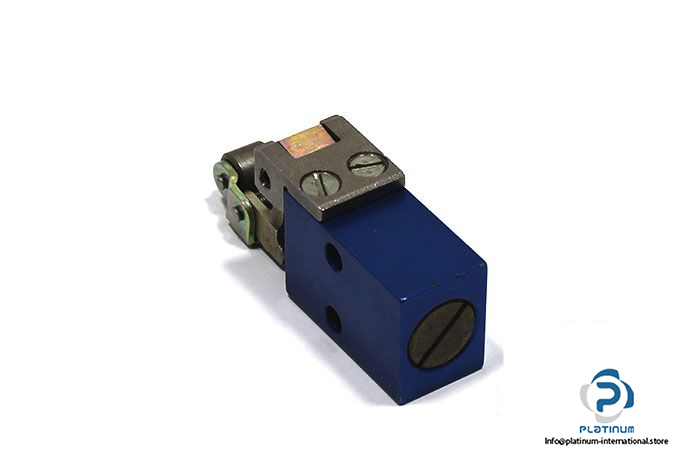

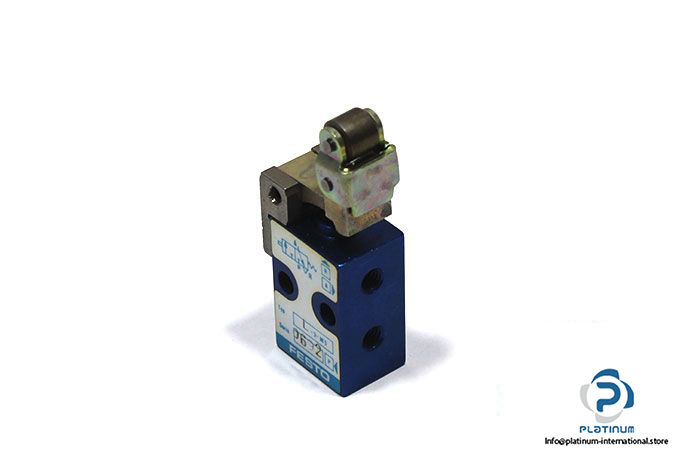

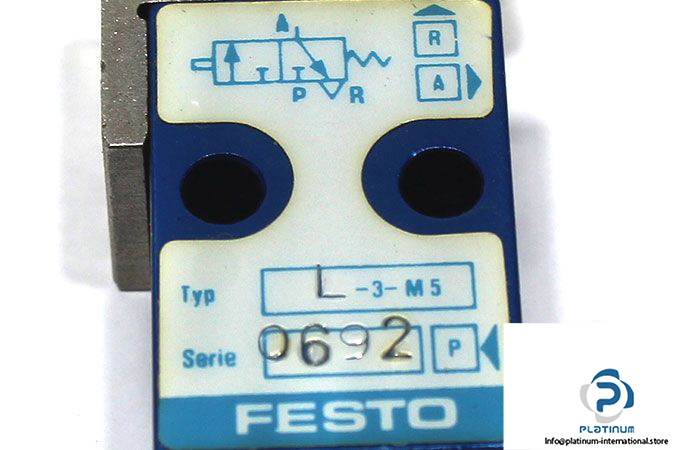

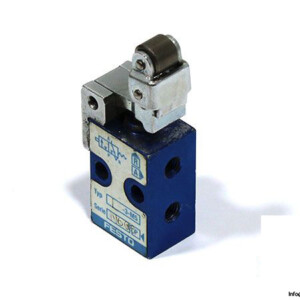

FESTO L-3-M5 TOGGLE LEVER VALVE WITH IDLE RETURN
The Festo L3M5 is a robust toggle lever valve with idle return, designed for high-performance pneumatic systems. This mechanically actuated valve provides precise control with a durable die-cast zinc body, making it ideal for industrial automation environments.
Manufacturer: FESTO
Type: Toggle Lever Valve with Idle Return
Model: L-3-M5
Part No.: 3628
| Fluid | Air |
| Design | Poppet seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Mechanically |
| Operating Pressure | -0.95 to 10 bar |
| Nominal Flow Rate | 80 l/min |
| Actuating Force | 16.5 N |
| Pneumatic Connection | M5 |
| Material | Die-cast zinc |
| Ambient Temperature | -10 to 60 °C |
