Festo 36358 Compact Cylinder
Used
In stock1 unitReady to ship
Compact Cylinder
FESTO DNG-63-40-PPV-A Compact Cylinder is a high-performance pneumatic actuator featuring a 40 mm stroke length and a 63 mm piston diameter. Designed for industrial applications, it includes adjustable pneumatic cushioning, a single-ended piston rod, and a double-acting mode for precision control.4063ActingActuatorAdjustableAutomationCompactCushioningCylinderDoubleFestohigh-performanceIndustrialmmPistonPneumaticStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

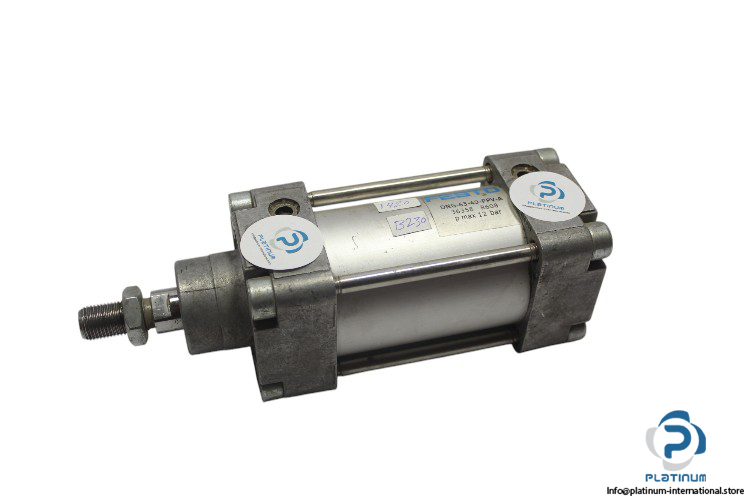

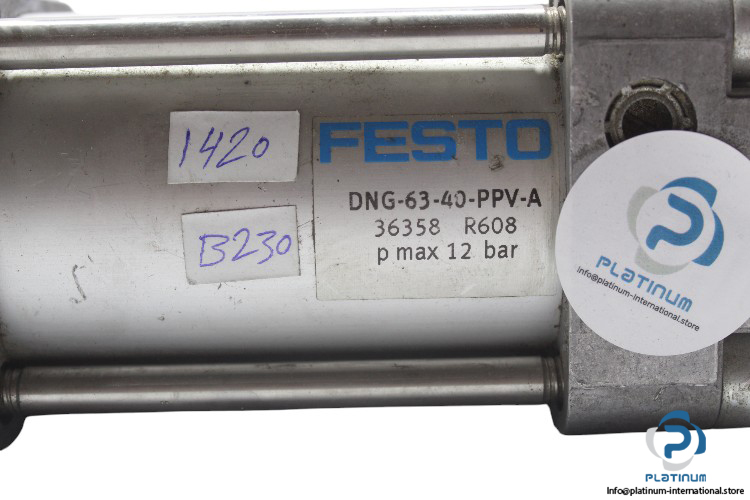

FESTO DNG-63-40-PPV-A Compact Cylinder
The FESTO DNG-63-40-PPV-A Compact Cylinder is a high-performance pneumatic actuator designed for industrial automation. Engineered with precision, it features a double-acting mode of operation with adjustable pneumatic cushioning for enhanced control. Built with a durable wrought aluminum alloy cylinder barrel, it ensures reliable performance in demanding applications.
- Manufacturer: FESTO
- Type: Compact Cylinder
- Model: DNG-63-40-PPV-A
- Part No.: 36358
Technical Specifications
- Stroke Length: 40 mm
- Piston Diameter: 63 mm
- Fluid: Air
- Cushioning: Pneumatic cushioning adjustable at both ends
- Position Sensing: For proximity sensor
- Variants: Single-ended piston rod
- Max. Operating Pressure: 12 bar
- Mode of Operation: Double Acting
- Material of Cylinder Barrel: Wrought aluminum alloy
- Pneumatic Connection: G3/8
- Ambient Temperature: -20 °C … 80 °C
