Festo 3660774 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO DSBC-40-320-D3-PPSA-N3 ISO Cylinder is engineered for high-precision pneumatic applications. Featuring a 40 mm bore diameter, 320 mm stroke, and double-acting operation, this durable cylinder ensures reliable motion control. Designed with a square profile and a male piston rod end, it is ideal for industrial automation and precision machinery.1/4320mm40mmactuatActuatorAutomationboreconnectionControlCylinderdouble-actingDSBC-40-320-D3-PPSA-N3FestoGhigh-performanceIndustrialISOMotionPneumaticSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

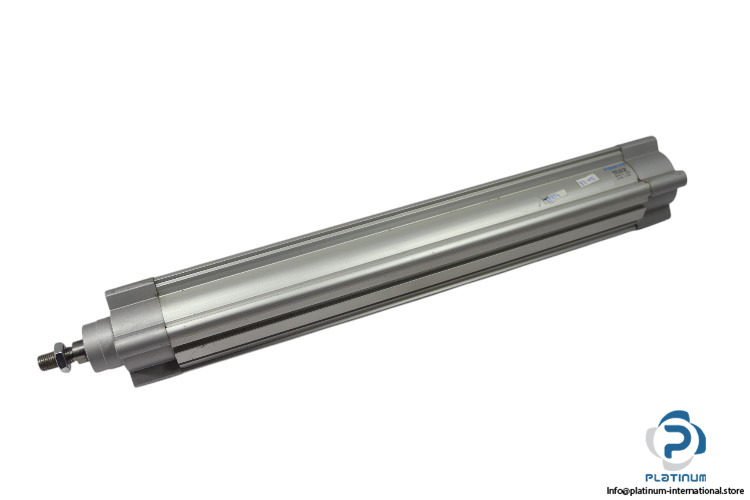

FESTO DSBC-40-320-D3-PPSA-N3 ISO Cylinder
The FESTO DSBC-40-320-D3-PPSA-N3 ISO Cylinder is a high-performance pneumatic actuator designed for precision motion control in industrial automation. Featuring a robust square-shaped design, this double-acting cylinder ensures efficient force transmission and long-term reliability in demanding applications.
Manufacturer: FESTO
Type: ISO Cylinder

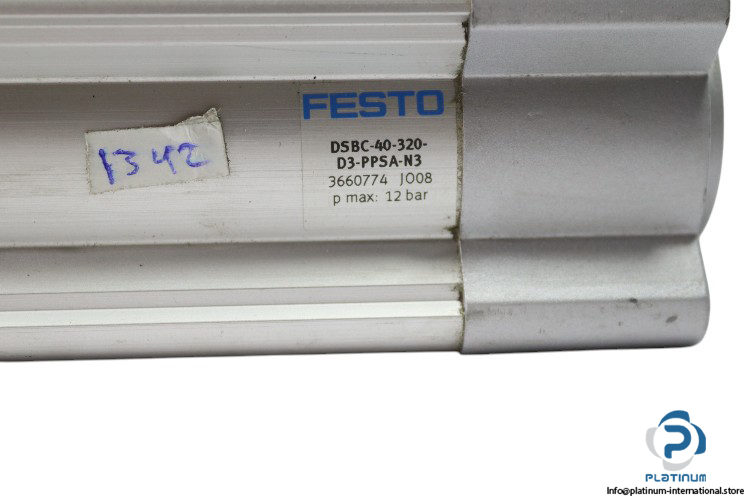

Model: DSBC-40-320-D3-PPSA-N3
Part No.: 3660774
| Media | Compressed Air |
| Bore Diameter | 40 mm |
| Stroke | 320 mm |
| Bore x Stroke | 40 x 320 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 51 x 450 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
