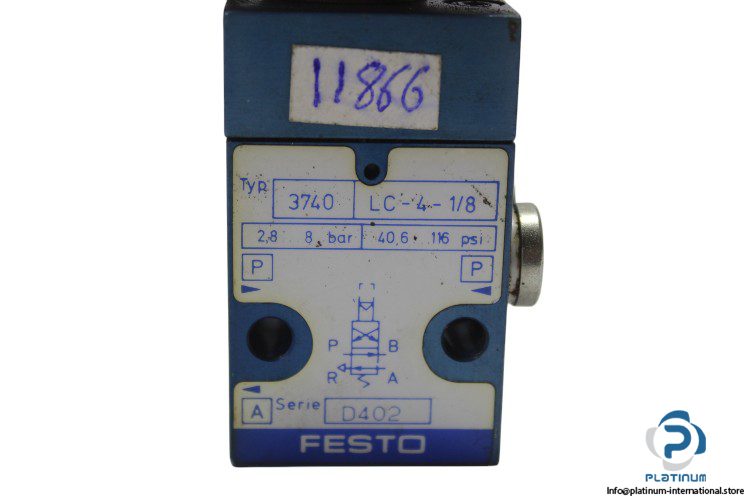

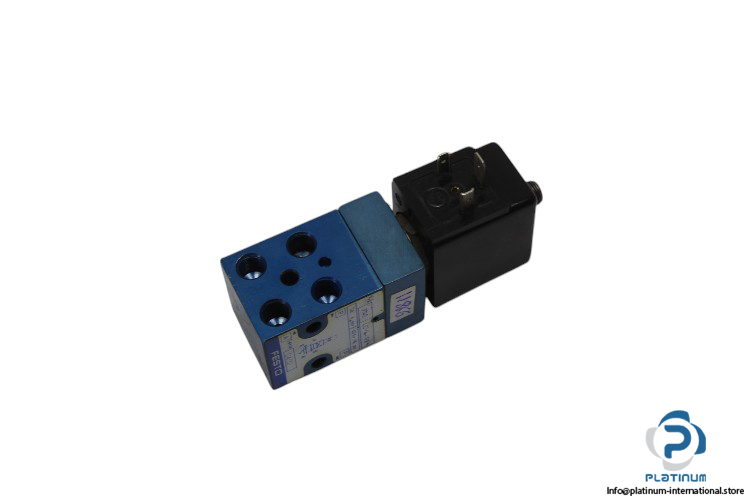

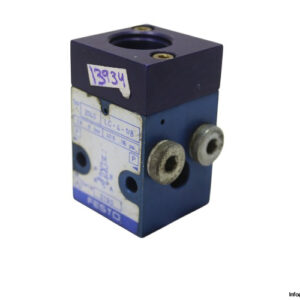

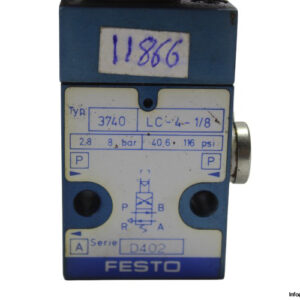

Festo 3740 Single Solenoid Valve
Single Solenoid Valve
The Festo LC-4-1/8 Single Solenoid Valve operates with compressed air at 2.8-8 bar. Featuring a 4/2 function and 24V DC actuation with the MSXG-24 solenoid coil, it ensures precise automation control.Festo LC-4-1/8 Single Solenoid Valve with Coil
The Festo LC-4-1/8 Single Solenoid Valve is a high-performance pneumatic control valve designed for precise fluid control in industrial applications. Engineered for use with compressed air, it features a 4/2 function with an operating pressure range of 2.8 to 8 bar. The valve is equipped with a durable blue anodized aluminum housing and comes with the Festo MSXG-24 Solenoid Coil for reliable actuation at 24V DC.
Manufacturer: Festo
Type: Single Solenoid Valve with Coil
Model: LC-4-1/8
Part No.: 3740

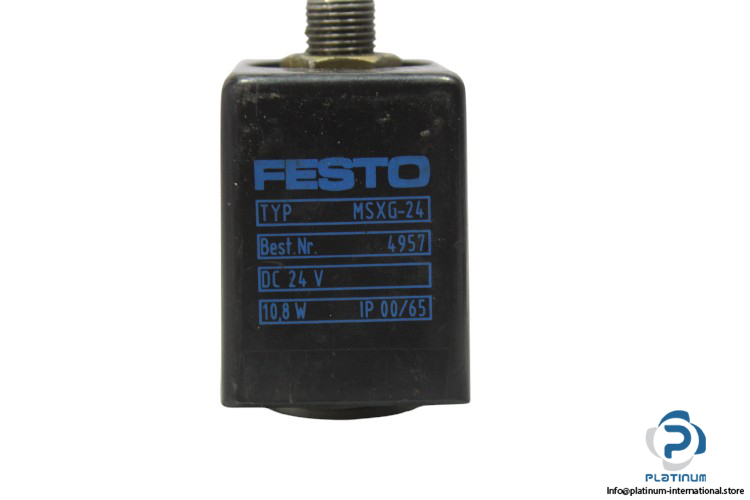

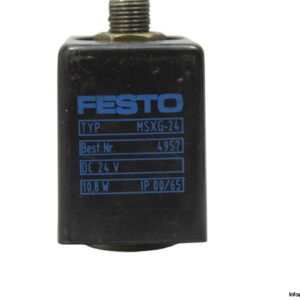

Solenoid Coil Information
Designed for precision and durability, the Festo LC-4-1/8 solenoid valve with the MSXG-24 coil ensures efficient pneumatic control, making it ideal for industrial automation systems.
| Fluid | Compressed Air |
| Type of Actuation | Electrical |
| Operating Pressure | 2.8 to 8 bar (40.6 to 116 PSI) |
| Nominal Flow Rate | 120 l/min |
| Nominal Size | 3.5 mm |
| Function | 4/2 |
| Port Size | G1/8 |
| Housing Material | Blue Anodized Aluminum |
| Temperature Range | -10 to 60 °C |
| Part No. | 4957 |
| Voltage | 24 V DC |
| Power | 10.8 W |
| Protection Degree | IP00/65 |
