Festo 43281 Single Solenoid Valve

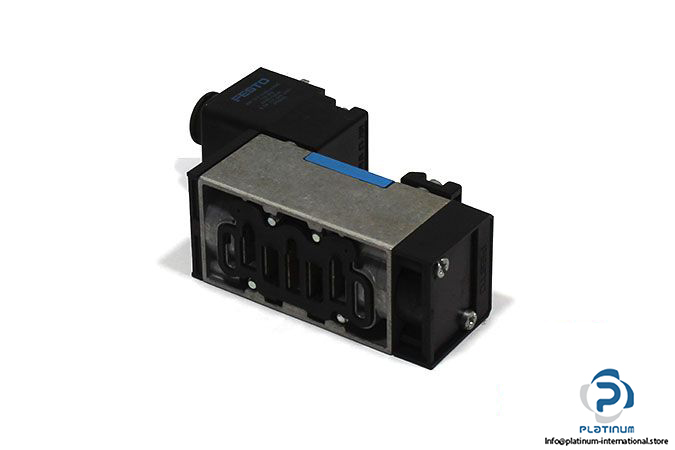

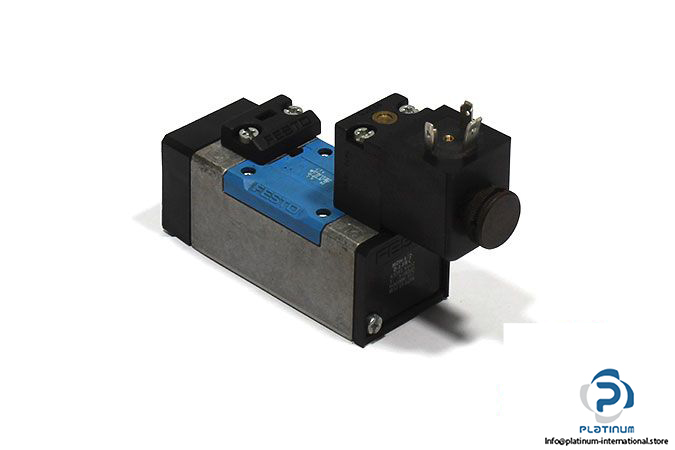

FESTO MDH-5/2-D-1-FR-C SINGLE SOLENOID VALVE WITH COIL

The FESTO MDH-5/2-D-1-FR-C is a high-performance single solenoid valve designed for reliable pneumatic applications. Built with durable die-cast aluminium, it features a 5/2-way function, electrical actuation, and operates within a wide pressure and temperature range. Supplied with the FESTO 119603 solenoid coil for efficient voltage compatibility and protection.

Manufacturer: FESTO
Type: Single Solenoid Valve

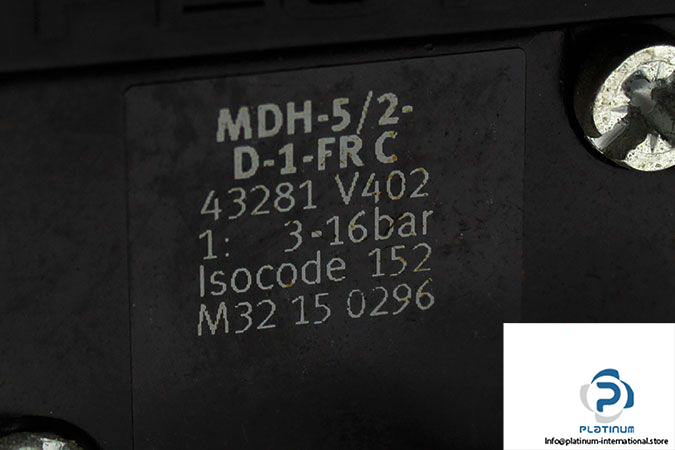

Model: MDH-5/2-D-1-FR-C
Part No.: 43281

Valve Technical Information

• Fluid: Air

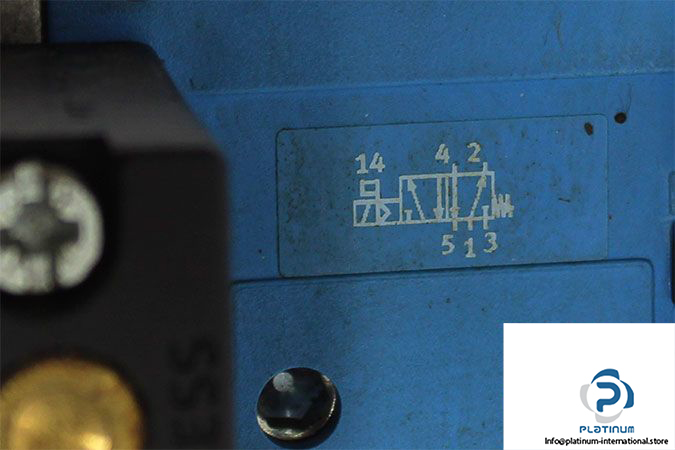

• Function: 5/2 way
• Type of Actuation: Electrically
• Operating Pressure: 3 … 16 bar
• Pneumatic Connection: Sub-Base
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 50 °C

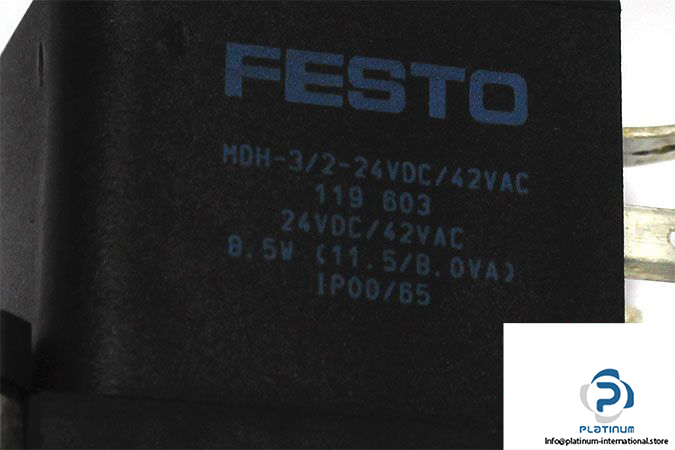

Solenoid Coil Attachment: FESTO 119603

Manufacturer: FESTO
Type: Solenoid Coil
Model: MDH-3/2-24VDC/42VAC
Part No.: 119603

Coil Technical Information

• Supply Voltage: 24 V DC / 42 V AC
• Power Consumption: 8.5 W / 11.5 / 8 VA
• Protection Class: IP00 / IP65
