Festo 5065 ISO Cylinder
New
In stock34 unitsReady to ship
Festo DSN-20-10P ISO Cylinder “ Compact pneumatic actuator with 10 mm stroke and 20 mm piston diameter. Double-acting, high-performance build with G1/8 port and 10 bar pressure rating.
10ActingactuatActuatorAlloyAutomationbarboreCompactCylinderDoubleDSN-20-10PFestoG1/8HighIndustrialISONon-CorrosivePneumaticShortSmallSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

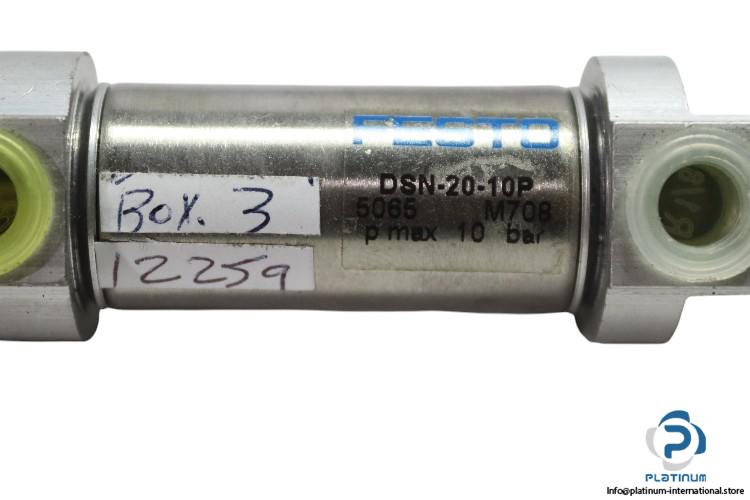

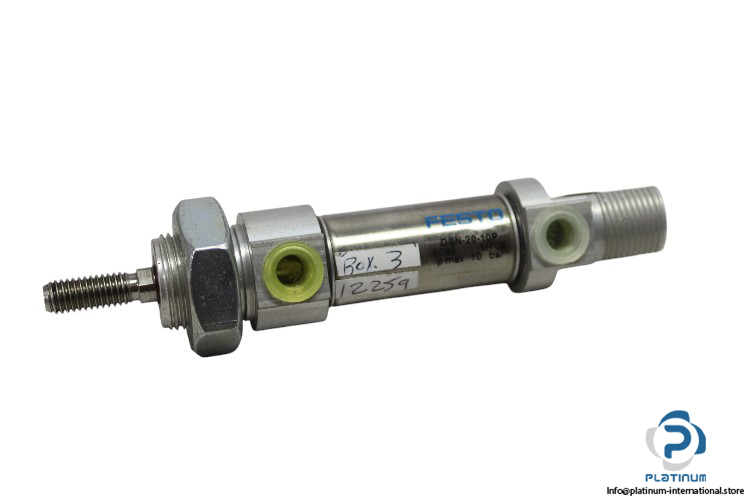

Festo DSN-20-10P ISO Cylinder “ Part No. 5065
The Festo DSN-20-10P is a compact and reliable ISO cylinder designed for precise linear motion in pneumatic systems. With a short 10 mm stroke and robust construction, it ensures efficient performance in automation setups operating under high pressure and variable temperatures.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSN-20-10P
Part No.: 5065
| Stroke | 10 mm |
| Piston Diameter | 20 mm |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double-Acting |
| Operating Medium | Compressed Air |
| Ambient Temperature | -20 to 80 °C |
| Pressure | Max. 10 bar |
| Material “ Cover | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High Alloy Steel, Non-Corrosive |
| Material “ Cylinder Barrel | High Alloy Steel, Non-Corrosive |
