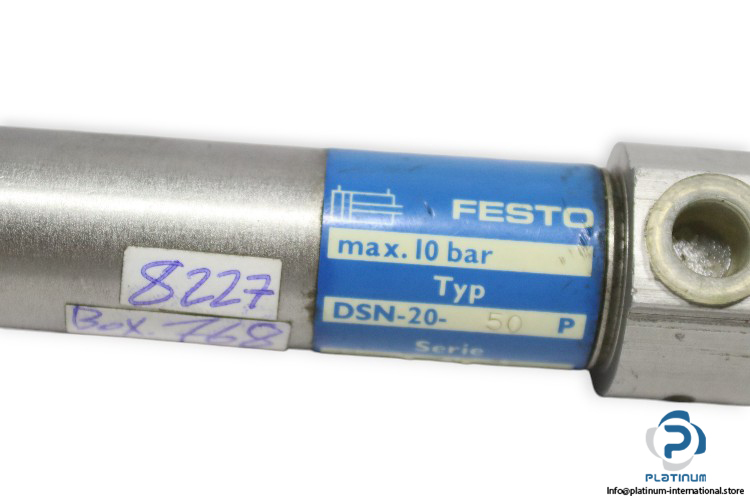

Festo 5068 ISO Cylinder

Manufacturer: FESTO
Type: ISO cylinder
Model: DSN-20-50 P
Part No.: 5068

Stroke: 50 mm
Piston diameter: 20 mm
Piston rod thread: M8
Cushioning P: Flexible cushioning rings/plates at both ends Piston-rod end: Male thread
Variants: Single-ended piston rod
Operating pressure: 1 … 10 bar
Mode of operation: double-acting
Operating medium: Compressed air
Ambient temperature: -20 … 80 °C
Impact energy in end positions: 0.2 J
Pneumatic connection: G1/8
Materials information for cover: Wrought Aluminium alloy
Materials information for piston rod: High alloy steel, non-corrosive
