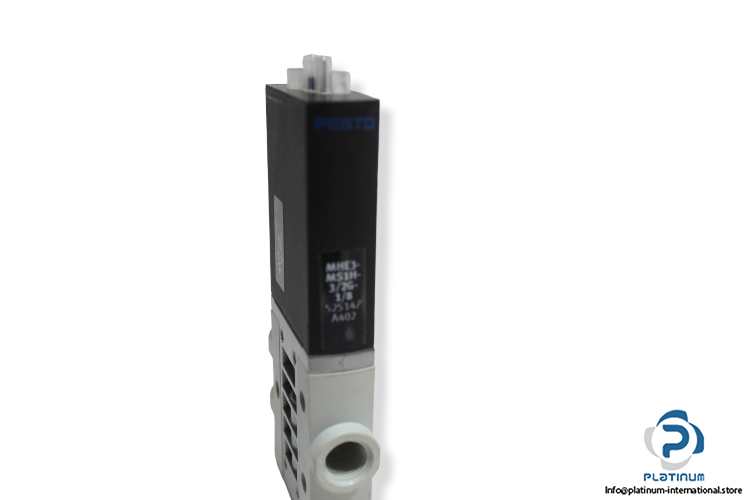

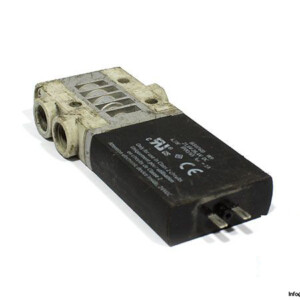

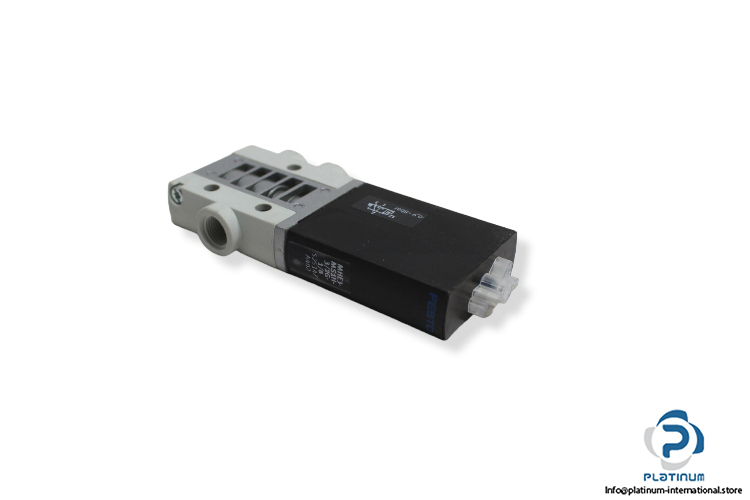

Festo 525147 Single Solenoid Valve
New
Available on request
SINGLE SOLENOID VALVE
FESTO MHE3-MS1H-3/2G-1/8 single solenoid valve with IP65-rated 650768 coil, features a monostable 5/2-way function and pressure-relieved poppet design.5/2-Way650768AircoilControlFestoG1/8IndustrialMHE3-MS1H-3/2G-1/8PneumaticPoppetPressure-RelievedSinglesolenoidValve
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO MHE3-MS1H-3/2G-1/8 SINGLE SOLENOID VALVE WITH COIL
The FESTO MHE3-MS1H-3/2G-1/8 is a precision-engineered single solenoid valve designed for fast and efficient control in pneumatic applications. Built with a pressure-relieved poppet valve design and monostable 5/2-way function, it offers reliable operation in demanding industrial environments. This unit comes with the FESTO 650768 solenoid coil, ensuring accurate voltage control and long service life.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MHE3-MS1H-3/2G-1/8
Part No.: 525147
| Fluid | Air |
| Design | Pressure-relieved poppet valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 to 8 bar |
| Nominal Flow Rate | 200 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast zinc, coated |
| Ambient Temperature | -5 to 60 °C |
| Attachment | FESTO 650768 Solenoid Coil |
| Part No. | 650768 |
| Supply Voltage | 21.6 to 26.4 V DC |
| Power Consumption | 6.5 W |
| Protection Class | IP00 / IP65 |
