Festo 527682 On/Off Valve
Used
In stock1 unitReady to ship
ON/OFF VALVE WITH SOLENOID COIL
FESTO MS6-EE-AGD-V24-S on/off valve features 3/2-way monostable function, piston gate design, and 24 V DC solenoid coil for reliable pneumatic control.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

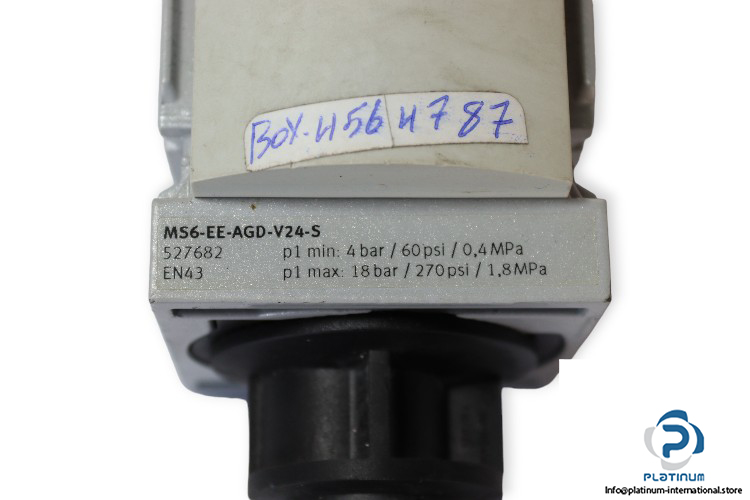

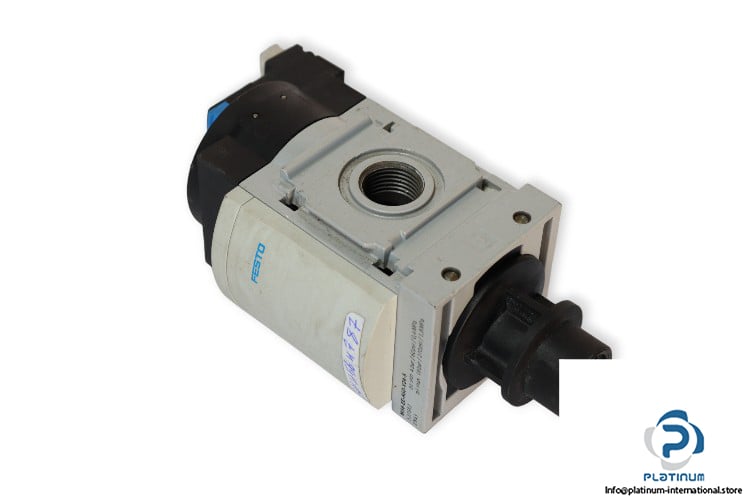

FESTO MS6-EE-AGD-V24-S ON/OFF VALVE WITH SOLENOID COIL
The FESTO MS6-EE-AGD-V24-S is a high-performance 3/2-way on/off valve with monostable function and electric actuation. Designed with a robust piston gate valve and die-cast aluminum body, it offers efficient airflow and reliable operation across a wide pressure range. This unit includes the FESTO MSEB-3-24V DC solenoid coil for enhanced electrical control.
Manufacturer: FESTO
Type: On/Off Valve
Model: MS6-EE-AGD-V24-S
Part No.: 527682
Valve Technical Information
- Fluid: Air / Inert Gases
- Design: Piston Gate Valve
- Function: 3/2-Way, Closed, Monostable
- Type of Actuation: Electrically
- Operating Pressure: 4 … 18 bar
- Nominal Flow Rate: 2600 … 7000 l/min
- Pneumatic Connection: G1/2
- Material: Die-Cast Aluminum
- Ambient Temperature: -10 … 60 °C

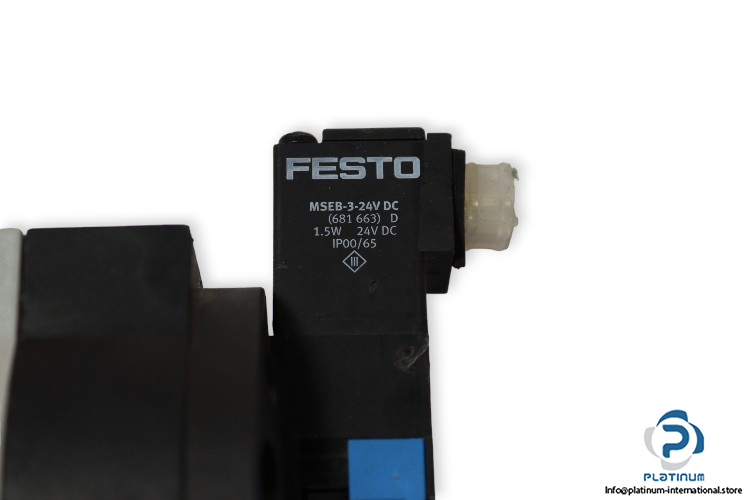

Solenoid Coil Attachment: FESTO MSEB-3-24V DC
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 681663
Solenoid Coil Technical Information
- Supply Voltage: 24 V DC
- Power Consumption: 1.5 W
- Protection Class: IP00 / IP65
