Festo 529158 Filter Regulator
Used
In stock1 unitReady to ship
FILTER REGULATOR ASSEMBLY
FESTO MS4-LFR-1/4-D7-ERV-AS filter regulator with integrated shut-off, on/off, soft start valves, and pressure switch for advanced air system regulation.24vassemblyFestofilterMS4-LFR-1/4-D7-ERV-ASOffOn/OffPEV-1/4-B-ODPneumaticPressureregulatorShutSoftStartSwitchUnitValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

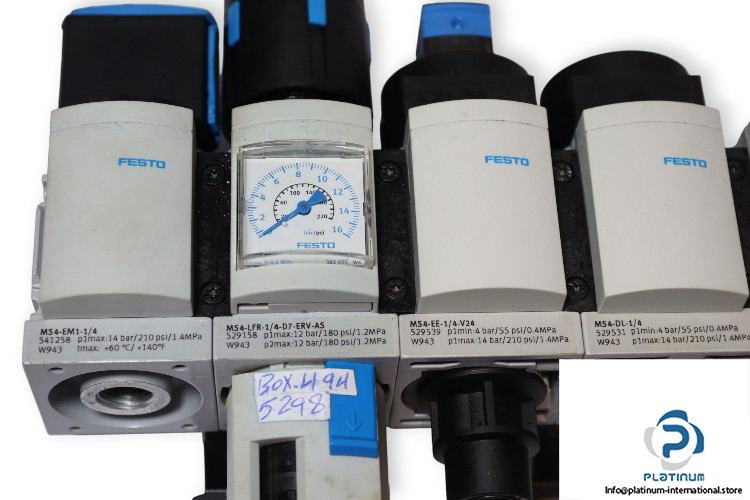

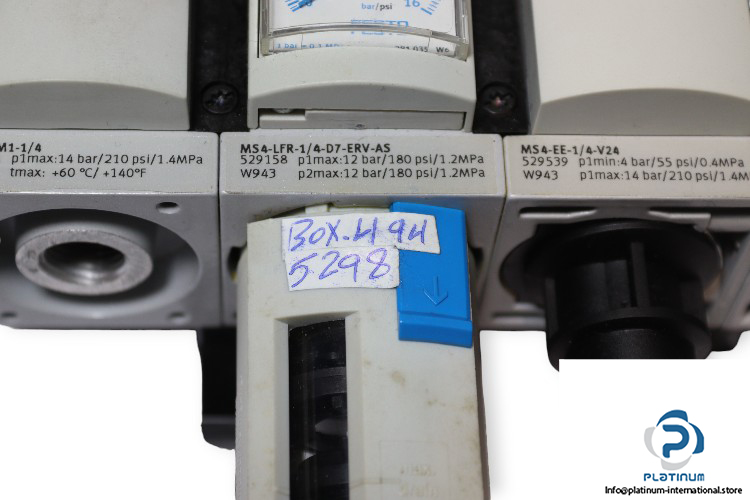

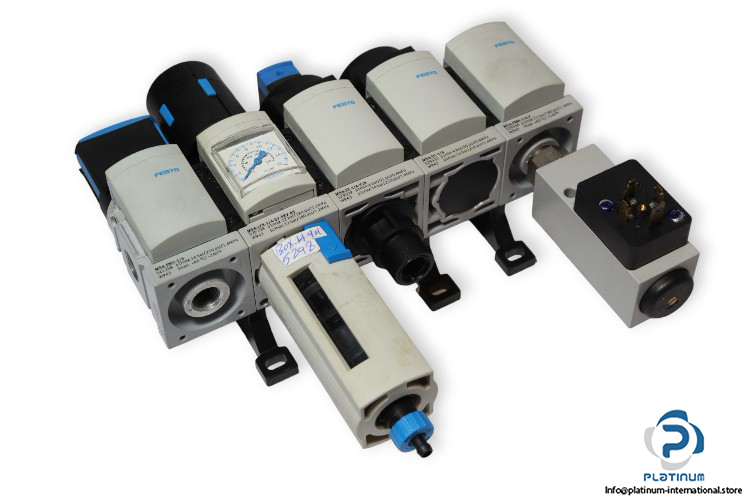

FESTO MS4-LFR-1/4-D7-ERV-AS FILTER REGULATOR WITH ASSEMBLY UNIT
FESTO MS4-LFR-1/4-D7-ERV-AS is a high-performance filter regulator equipped with multiple integrated components for precise air preparation. This modular unit includes shut-off, on/off, soft start valves, and a pressure switch for enhanced pneumatic system control.
Manufacturer: FESTO
Type: Filter Regulator
Model: MS4-LFR-1/4-D7-ERV-AS
Part No.: 529158
| Pneumatic Connection 1 | G1/4 |
| Standard Nominal Flow Rate | 1500 l/min |
| Pressure Regulation Range | 0.5 / 12 bar |
| Filtration Grade | 40 micron |
| Attachment | FESTO Shut Off Valve |
| Part No. | 541258 |
| Pneumatic Connection 1 | G1/4 |
| Standard Nominal Flow Rate | 2200 l/min |
| Operating Pressure | 0 / 14 bar |
| Actuation Type | Manual |
| Attachment | FESTO On/Off Valve |
| Part No. | 529539 |
| Fluid | Compressed Air |
| Type of Actuation | Electrically |
| Operating Pressure | 4 / 14 bar |
| Standard Nominal Flow Rate | 2000 l/min |
| Supply Voltage | 24 V DC |
| Pneumatic Connection | G1/4 |
| Material | Aluminium Die Cast |
| Ambient Temperature | -10 / 60 °C |

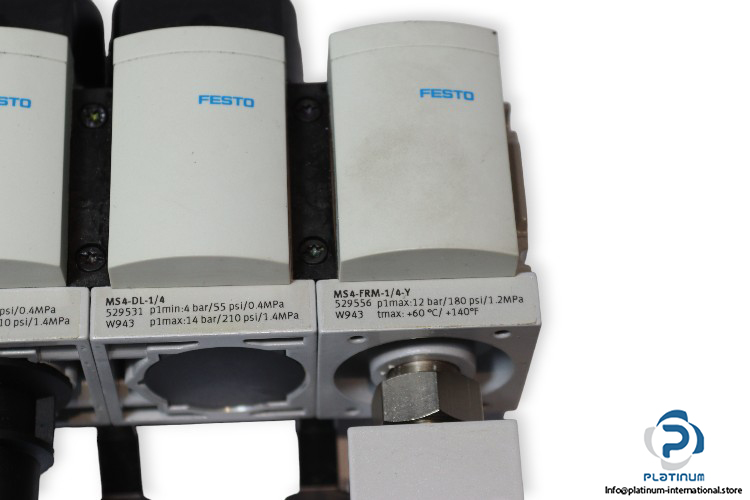

| Attachment | FESTO Soft Start Valve |
| Part No. | 529531 |
| Pneumatic Connection 1 | G1/4 |
| Standard Nominal Flow Rate | 2000 l/min |
| Operating Pressure | 4 / 14 bar |
| Actuation Type | Pneumatic |
| Attachment | FESTO Soft Start Valve |
| Part No. | 529556 |
| Pneumatic Connection 1 | G1/4 |
| Standard Nominal Flow Rate in Main Flow Direction | 4600 l/min |
| Operating Pressure | 0 / 12 bar |

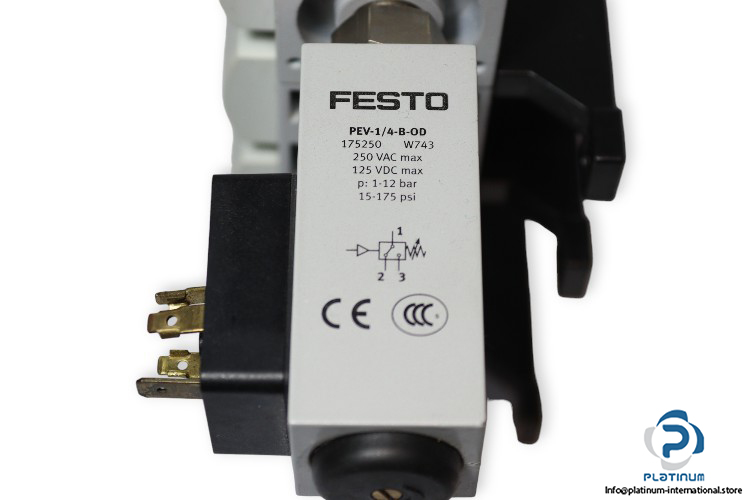

| Attachment | FESTO Pressure Switch |
| Part No. | 175250 |
| Operating Pressure | 1 / 12 bar |
| Operating Medium | Compressed Air |
| Max. Switching Output Voltage AC | 250 V |
| Max. Switching Output Voltage DC | 125 V |
| Max. Output Current | 5000 mA |
