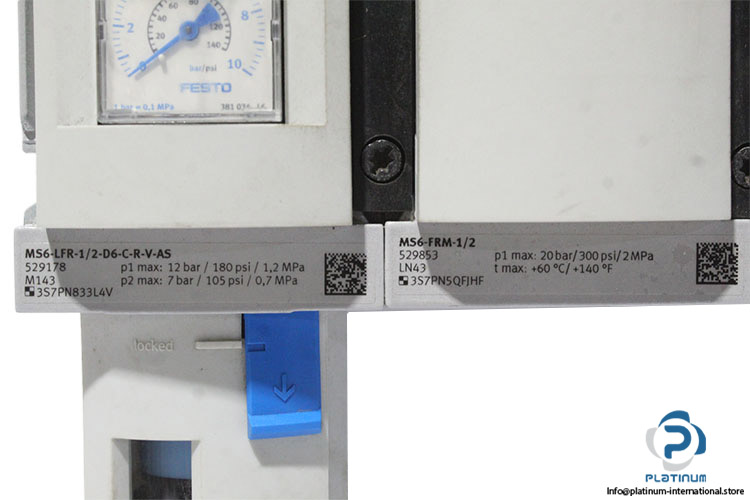

Festo 529178 Filter Regulator
New
In stock1 unitReady to ship

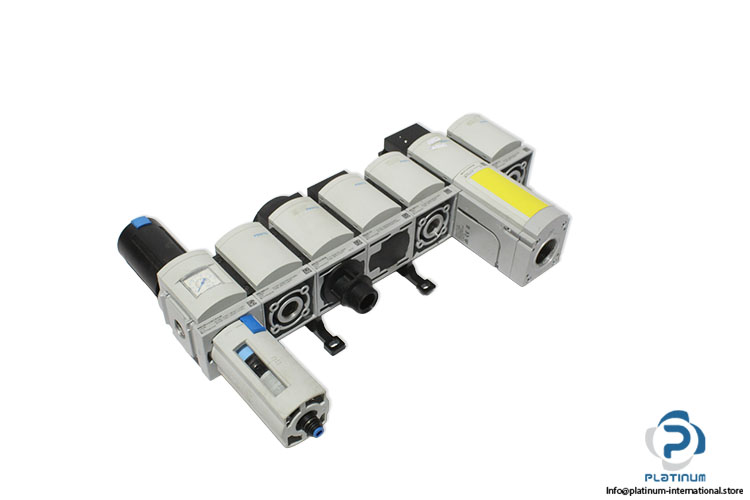

FESTO MS6 Pneumatic Air Preparation Unit Complete FESTO MS6 modular pneumatic air preparation system designed for filtration, pressure regulation, shut-off control, soft start, quick exhaust, and compressed air distribution in industrial automation applications.
AirBranchingcoilCompressedControlExhaustFestofilterInduModuleMS6OffOnPneumaticPreparationPressureQuickregulatorSoftsolenoidStartSystemUnitValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 529178 |
| Series | MS |
| Size | 4 |

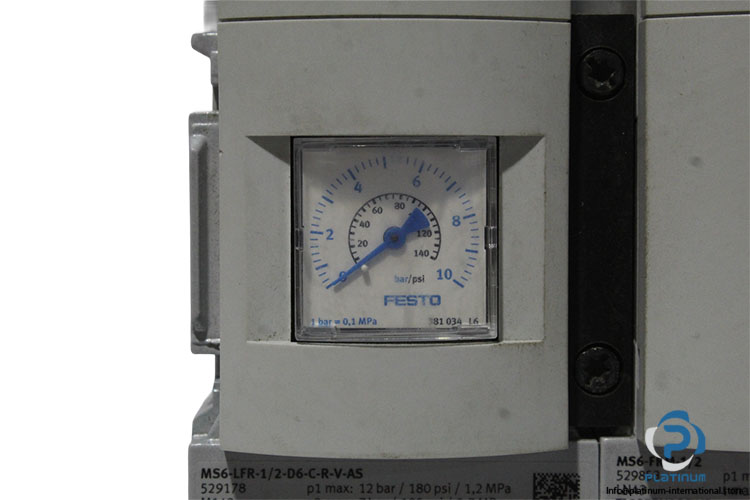

| Design | Filter Regulator with Pressure Gauge |
| Fluid | Compressed Air / Inert Gas |
| Operating Pressure | 0.8 ... 14 bar / 0.08 ... 1.4 MPa / 210 PSI |
| Pressure Regulation Range | 0.3 ... 7 bar |
| Nominal Flow Rate | 5600 l/min |
| Grade of Filtration | 5 µm |
| Actuator Lock | Rotary Knob with Detent |
| Pneumatic Connection Port 1-2 | G1/2 |
| Material | Die-Cast Aluminium |
| Ambient Temperature | -10 ... 60 °C |

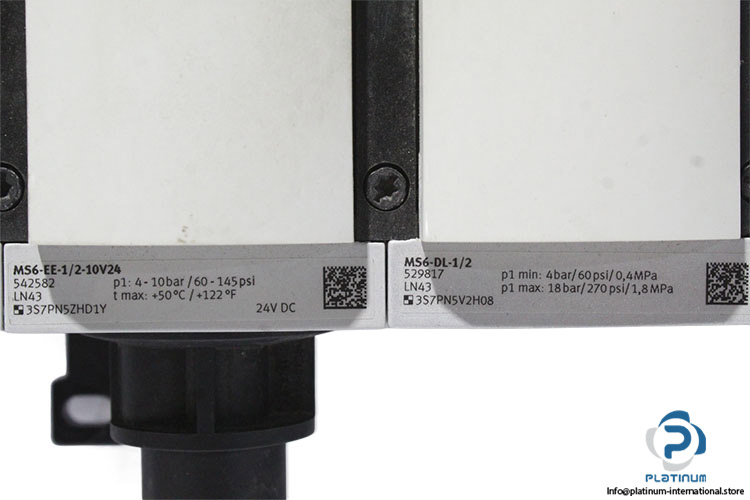

| Attachment 1 | FESTO 542582 ON/OFF VALVE |
| On/Off Valve Manufacturer | FESTO |
| Attachment 1 Type | On/Off Valve |
| On/Off Valve Model | MS6-EE-1/2-10V24 |
| On/Off Valve Part No. | 542582 |
| On/Off Valve Fluid | Air |
| On/Off Valve Design | Piston Gate Valve |
| On/Off Valve Function | 3/2-Way, Closed, Monostable |
| On/Off Valve Type of Actuation | Electrically |
| On/Off Valve Operating Pressure | 4 … 10 bar / 60 … 145 psi |
| On/Off Valve Nominal Flow Rate | 7000 l/min |
| On/Off Valve Supply Voltage | 24 V DC |
| On/Off Valve Pneumatic Connection | G1/2 |
| On/Off Valve Material | Die-Cast Aluminum |
| On/Off Valve Seals Material | NBR |
| On/Off Valve Ambient Temperature | -10 … 60 °C |
| Attachment 3 | FESTO 529817 SOFT START VALVE |
| Soft Start Valve Manufacturer | FESTO |
| Attachment 3 Type | Soft Start Valve |
| Soft Start Valve Model | MS6-DL-1/2 |
| Soft Start Valve Part No. | 529817 |
| Soft Start Valve Fluid | Air |
| Soft Start Valve Design | Piston Seat |
| Soft Start Valve Function | 2/2-Way |
| Soft Start Valve Type of Actuation | Pneumatically |
| Soft Start Valve Operating Pressure | 4 … 18 bar |
| Soft Start Valve Nominal Flow Rate | 6450 l/min |
| Soft Start Valve Pneumatic Connection | G1/2 |
| Soft Start Valve Material | Die-Cast Aluminum |
| Soft Start Valve Seals Material | NBR |
| Soft Start Valve Ambient Temperature | -10 … 60 °C |

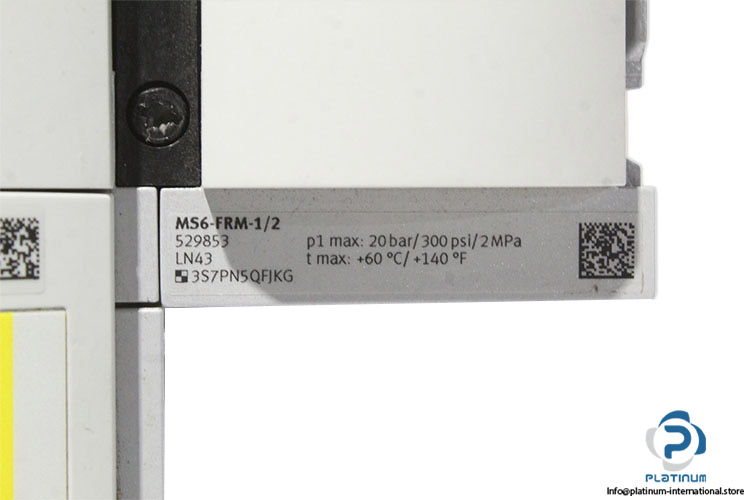

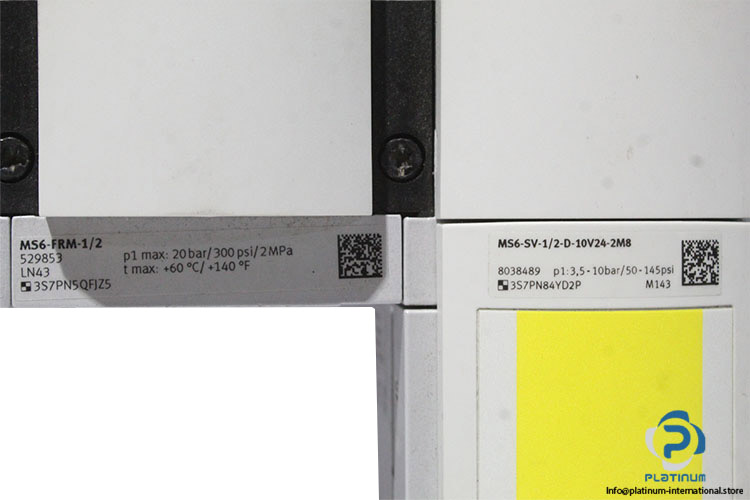

| Attachment 4 | FESTO 529853 BRANCHING MODULE |
| Branching Module Manufacturer | FESTO |
| Attachment 4 Type | Branching Module |
| Branching Module Model | MS6-FRM-1/2 |
| Branching Module Part No. | 529853 |
| Branching Module Fluid | Air |
| Branching Module Working Pressure Max. | 2 MPa / 20 bar / 300 PSI |
| Branching Module Nominal Flow Rate In Main Flow Direction | 14,700 l/min |
| Branching Module Standard Nominal Flow Rate Outlet at Top | 4,400 l/min |
| Branching Module Standard Nominal Flow Rate Outlet Down | 4,600 l/min |
| Branching Module Pneumatic Connection | G1/2 , Threaded |
| Branching Module Supply Voltage | 250 V AC, 125 V DC |
| Branching Module Fluid Temperature Range | -10 … 60°C |

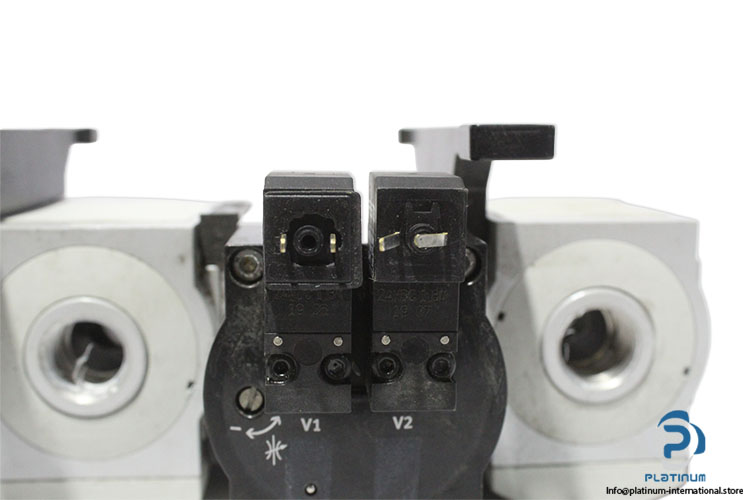

| Attachment 5 | FESTO 8038489 SOFT START/QUICK EXHAUST VALVE |
| Quick Exhaust Valve Manufacturer | FESTO |
| Attachment 5 Type | Soft Start/Quick Exhaust Valve |
| Quick Exhaust Valve Model | MS6-SV-1/2-D-10V24-2M8 |
| Quick Exhaust Valve Part No. | 8038489 |
| Quick Exhaust Valve Series | MS |
| Quick Exhaust Valve Size | 6 |
| Quick Exhaust Valve Fluid | Air |
| Quick Exhaust Valve Function | 3/2, Closed, Monostable |
| Quick Exhaust Valve Structural Design | Piston Seat |
| Quick Exhaust Valve Lap | Underlap |
| Quick Exhaust Valve Actuation Type | Electrical |
| Quick Exhaust Valve Pilot Air Supply Port | Internal |
| Quick Exhaust Valve Operating Pressure | 3.5 ... 10 bar / 0.35 ... 1 MPa |
| Quick Exhaust Valve Nominal Flow Rate | 4300 l/min |
| Quick Exhaust Valve Supply Voltage | 24 V DC |
| Quick Exhaust Valve Pneumatic Connection | G1/2, G1 |
| Quick Exhaust Valve Electrical Connection | 2-Pin 2x Plug Connector |
| Quick Exhaust Valve Electrical Connection Proximity Sensor | 2x Cable With Plug Connector 3-Pin M8 Rotatable Thread |
| Quick Exhaust Valve Material | Die-Cast Aluminum |
| Quick Exhaust Valve Seals Material | NBR |
| Quick Exhaust Valve Ambient Temperature | -10 … 50 °C |

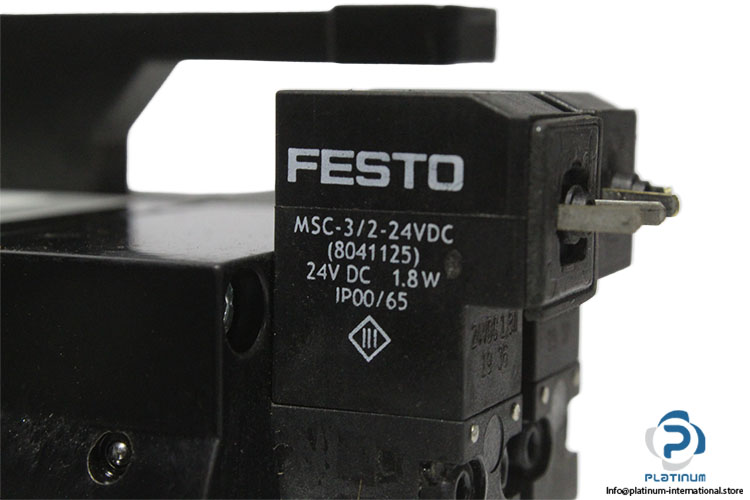

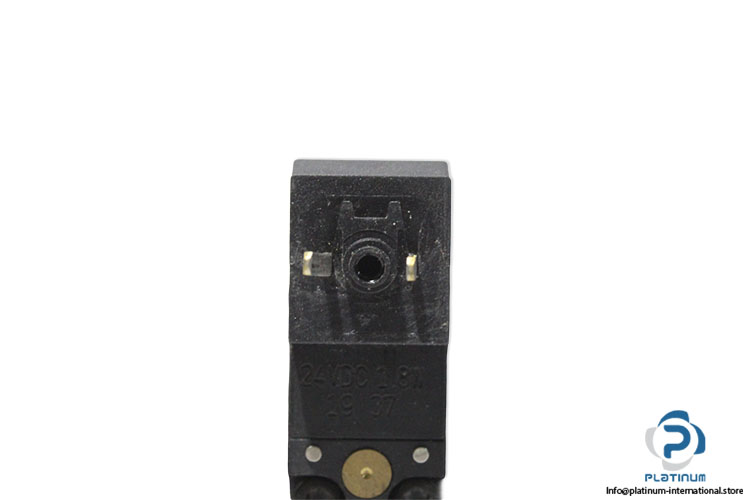

| Attachment 6 | FESTO 8041125 SOLENOID COIL |
| Solenoid Coil Manufacturer | FESTO |
| Attachment 6 Type | Solenoid Coil 1 |
| Solenoid Coil Model | MSC-3/2-24VDC |
| Solenoid Coil Part No. | 8041125 |
| Solenoid Coil Supply Voltage | 24 V DC |
| Solenoid Coil Power Consumption | 1.8 W |
| Protection Class | IP00/ IP65 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102005 |
| Weight | 5,80 |
