Festo 529184 Filter Regulator
Used
In stock1 unitReady to ship
Filter Regulator
Festo MS6 series filter regulator with 5 µm filtration, integrated pressure gauge, and high flow capacity for industrial pneumatic systems.AirComponentCompressedFestofilterIndustrialmsMS6-LFR-1/2-D7-C-R-M-ASPneumaticPreparationPressureRegulationregulatorSeriesSystemUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

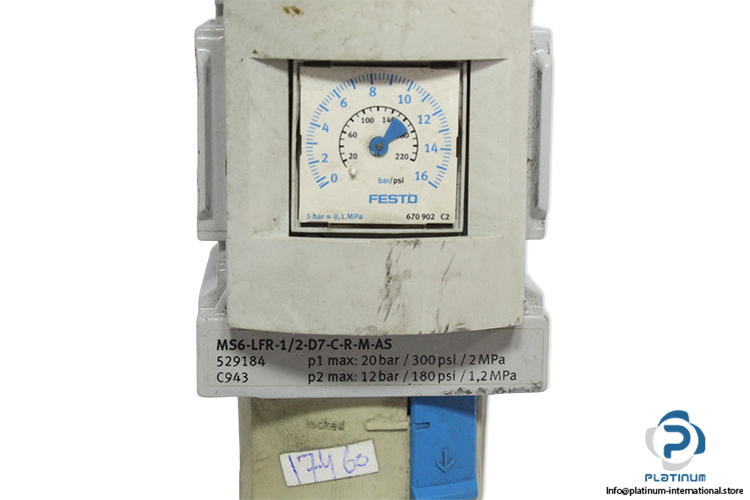

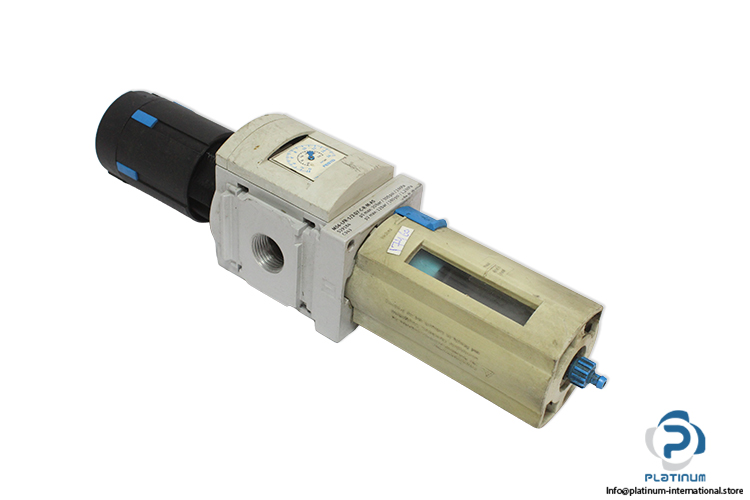

Festo MS6-LFR-1/2-D7-C-R-M-AS Filter Regulator
A high-capacity filter regulator manufactured by Festo, designed to combine compressed air filtration and precise pressure regulation in industrial pneumatic systems. This MS series size 6 unit is engineered for high flow performance, stable pressure control, and reliable operation across a wide pressure and temperature range.
Manufacturer: Festo
Type: Filter Regulator
Model: MS6-LFR-1/2-D7-C-R-M-AS
Part No.: 529184
Code: C943
| Size | 6 |
| Series | MS |
| Actuator Lock | Rotary knob with detent, can be closed with accessories |
| Grade of Filtration | 5 µm |
| Condensate Drain | Manually rotating |
| Structural Design | Filter regulator with pressure gauge |
| Max. Condensate Volume | 38 ml |
| Bowl Guard | Plastic bowl guard |
| Pressure Gauge | With pressure gauge |
| Operating Pressure | 0.8 bar to 20 bar |
| Pressure Regulation Range | 0.5 bar to 12 bar |
| Max. Pressure Hysteresis | 0.25 bar |
| Normal Nominal Flow Rate | 4000 l/min |
| Operating Medium | Inert gas |
| Temperature of Medium | -10 °C to 60 °C |
| Ambient Temperature | -10 °C to 60 °C |
| Pneumatic Connection | G 1/2 |
| Seals Material | NBR |
| Compressed Air Filter Material | PE |
| Housing Material | Die-Cast Aluminum |
| Attachment “ FESTO 670902 C2 PRESSURE GAUGE Manufacturer | Festo |
| Part No. | 670902 |
| Pressure Range | 0 to 16 bar |
