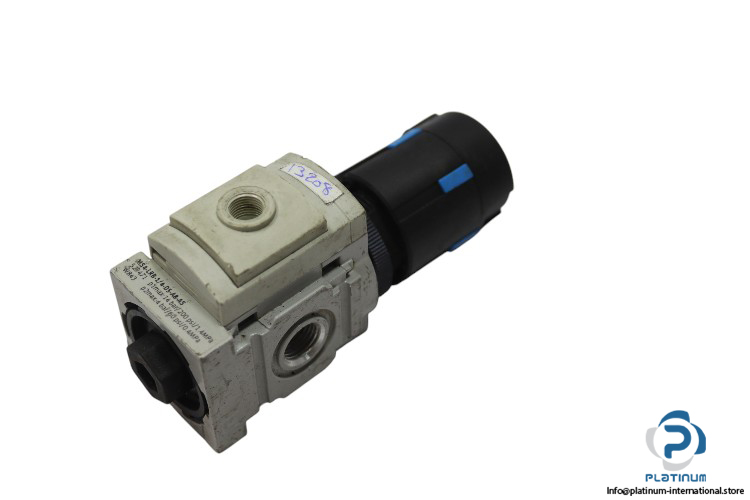

Festo 529471 Pressure Regulator

FESTO MS4-LRB-1/4-D5-A8-AS PRESSURE REGULATOR

The FESTO MS4LRB14D5A8AS Pressure Regulator is designed for precise and reliable pressure control in pneumatic systems. Suitable for compressed air and inert gases, this compact unit delivers excellent performance with high flow capacity and robust construction. Ideal for use in a wide range of industrial environments.

Manufacturer: FESTO

Type: Pressure Regulator

Model: MS4-LRB-1/4-D5-A8-AS

Part No.: 529471

Fluid: Compressed Air / Inert Gas

Pressure Regulation Range: 0.3 … 4 bar

Operating Pressure Max.: 14 bar

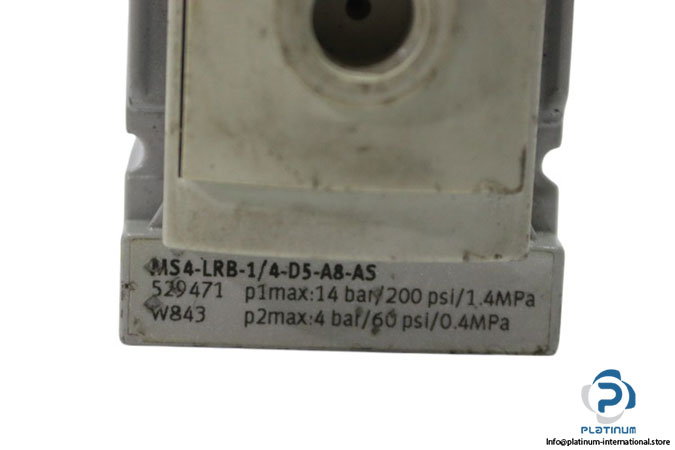

P1 Max.: 14 bar / 200 PSI / 1.4 MPa

P2 Max.: 4 bar / 60 PSI / 0.4 MPa

Nominal Flow Rate: 1900 l/min

Pneumatic Connection: G 1/4

Material: Die-Cast Aluminium

Ambient Temperature: -10 … 60 °C
