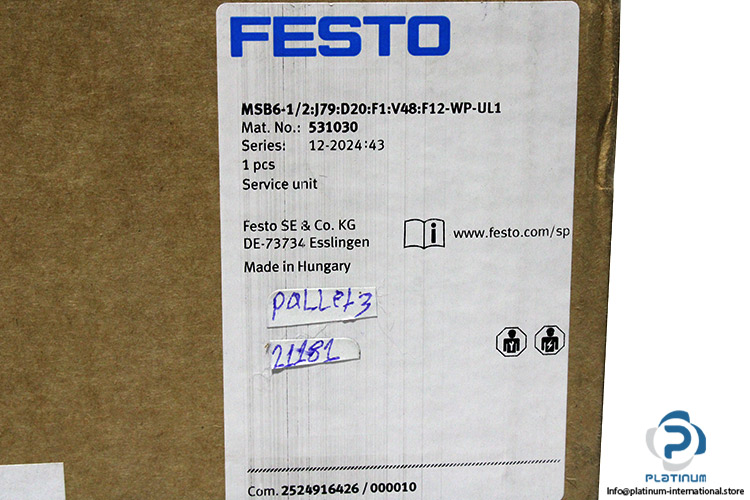

Festo 531030 Service Unit
New
In stock1 unitReady to ship
699,99$

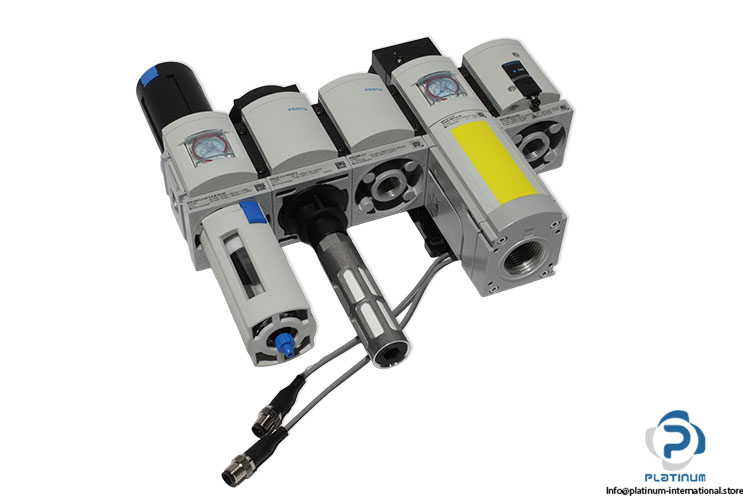

Service Unit Combination Festo MSB6-1/2 modular service unit combination integrating filter regulator, on/off valve, branching modules, and soft start/quick exhaust valve for compressed air systems.
AirBranchingCompressedExhaustFestofilterIndustrialModulemsMSB6-1/2OffOnpneumatPneumaticPreparationQuickregulatorSeriesServiceSoftStartSystemUnitValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 531030 |
| Size | 6 |
| Filtration Grade | 1 micron |
| Length | 82 mm |
| Inner Diameter | 8 mm |
| Outer Diameter/Width | 31 mm |

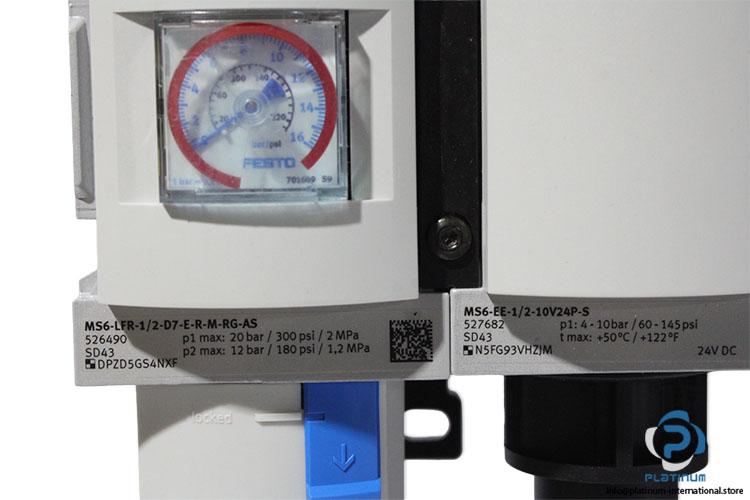

| Attachment 1 | FESTO 526490 FILTER REGULATOR |
| Filter Regulator Manufacturer | FESTO |
| Attachment 1 Type | Filter Regulator |
| Filter Regulator Model | MS6-LFR-1/2-D7-E-R-M-RG-AS |
| Filter Regulator Part No. | 526490 |
| Filter Regulator Media | Compressed Air |
| Filter Regulator Size | 6 |
| Filter Regulator Actuator Lock | Rotary Knob with Detent |
| Filter Regulator Operating Pressure | 0.8 … 20 bar |
| Filter Regulator Pressure Regulation Range | 0.3 … 12 bar |
| Filter Regulator Pressure Max. | 20 bar |
| Filter Regulator Filtration Grade | 5 … 40 µm |
| Filter Regulator Flow Rate | 2000 … 7200 l/min |
| Filter Regulator Housing Material | Die-Cast Aluminum |
| Filter Regulator Temperature Range | -10 … 60°C |
| Attachment 2 | FESTO 527682 ON/OFF VALVE |
| On/Off Valve Manufacturer | FESTO |
| Attachment 2 Type | On/Off Valve |
| On/Off Valve Model | MS6-EE-1/2-10V24P-S |
| On/Off Valve Part No. | 527682 |
| On/Off Valve Fluid | Air |
| On/Off Valve Design | Rotary Gate Valve |
| On/Off Valve Function | 3/2-Way, Closed, Monostable |
| On/Off Valve Type of Actuation | Electrically |
| On/Off Valve Operating Pressure | 4 … 10 bar /60 … 145 psi |
| On/Off Valve Nominal Flow Rate | 2600 … 7000 l/min |
| On/Off Valve Supply Voltage | 24 V DC |
| On/Off Valve Pneumatic Connection | G1/2 |
| On/Off Valve Material | Die-Cast Aluminum |
| On/Off Valve Ambient Temperature | -10 … 60 °C |

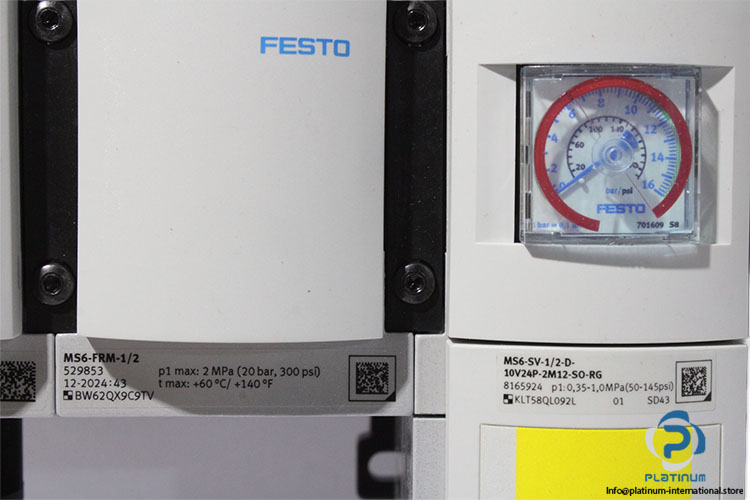

| Attachment 3 | FESTO 529853 BRANCHING MODULE |
| Branching Module 1 Manufacturer | FESTO |
| Attachment 3 Type | Branching Module |
| Branching Module 1 Model | MS6-FRM-1/2 |
| Branching Module 1 Part No. | 529853 |
| Branching Module 1 Fluid | Air |
| Branching Module 1 Working Pressure Max. | 2 MPa / 20 bar / 300 PSI |
| Branching Module 1 Standard Nominal Flow Rate In Main Flow Branching Module 1 Direction | 14,700 l/min |
| Branching Module 1 Standard Nominal Flow Rate Outlet at Top | 4,400 l/min |
| Branching Module 1 Standard Nominal Flow Rate Outlet Down | 4,600 l/min |
| Branching Module 1 Pneumatic Connection | G1/2 , Threaded |
| Branching Module 1 Supply Voltage | 250 V AC, 125 V DC |
| Branching Module 1 Fluid Temperature Range | -10 … 60°C |
| Attachment 4 | FESTO 8165924 SOFT START/QUICK EXHAUST VALVE |
| Quick Exhaust Valve Manufacturer | FESTO |
| Attachment 4 Type | Soft Start/Quick Exhaust Valve |
| Quick Exhaust Valve Model | MS6-SV-1/2-D-10V24P-2M12-SO-RG |
| Quick Exhaust Valve Part No. | 8165924 |
| Quick Exhaust Valve Series | MS |
| Quick Exhaust Valve Size | 6 |
| Quick Exhaust Valve Fluid | Air |
| Quick Exhaust Valve Function | 3/2, Closed, Monostable |
| Quick Exhaust Valve Structural Design | Piston Seat |
| Quick Exhaust Valve Lap | Underlap |
| Quick Exhaust Valve Actuation Type | Electrical |
| Quick Exhaust Valve Pilot Air Supply Port | Internal |
| Quick Exhaust Valve Operating Pressure | 3.5 ... 10 bar / 0.35 ... 1 MPa |
| Quick Exhaust Valve Nominal Flow Rate | 4300 l/min |
| Quick Exhaust Valve Supply Voltage | 24 V DC |
| Quick Exhaust Valve Pneumatic Connection | G1/2, G1 |
| Quick Exhaust Valve Electrical Connection | 4-Pin |
| Quick Exhaust Valve Electrical Connection Proximity Sensor | 2x Cables with Plugs 3-Pin M12 |
| Quick Exhaust Valve Cable Length | 0.3 m |
| Quick Exhaust Valve Material | Die-Cast Aluminum |
| Quick Exhaust Valve Seals Material | NBR |
| Quick Exhaust Valve Ambient Temperature | -10 … 50 °C |

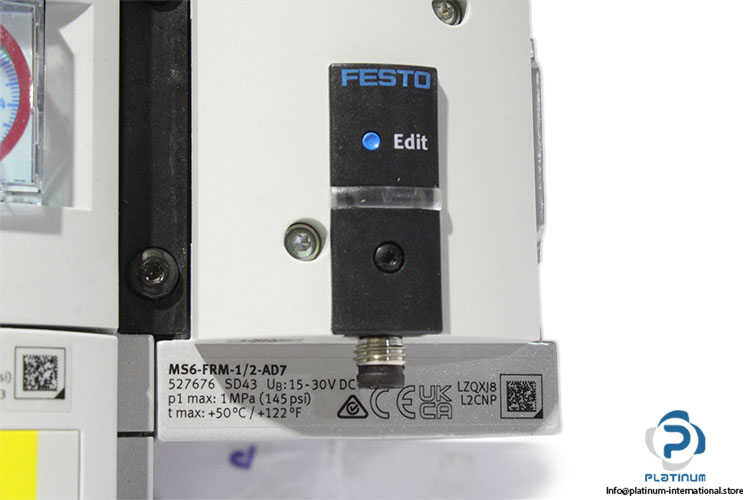

| Attachment 5 | FESTO 527676 BRANCHING MODULE |
| Branching Module 2 Manufacturer | FESTO |
| Attachment 5 Type | Branching Module 2 |
| Branching Module 2 Model | MS6-FRM-1/2-AD7 |
| Branching Module 2 MRN | 527676 |
| Branching Module 2 Fluid | Air |
| Branching Module 2 Working Pressure Max. | 1 MPa / 145 psi |
| Branching Module 2 Flow Rate in Main Flow Direction 1 – 2 | 3200 ... 14700 l/min |
| Branching Module 2 Flow Rate Outlet at Top | 2700 ... 6000 l/min |
| Branching Module 2 Flow Rate Outlet Down | 2800 ... 6400 l/min |
| Branching Module 2 Pneumatic Connection | G1/4, G1/8 |
| Branching Module 2 Supply Voltage | 250 V AC, 125 V DC |
| Branching Module 2 Fluid Temperature Range | -10 … 60°C |

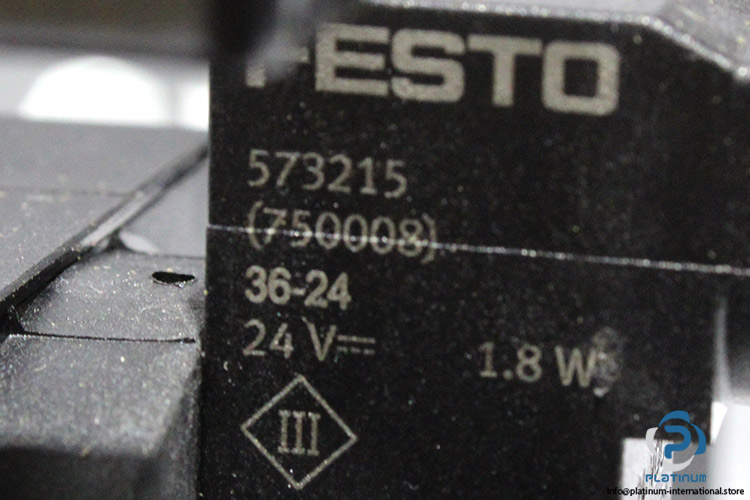

| Attachment 6 | FESTO 573215 SOLENOID COIL |
| Solenoid Coil 1 Manufacturer | FESTO |
| Attachment 6 Type | Solenoid Coil 1 |
| Solenoid Coil 1 Model | 573215 |
| Solenoid Coil 1 Part No. | 750008 |
| Solenoid Coil 1 Supply Voltage | 24 V DC |
| Solenoid Coil 1 Power Consumption | 1.8 W |

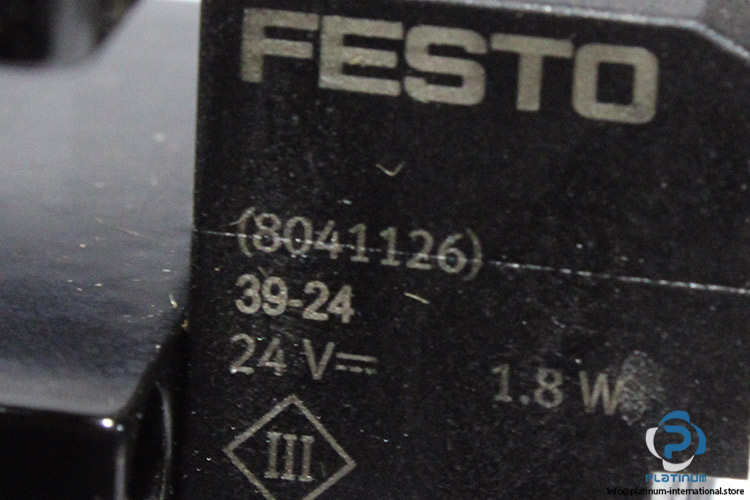

| Attachment 7 | FESTO 8041126 SOLENOID COIL |
| Solenoid Coil 2 Manufacturer | FESTO |
| Attachment 7 Type | Solenoid Coil |
| Solenoid Coil 2 Model | 8041126 |
| Solenoid Coil 2 Supply Voltage | 24 V DC |
| Solenoid Coil 2 Power Consumption | 1.8 W |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1092942 |
| Weight | 6,80 |
